CRL White Aluminum Screen Frame Channel 3/4" x 3/8" - 144"

• .020" (.51 mm) Wall Thickness
• Available in Five Finishes
• Several Finishes Available

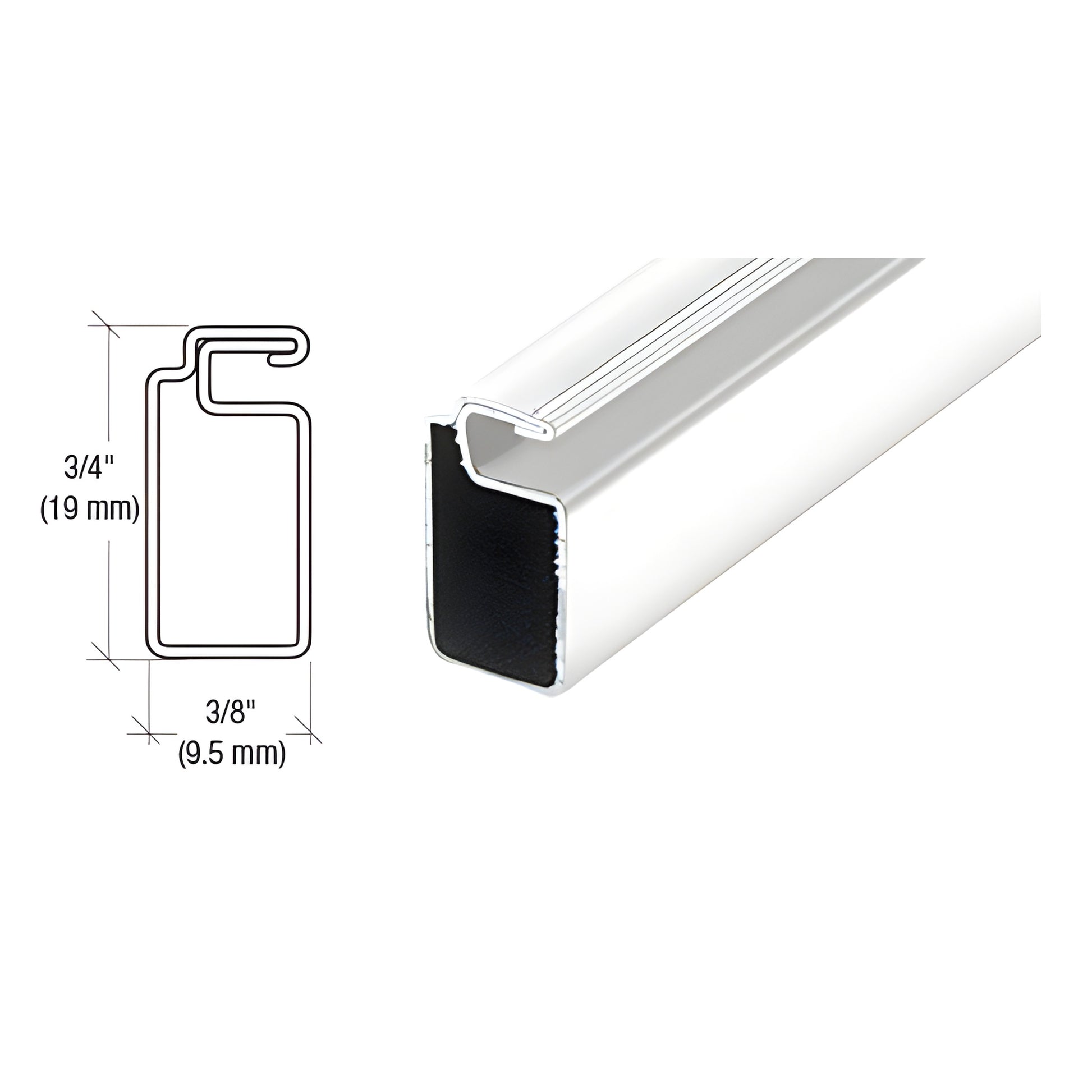

CRL 3/4" x 3/8" (19 x 9.5 mm) Screen Frame — SKU: WSF346W
This roll-formed aluminum screen frame has a .020" (.51 mm) wall and is cambered (slightly bowed) to retain screen tension after installation. Ideal for window and door screen repairs, it accepts CRL .150" (3.8 mm) spline and ships in stock lengths unless cut for UPS. Available in five finishes to match trim and replacement screen projects.


SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC106 or WSPC106 for Mitered Corners; SWSC38 for Square Cut Corners


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll forming process, actual stock thickness can vary by ±.002" (.05 mm). This tolerance is standard in the industry.
