CRL Mill Roll-Formed Aluminum Replacement Screen Frame 3/4x3/8, 12ft

• Wall Thickness: .020" (.51 mm)
• Cambered roll-formed aluminum for tension retention
• Accepts CRL .150" (3.8 mm) spline; compatible with WSC106, WSPC106, SWSC38 corners

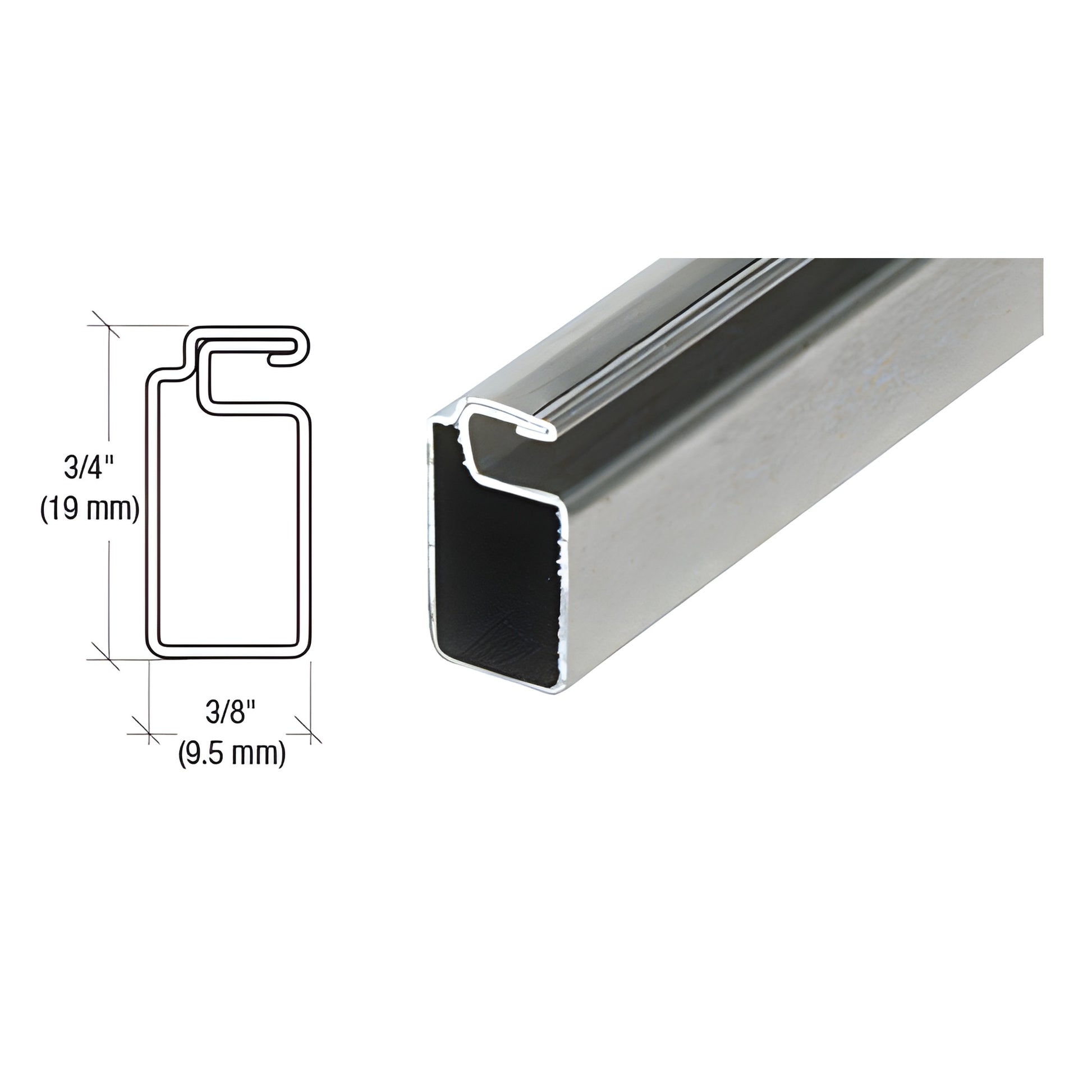

This CRL 3/4" x 3/8" (19 x 9.5 mm) Screen Frame (SKU: WSF346M) is roll-formed from .020" (.51 mm) aluminum and features a cambered profile to keep screen mesh taut after installation. Designed for aluminum screen frame applications, it accepts CRL .150" spline and works with WSC106 aluminum corners, WSPC106 plastic mitered corners, or SWSC38 square-cut plastic corners for flexible framing options.

SPECIFICATIONS:
Material: Roll-formed aluminum
Wall Thickness: .020" (.51 mm)
Spline Size: .150" (3.8 mm)
Compatible Corners: WSC106 or WSPC106 (mitered); SWSC38 (square cut)

Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS. Due to coil stock tolerances and roll-forming stretch, actual thickness may vary ± .002" (.05 mm); this is standard industry practice.


Buy now to get durable, cambered aluminum screen framing that holds screen tension and fits .150" spline—perfect for residential and commercial screen repair projects.
