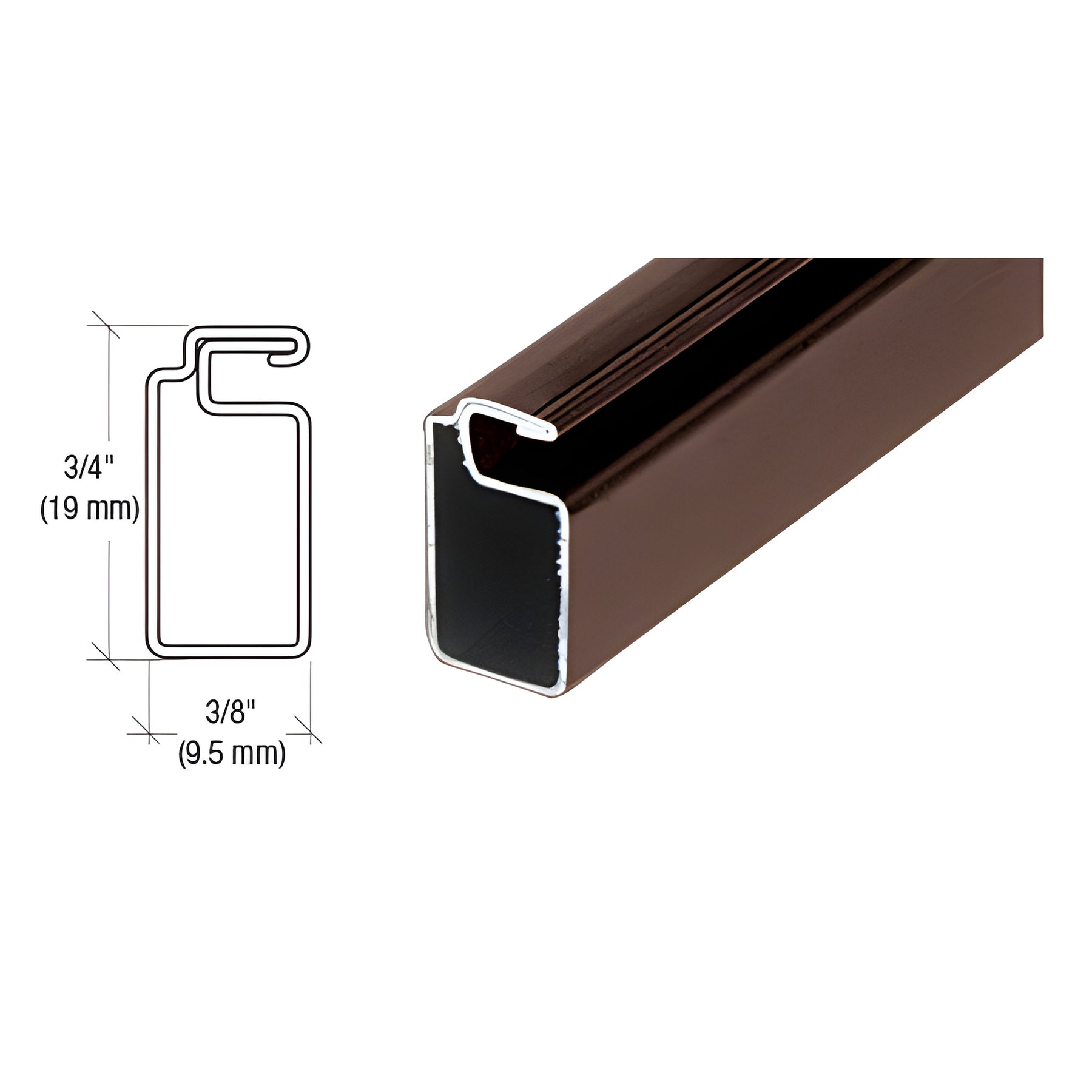

CRL Bronze 3/4x3/8 Roll-Formed Aluminum Window Screen Frame 144in

• .020" (.51 mm) Wall Thickness
• Available in five finishes
• Cambered roll-formed aluminum for screen tension retention

This CRL 3/4" x 3/8" (19 x 9.5 mm) Screen Frame is roll-formed from .020" (.51 mm) aluminum and is cambered (slightly bowed) to maintain screen tension after installation. Designed for window and door screening applications, this aluminum screen frame accepts CRL .150" (3.8 mm) spline and is compatible with mitered or square-cut corner assemblies. Ideal long-tail keywords: 3/4 x 3/8 screen frame aluminum, cambered aluminum screen frame, .150 spline screen frame.


SPECIFICATIONS:
SKU: WSF346BRZ
Material: Roll-formed aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC106 or WSPC106 for mitered corners; SWSC38 for square-cut corners


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll-forming process, actual thickness can vary ± .002" (.05 mm). This tolerance is standard in the industry.

Order the CRL WSF346BRZ cambered aluminum screen frame today to ensure a secure, tensioned screen fit.
