Product Details
- Typical Applications Include Inset Flush-Mounting of Screens for Patio or Porch Installations
- Installs and Removes Easily with Screen Clips
- .020" (.51 mm) Wall Thickness
- Matching Square Cut Plastic Lip Corners Available

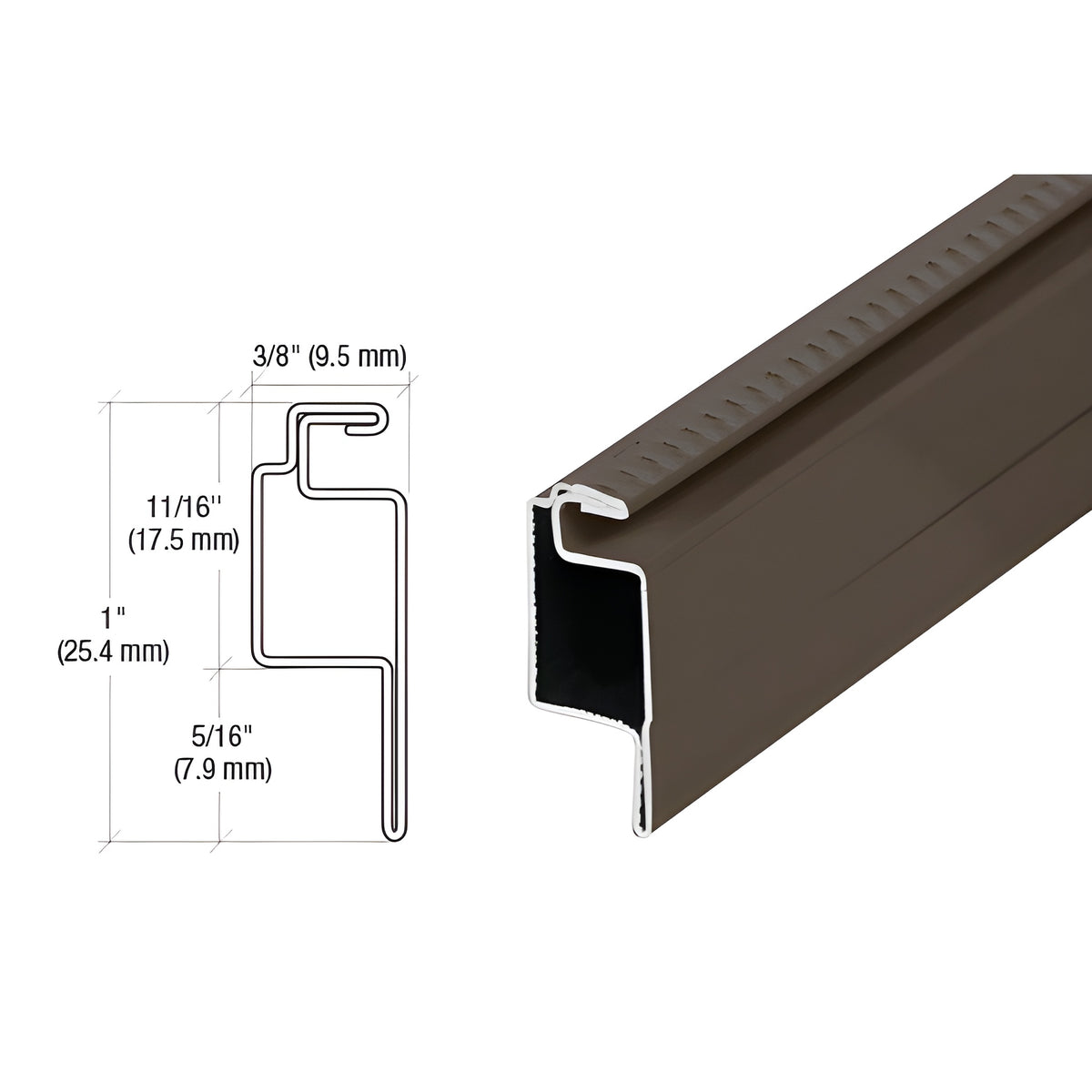

Our 5/16" (7.9 mm) Lip Frame is made from roll formed aluminum and allows for inset mounting within the framed opening. Spline pocket is on the same side as the spline groove. Frame is 3/8" (10 mm) thick.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .140" (3.6 mm)
Uses Corners: WSC117 for Mitered
Corners; SWSCL7 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
