CRL Bronze Roll-Formed Replacement Screen Frame 3/4" x 5/16" - 144"

• For sliding windows and storm windows
• .020" (.51 mm) wall thickness aluminum
• Multiple finishes available

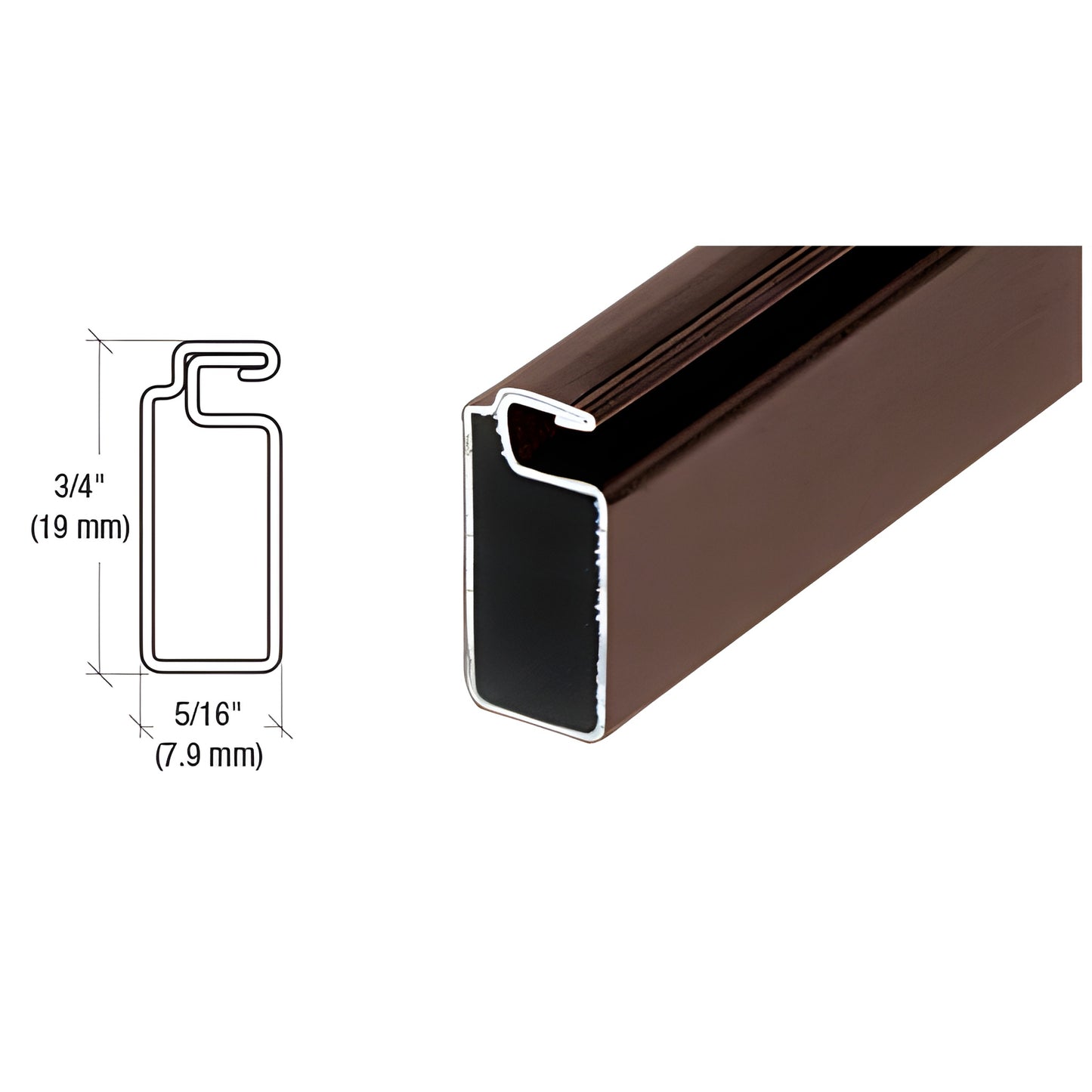

CRL 3/4" x 5/16" (19 x 7.9 mm) Screen Frame — roll‑formed aluminum screen frame designed for sliding and storm windows. The frame is cambered (slightly bowed) to retain screen tension and accepts CRL .150" spline. Compatible corner options include WSC105 aluminum corners or WSPC105 plastic corners for mitered frames, and SWSC516 series square cut plastic corners for square-cut assemblies. SKU: WSF345BRZ.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC105 or WSPC105 for mitered corners; SWSC516 for square cut corners

Product Warning:

Stock lengths must ship via common carrier unless specifically cut for UPS. Due to coil stock tolerances and roll forming stretch, actual thickness can vary ±.002" (.05 mm). Recommended spline size varies from .150" to .165" diameter depending on spline groove width, spline diameter, and screen wire type.

Order this durable CRL aluminum screen frame (WSF345BRZ) today to fit sliding and storm window applications.
