CRL Mill Aluminum 3/4 in x 5/16 in Roll-Formed Screen Frame 144 in

• For Sliding Windows and Storm Windows
• .020" (.51 mm) Wall Thickness
• Several Finishes Available

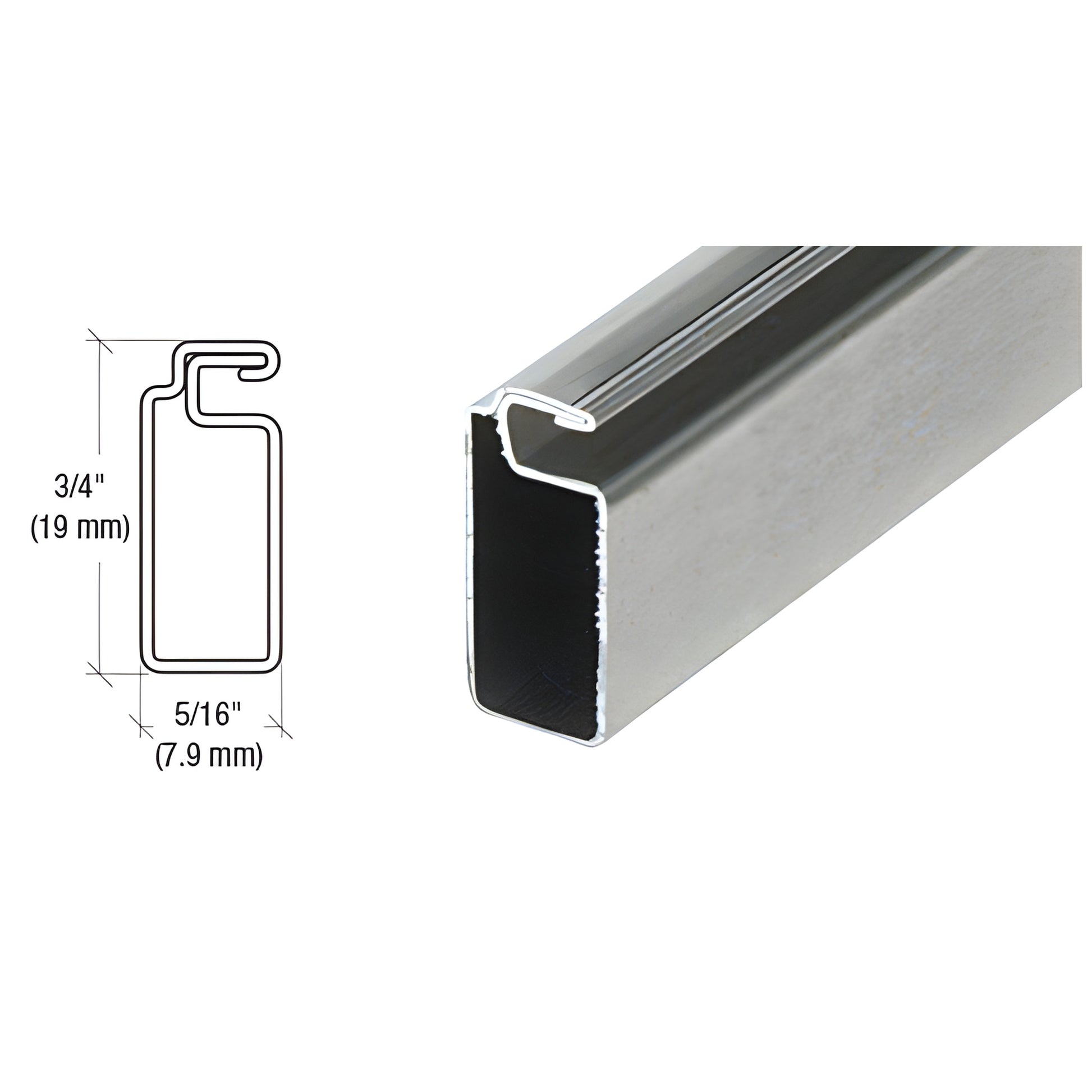

This CRL 3/4" x 5/16" (19 x 7.9 mm) Screen Frame (SKU: WSF345M) is roll-formed from .020" (.51 mm) aluminum and is cambered (slightly bowed) to retain screen tension after installation. Designed for sliding windows and storm windows, it accepts CRL .150" spline and works with mitered or square-cut corners for easy assembly. Choose WSC105 aluminum corners or WSPC105 plastic corners for mitered frames, or SWSC516 series square cut plastic corners for square-cut frames.

Key features & benefits:

• Cambered roll-formed aluminum holds screen tension—reduces sagging over time
• Compatible with standard .150" spline—works with common spline and screen wire types
• Multiple finishes available—match storm and sliding window frames

SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .020" (.51 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC105 or WSPC105 for mitered corners; SWSC516 for square cut corners

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll forming process, actual stock thickness can vary by ±.002" (.05 mm). This is standard industry practice. Recommended spline size for this frame varies from .150" to .165" diameter depending on spline groove width, spline diameter, and the type of screen wire used.

Order the CRL 3/4" x 5/16" screen frame (WSF345M) today to retrofit or build durable sliding and storm window screens.
