CRL White Roll-Formed Screen Frame 3/4" x 5/16" - 12 ft

• For sliding windows and storm windows — ideal replacement screen frame
• .020" (.51 mm) wall thickness; cambered to retain screen tension
• Several finishes available

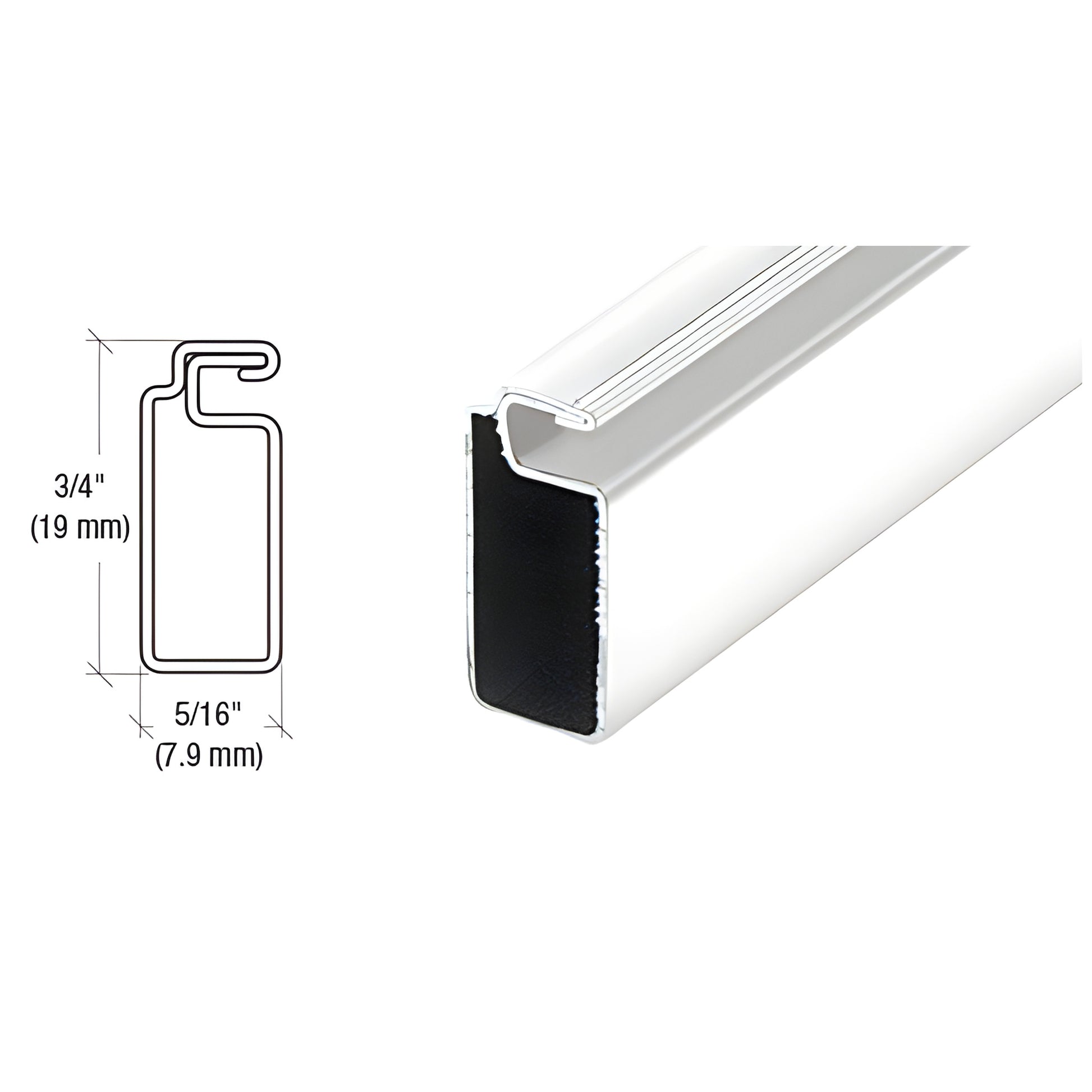

This CRL 3/4" x 5/16" (19 x 7.9 mm) Screen Frame (SKU: WSF345W) is roll formed from .020" (.51 mm) aluminum and is cambered (slightly bowed) to maintain screen tension after installation. Designed for sliding window and storm window screen repairs and custom screen builds, this aluminum frame accepts CRL .150" spline and works with mitered or square-cut corner options for a clean, durable finish. Use WSC105 aluminum corners or WSPC105 plastic corners for mitered frames, or SWSC516 series square-cut plastic corners for square-cut frames.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall thickness: .020" (.51 mm)
Uses spline size: .150" (3.8 mm) — recommended spline diameter may vary from .150" to .165" depending on groove width, spline type, and screen wire
Uses corners: WSC105 or WSPC105 for mitered corners; SWSC516 for square-cut corners

Product Warning:

Stock lengths must ship by common carrier unless specifically cut for UPS shipment. Due to coil stock tolerances and roll-forming stretch, actual thickness may vary by ±.002" (.05 mm). This variation is standard in the industry. The recommended spline size varies from .150" to .165" diameter based on spline groove width, spline diameter, and screen wire type.


Order SKU WSF345W now to get durable, cambered aluminum screen framing for sliding and storm windows.
