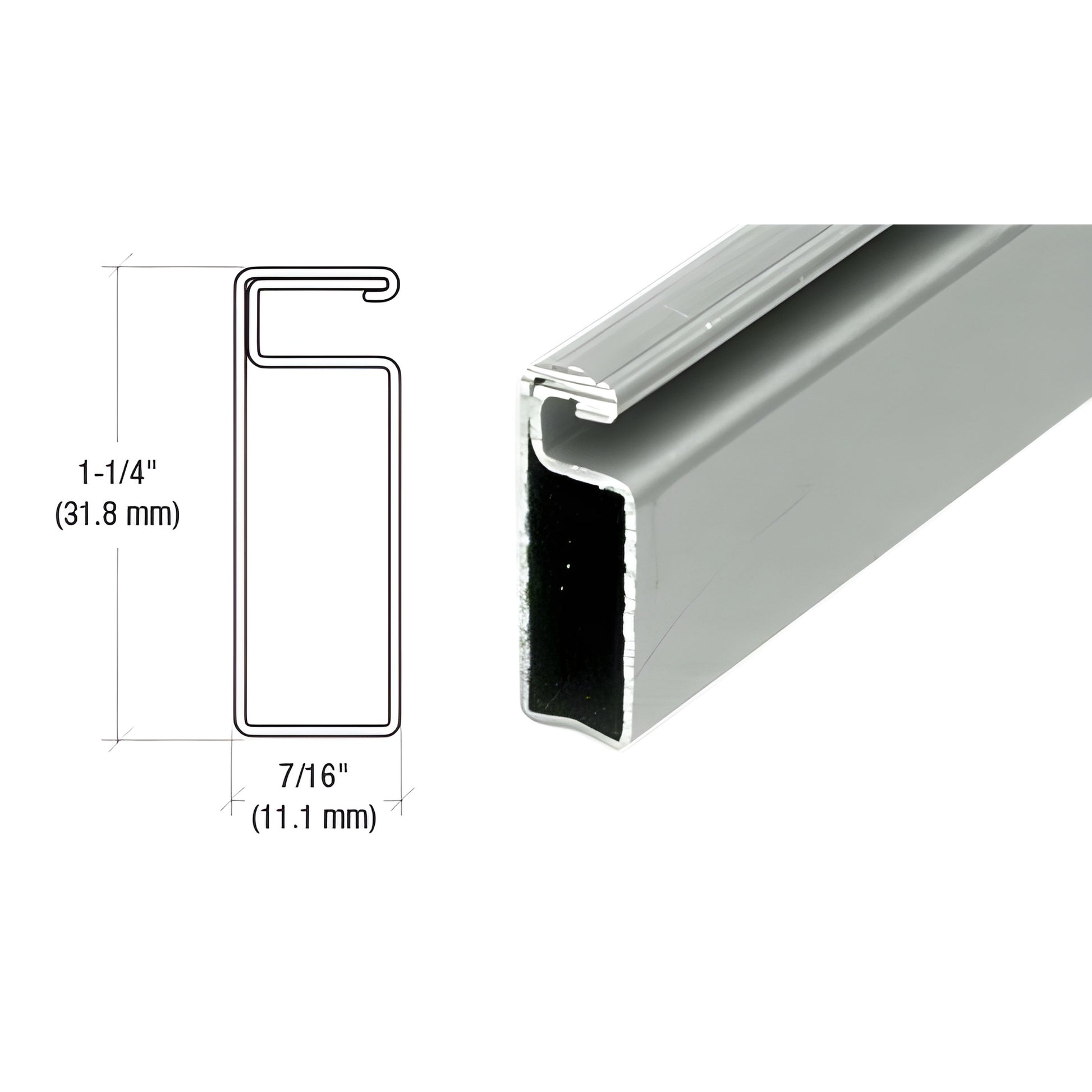

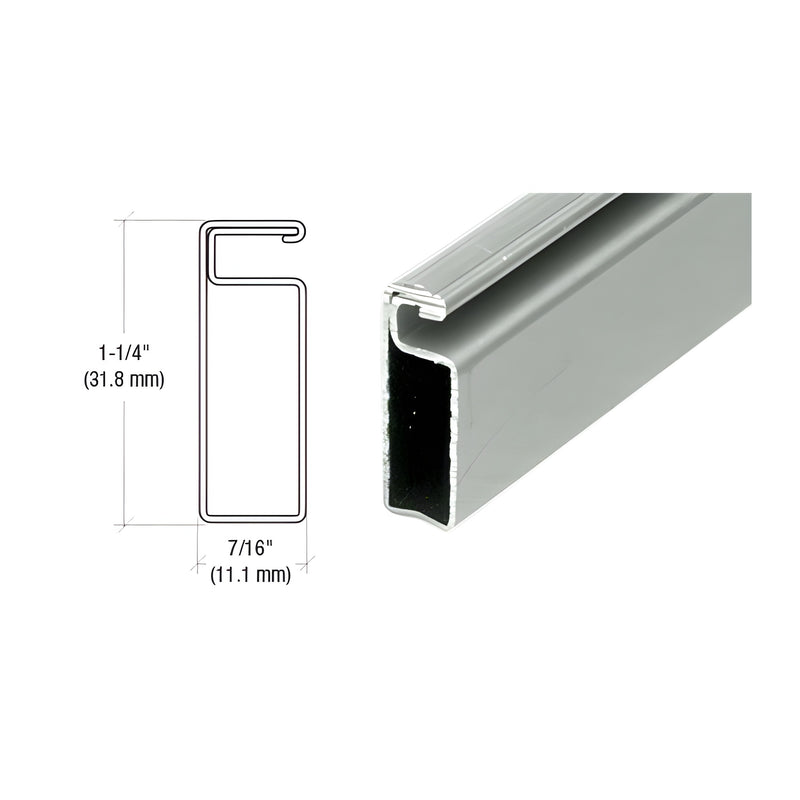

CRL Roll-Formed 1-1/4 in x 7/16 in Aluminum Screen Frame 144 in

• Typical applications: patio screens, porch screens, and commercial windows
• .040" (1 mm) wall thickness
• Designed for oversized screens and heavy-duty roll-formed frames

This CRL 1-1/4" x 7/16" (31.8 x 11 mm) Screen Frame (SKU: WSF1257M) is roll formed from .040" (.040 mil) thickness aluminum and is cambered (slightly bowed) to retain screen tension after installation. It accepts CRL .185" spline and uses WSC114 aluminum corners for mitered framed corners, making it ideal for oversized patio and porch screen replacements as well as commercial window screening.


SPECIFICATIONS:
Material: Roll formed aluminum
Wall thickness: .040" (1 mm)
Spline size accepted: .185" (4.7 mm)
Corners: WSC114 aluminum corners for mitered corners


Product Warning:

Stock lengths must ship via common carrier unless specifically cut for UPS. Due to coil stock tolerances and stretch in roll forming, actual thickness can vary by ±.002" (.05 mm); this is standard in the industry.
