CRL White 1/2" Roll Formed Aluminum Lip Screen Frame - 144"

• Typical Applications Include Inset Flush-Mounting of Screens for Patio or Porch Installations
• Installs and Removes Easily with Screen Clips
• .025" (.63 mm) Wall Thickness
• Several Finishes Available

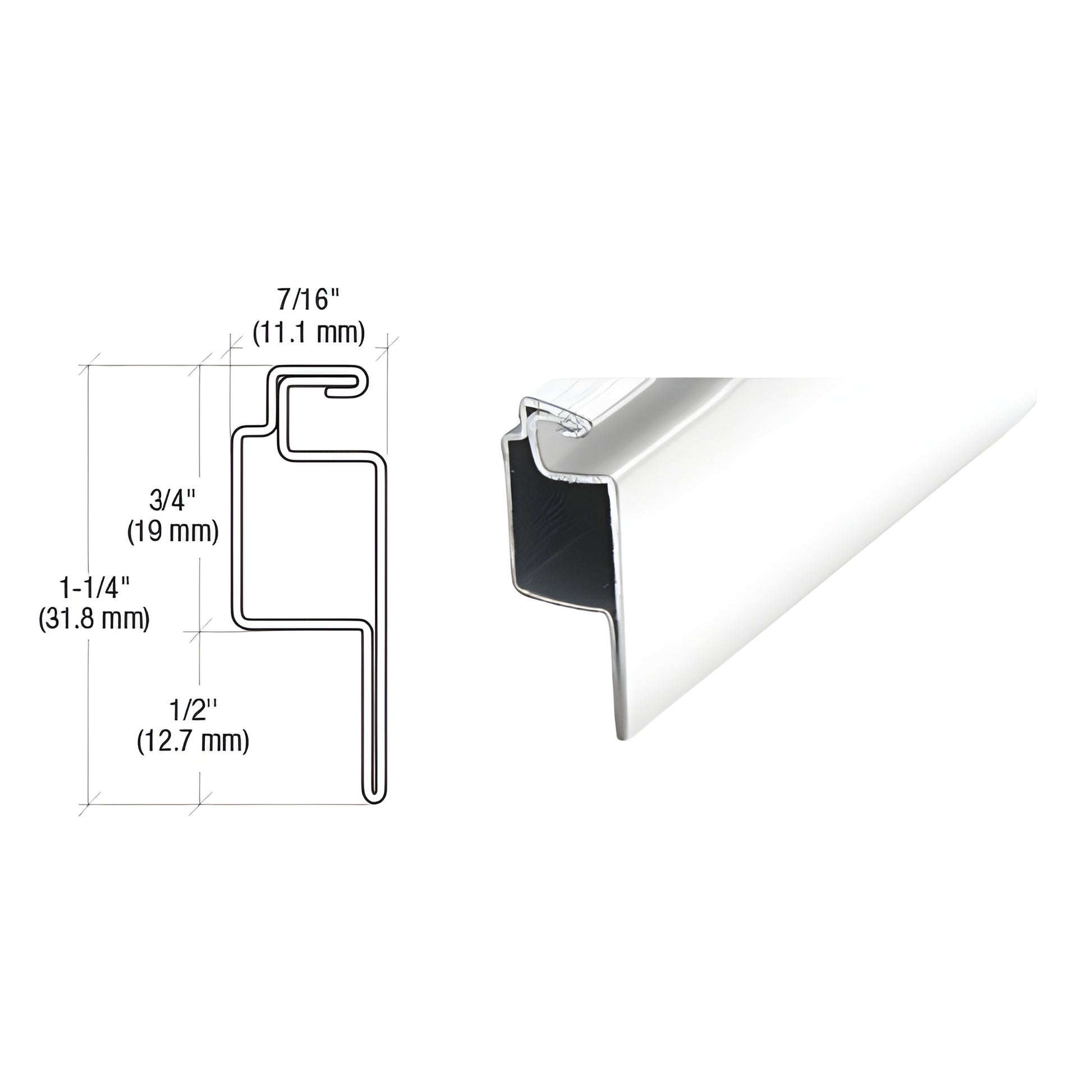

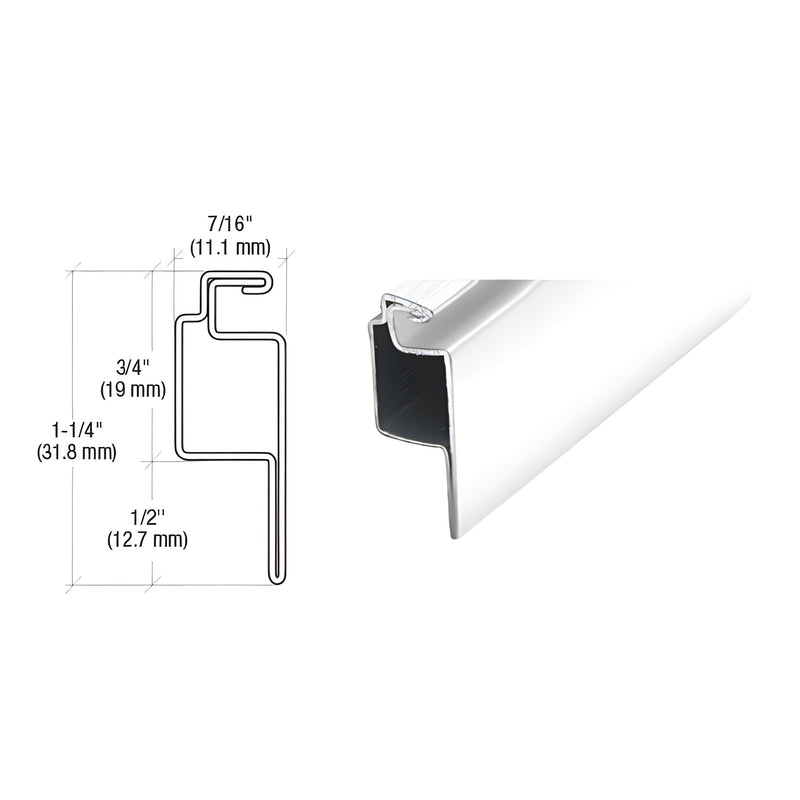

CRL 3/4" x 7/16" (19 x 11 mm) box type

Screen Frame

has a 1/2" (12.7 mm) lip on the facing side. It's made of .025 mil (.63 mm) thickness roll formed aluminum. Lip Frame is usually used when no back-stop is available for a box type frame. Choose from three colors. This frame is cambered (slightly bowed) to retain screen tension when installed.

Material: Roll Formed Aluminum

Wall Thickness: .025" (.63 mm)

Uses Spline Size: .185" (4.7 mm)

Uses Corners: WSC111 for Mitered Corners

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
