CRL White Aluminum Roll-Formed Screen Frame 1 in x 7/16 in 146 in

• Typical applications: sliding windows, storm windows, and screen repair
• 0.017" (0.43 mm) wall thickness — roll formed aluminum
• Several finishes available; accepts .170" spline

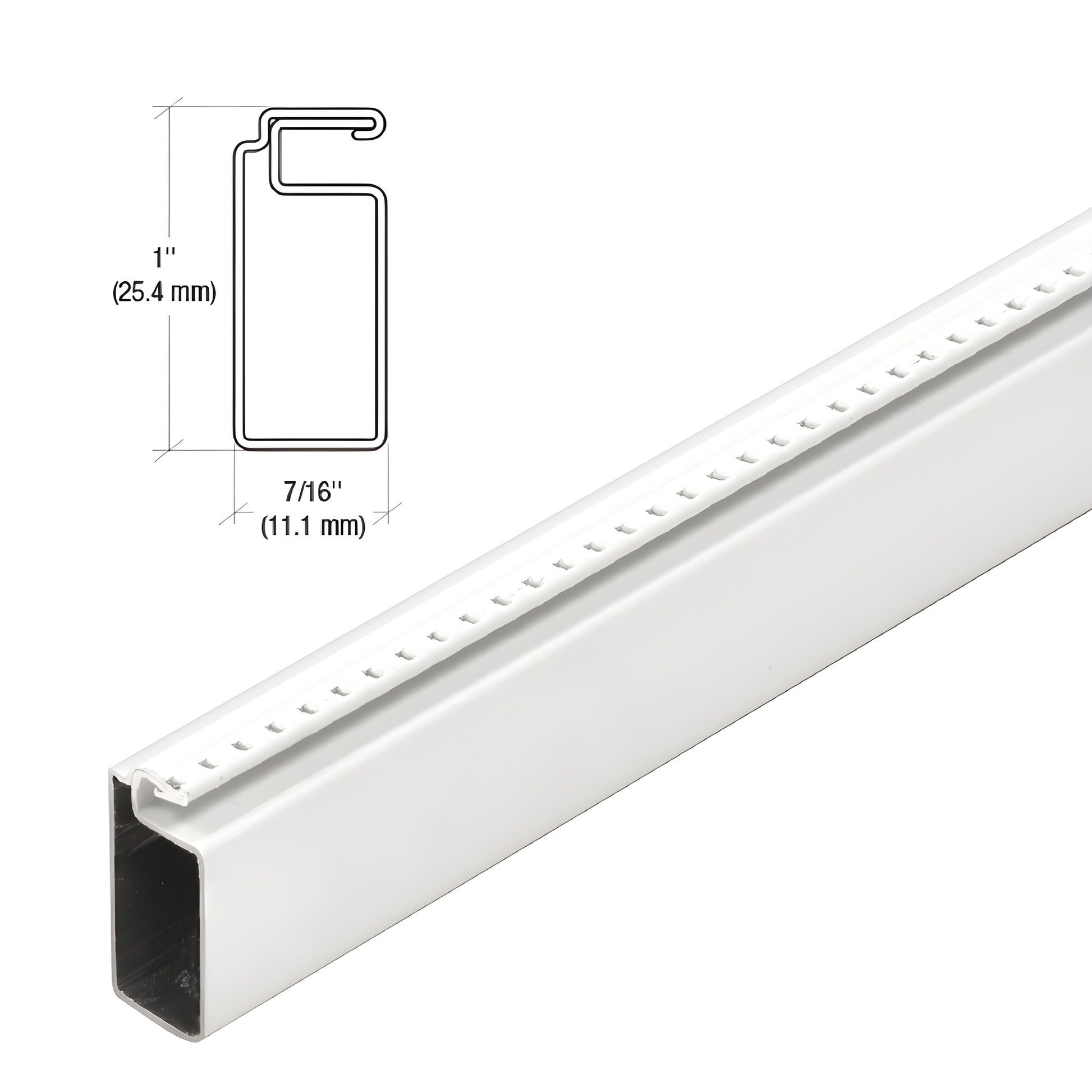

This CRL 1" x 7/16" (25.4 x 11 mm) screen frame (SKU: WSF1716W) is a roll-formed aluminum screen frame extrusion with a .017" (.43 mm) wall thickness. The profile features a knurled lip and a cambered (slightly bowed) shape to retain screen tension after installation. Designed for sliding and storm window applications, it accepts CRL .170" spline and pairs with WSC128 aluminum corners or SWSC1716 square-cut plastic corners for square-cut frame assemblies.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .017" (.43 mm)
Uses Spline Size: .170" (4.32 mm)
Uses Corners: WSC128 or SWSC1716 for square-cut corners


Product Warning:

Stock lengths must ship via common carrier unless specifically cut for UPS shipment.

Because of coil-stock tolerances and stretch during roll forming, actual thickness can vary by ±.002" (.05 mm). This industry-standard tolerance may affect fit for precision applications.

Need help selecting the right screen frame or corners? Contact CRL or add SKU WSF1716W to your cart to order now.
