Product Details
- Typical Applications Include Sliding Windows and Storm Windows
- 0.017" (0.43 mm) Wall Thickness
- Several Finishes Available

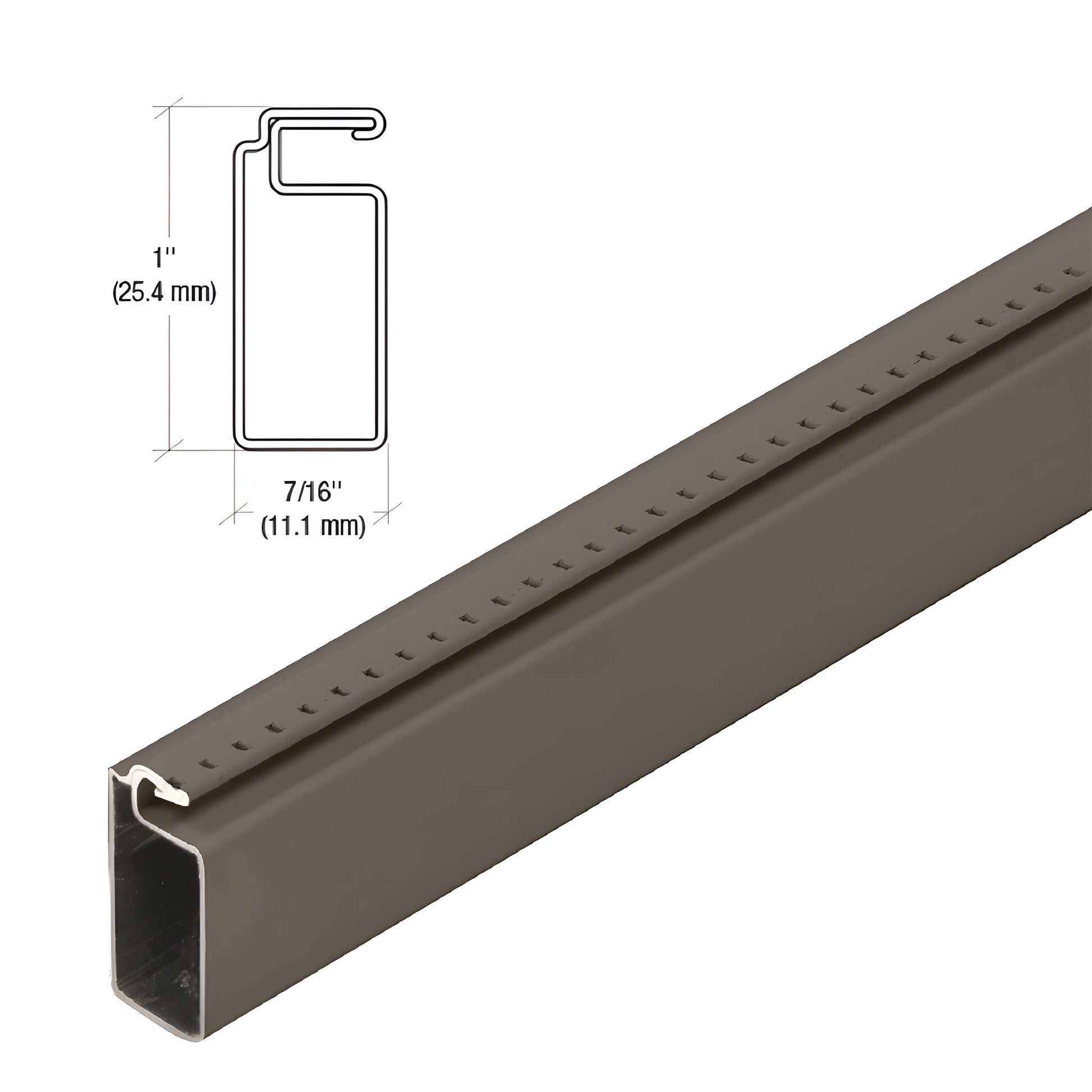

This CRL 1" x 7/16" (25.4 x 11 mm) Screen Frame is made of .017 mil thick roll formed aluminum. It has a knureld lip and is cambered (slightly bowed) to retain screen tension when installed. It will accept CRL .170" Spline. You can use either WSC128 Aluminum Corners or SWSC1716 Series Square Cut Plastic Corners for a square cut frame application.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .017" (.43 mm)
Uses Spline Size: .170" (4.32 mm)
Uses Corners: WSC128 or SWSC1716 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.
