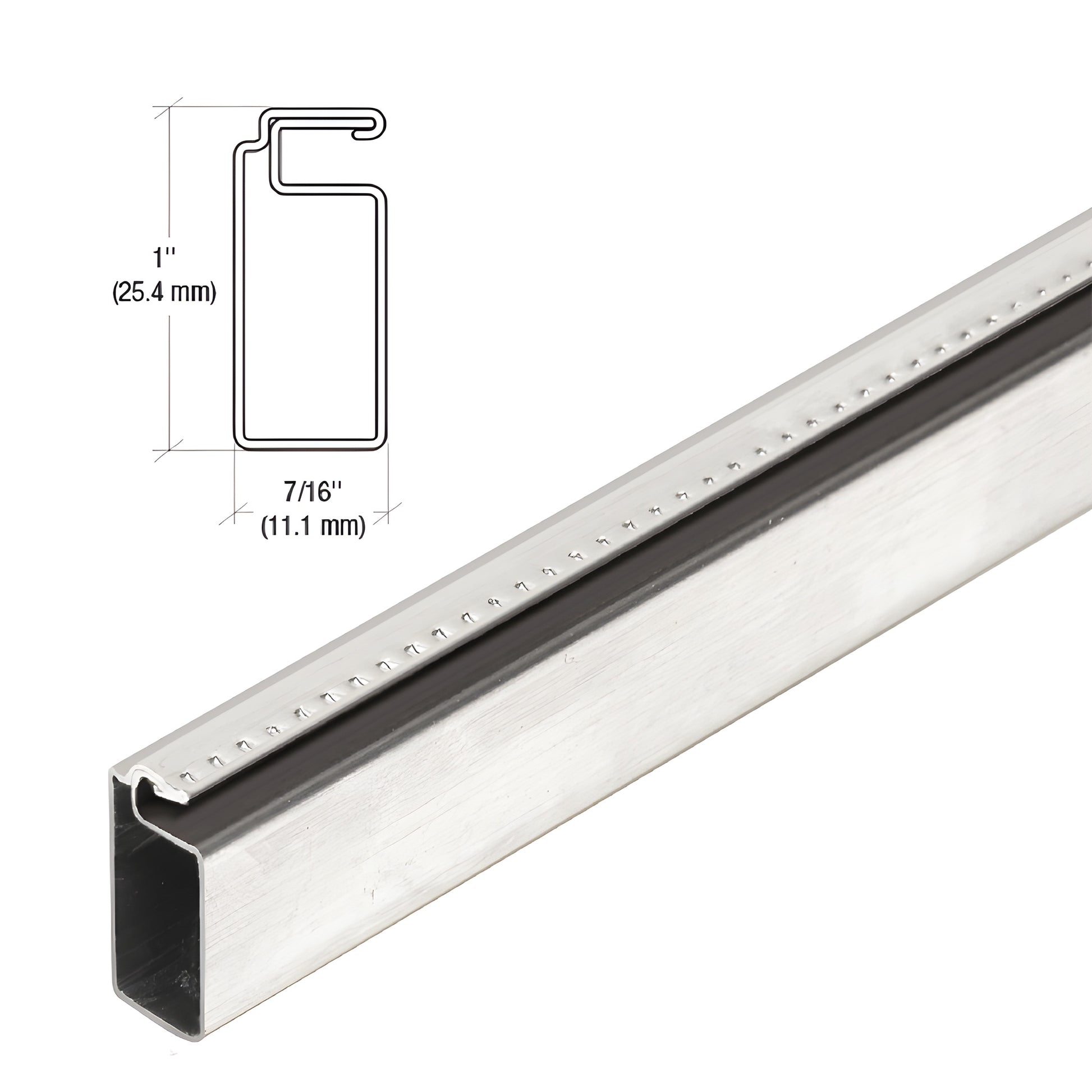

CRL Mill 1" x 7/16" Roll-Formed Screen Frame Channel 146"

• Typical applications: sliding windows, storm windows, and screen replacements
• 0.017" (0.43 mm) wall thickness — roll formed aluminum
• Several finishes available

This CRL 1" x 7/16" (25.4 x 11 mm) screen frame (SKU WSF1716) is roll formed from .017" (.43 mm) aluminum with a knurled lip and cambered design to maintain screen tension after installation. It accepts CRL .170" spline (4.32 mm). Use WSC128 aluminum corners or SWSC1716 series square cut plastic corners for square-cut frame assemblies.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .017" (.43 mm)
Uses Spline Size: .170" (4.32 mm)
Uses Corners: WSC128 or SWSC1716 for square cut corners


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.

Need this 1" x 7/16" CRL screen frame (WSF1716) in a specific finish or cut-to-size? Contact us or add to cart to order today.
