CRL White 3/4 in x 7/16 in Roll-Formed Screen Frame Channel 146 in

• Typical applications: sliding windows, storm windows, and aluminum screen frame repairs
• 0.017" (0.43 mm) wall thickness — roll formed aluminum
• Multiple finishes available

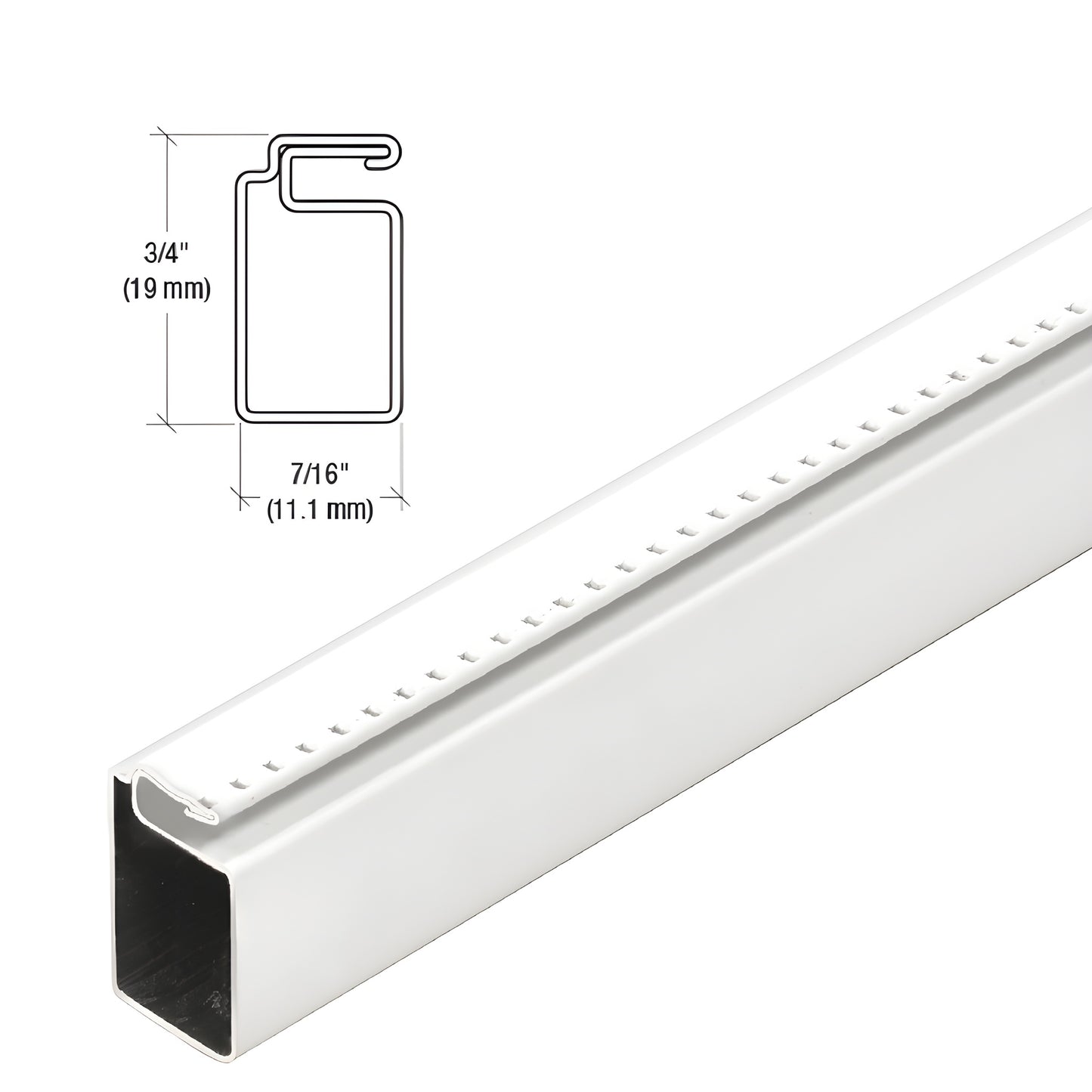

This CRL 3/4" x 7/16" (19.05 x 11 mm) screen frame (SKU: WSF34716W) is roll formed from .017" (.43 mm) aluminum with a knurled lip and cambered (slightly bowed) profile to retain screen tension. Accepts CRL .165" spline for professional screen installations. Compatible corner hardware: WSC127 aluminum corners or WSPC107 plastic corners for mitered frames, and SWS34716 series square cut plastic corners for square-cut frames.

SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .017" (.43 mm)
Uses Spline Size: .165" (4.2 mm)
Uses Corners: WSC127 or WSPC107 for mitered corners; SWS34716 for square cut corners

Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.
Due to coil stock tolerances and stretch in the roll forming process, actual thickness can vary ±.002" (.05 mm). This tolerance is standard in the industry.

Order the CRL WSF34716W 3/4" x 7/16" aluminum screen frame for durable, professional-grade screen repairs and installations — add to cart or contact us for custom cuts.
