CRL Mill 5" x 5" Offset Base Plate
Item# BP05M
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.01
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

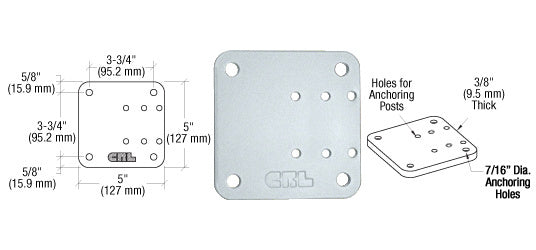

- Base Plate Length5 in. (127 mm)
- Base Plate Thickness3/8 in. (10 mm)
- Base Plate Width5 in. (127 mm)
- Finish/Color:Mill
- MaterialAluminum
- Available in Several Attractive Colors
- Available for Standard and 45 Degree Post
- For Use with All Standard Railings
- For 2-3/8" (60 mm) Square Aluminum Posts
CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
