- Most popular retrofit storm window system (SKU: BS1M)
- Stronger than magnetic frames, more durable than vinyl
- No adhesive required—pre-installed vinyl gasket secures glass or acrylic

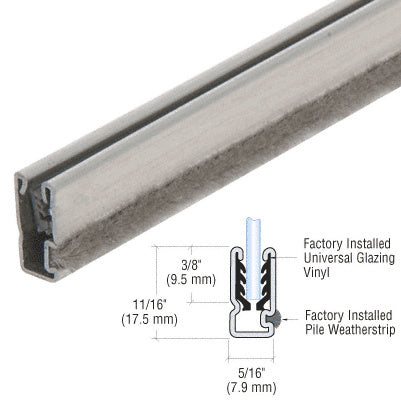

CRL-Sash Universal Storm Window Frame is an all-in-one, roll-formed aluminum storm window sash for fabricating secure retrofit storm window and door panels. The frame accepts single or double strength glass or acrylic up to 1/8" (3 mm) thick, making it ideal for interior or exterior recessed or surface-mounted panels. A pre-installed vinyl gasket holds the glazing—no messy adhesives—while built-in pile weatherstripping reduces air infiltration between the panel and window frame. The rigid aluminum body keeps panels lightweight for easy seasonal installation and removal.
Two Ways to Fabricate Miter Cut Fabrication Miter cut fabrication: miter the frame to the desired width and height, insert Cat. No.
1795 corners, wrap the frame around the glass or acrylic panel, then use Cat. No.
S1936 tool to crimp the frame onto the corner dimples for a tight fit.
Square Cut Fabrication Square cut fabrication: square cut the frame 1-7/16" (36.5 mm) less than the desired frame width and height, insert the
Square Sash Corners, wrap the frame around the glazing, and the panel is complete.
Lengths & Shipping CRL-Sash Universal Storm Window Frame is supplied in 12'-2" (3.66 m) lengths. For UPS shipment, material must be cut to 96" (2.44 m).
Product Warning:Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor calibration.
Order the CRL-Sash Universal retrofit storm window frame (SKU: BS1
