CRL Night Service Window - Security Counter/Drive-Thru Window
Item# SW101N
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Code Compliances
UL 752
Deal Tray Included
Integral Deal Tray
Finish/Color
Brushed Stainless Steel
Frame Depth
4-3/4 in. To 9-1/4 in. (121 mm To 235 mm)
Frame Width
2 in. (50.8 mm)
Glazed
Yes
Glazing Thickness
1-1/4 in. (32 mm)
Glazing Type
Acrylic
Height
21-5/8 in. (549.3 mm)
Material
Stainless Steel
Protection Level
1
Shelf Depth
18 in. (457.2 mm)
Shelf Thickness
2 in. (50.8 mm)
Shelf Width
14-3/16 in. (360.4 mm)
Surround Sound Feature
No
Usage
Interior,Exterior
Width
18-3/16 in. (462 mm)
- Glazed with 1-1/4" (32 mm) Bullet Resistant Level 1 Acrylic
- Stainless steel shelf with Non-Ricochet Bullet Resistant tray for passing cash, cards, keys
- Level 1 protection for teller and personnel
- Assembled and ready-to-install

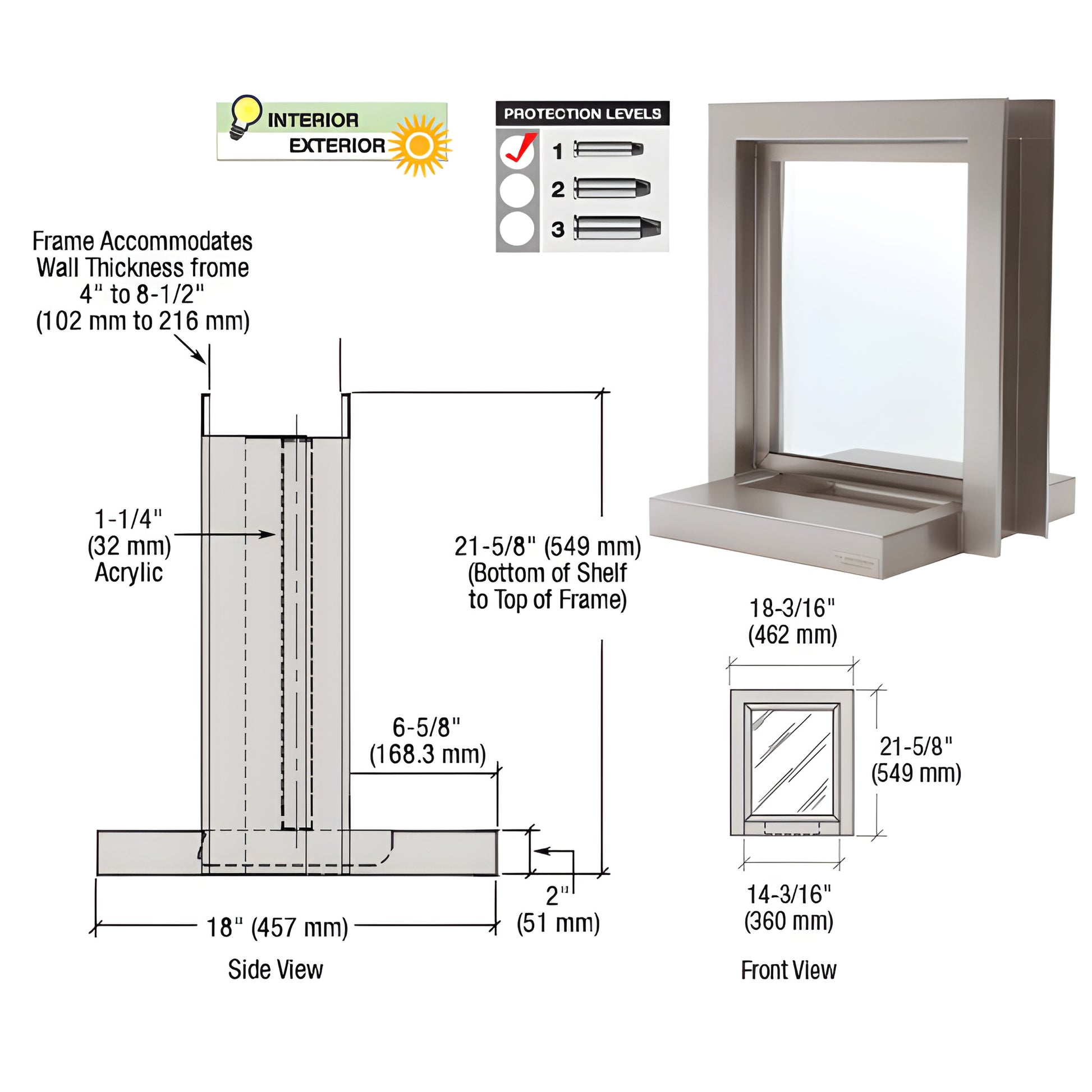

Our CRL Night Service Window (SKU: SW101N) is designed for motel registration, 24-hour service stations, and other low-profile transaction points. A 16-gauge stainless steel housing holds 1-1/4" (32 mm) Level 1 bullet resistant acrylic glazing. The unit includes a 16-gauge stainless steel shelf (14-3/16" / 360 mm wide × 18" / 457 mm deep × 2" / 51 mm thick) with a Non-Ricochet Bullet Resistant tray for safe transfer of cash, credit cards, and keys. The complete assembly slides into a wall opening approximately 14-3/4" (375 mm) wide × 20" (508 mm) high, with a 2" (51 mm) perimeter flange. Standard units do not include a speak-thru; voice transmission occurs via the cash tray. For exterior installations, an overhang or awning is recommended.
SPECIFICATIONS:
Materials: 16 gauge stainless steel; clear acrylic
Glazing: 1-1/4" (32 mm) Level 1 acrylic (bullet resistant)
Finish: Brushed stainless steel #4 finish
Deal Tray: Level 1 protection, Non-Ricochet design
Instructions Included
Product Warning:
If used outdoors, install under an overhang or awning—this unit has no drainage holes and may accumulate water if exposed to direct rain.
Most shipping weights are approximate and have not been verified. If exact shipping weight or costs are required to complete your order, please contact CRL Customer Service before submitting your order. Product images are representative; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.
For custom sizes, installation guidance, or to order SKU SW101N, contact CRL or your authorized distributor today.
