- Low profile 1/8" end caps — ideal for bypass sliding doors and glass-mounted applications
- Several sizes in our most popular finishes
- Heavy 3/4" (19 mm) diameter brass tubular construction (1.5 mil thick)
- No metal washers for a sleek, continuous profile; plastic washers protect glass-to-metal contact
- Compatible with monolithic tempered glass panels
The

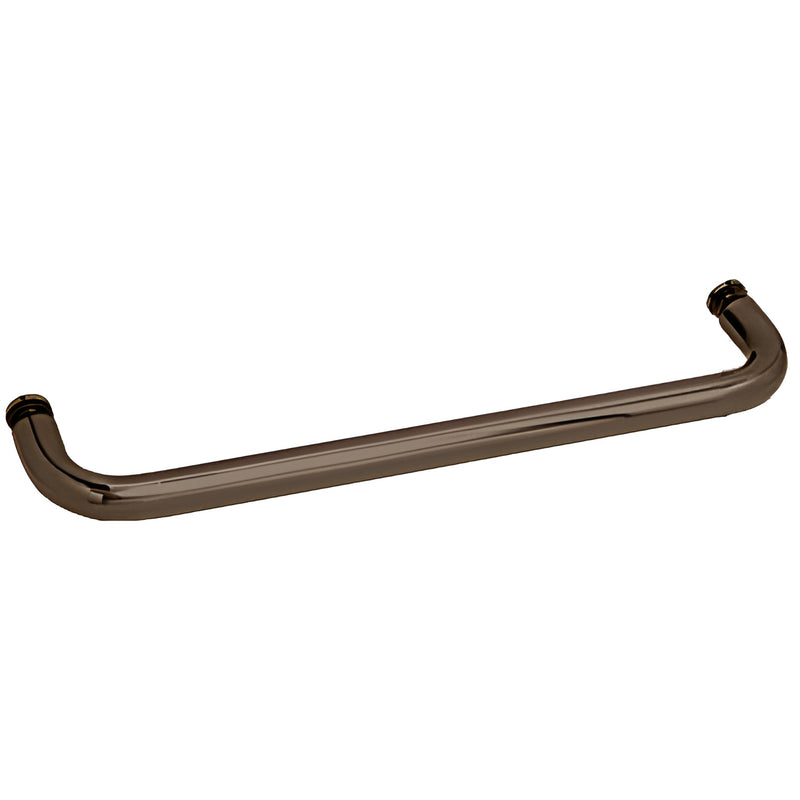

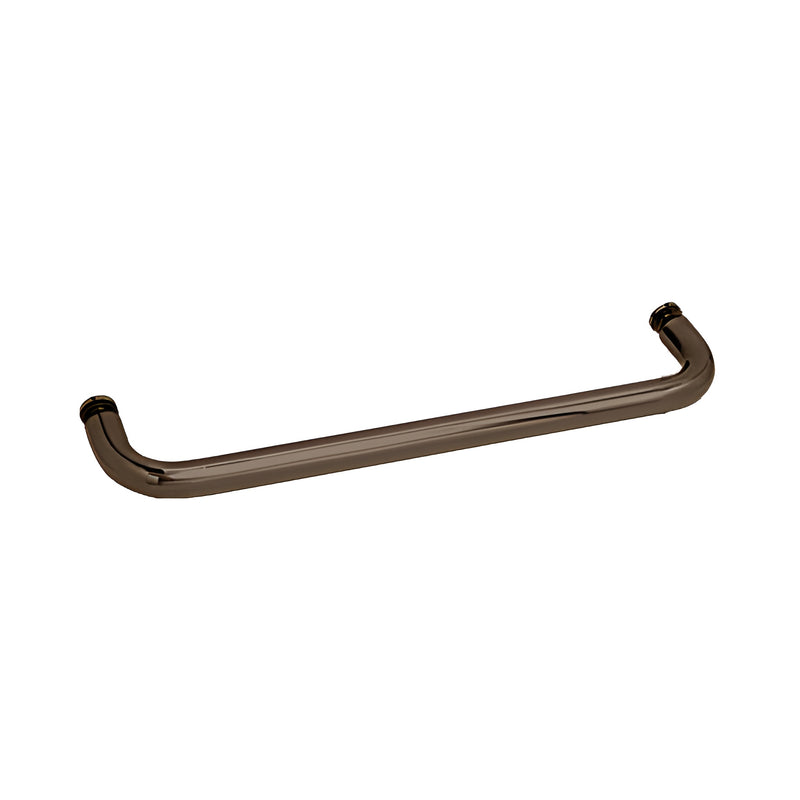

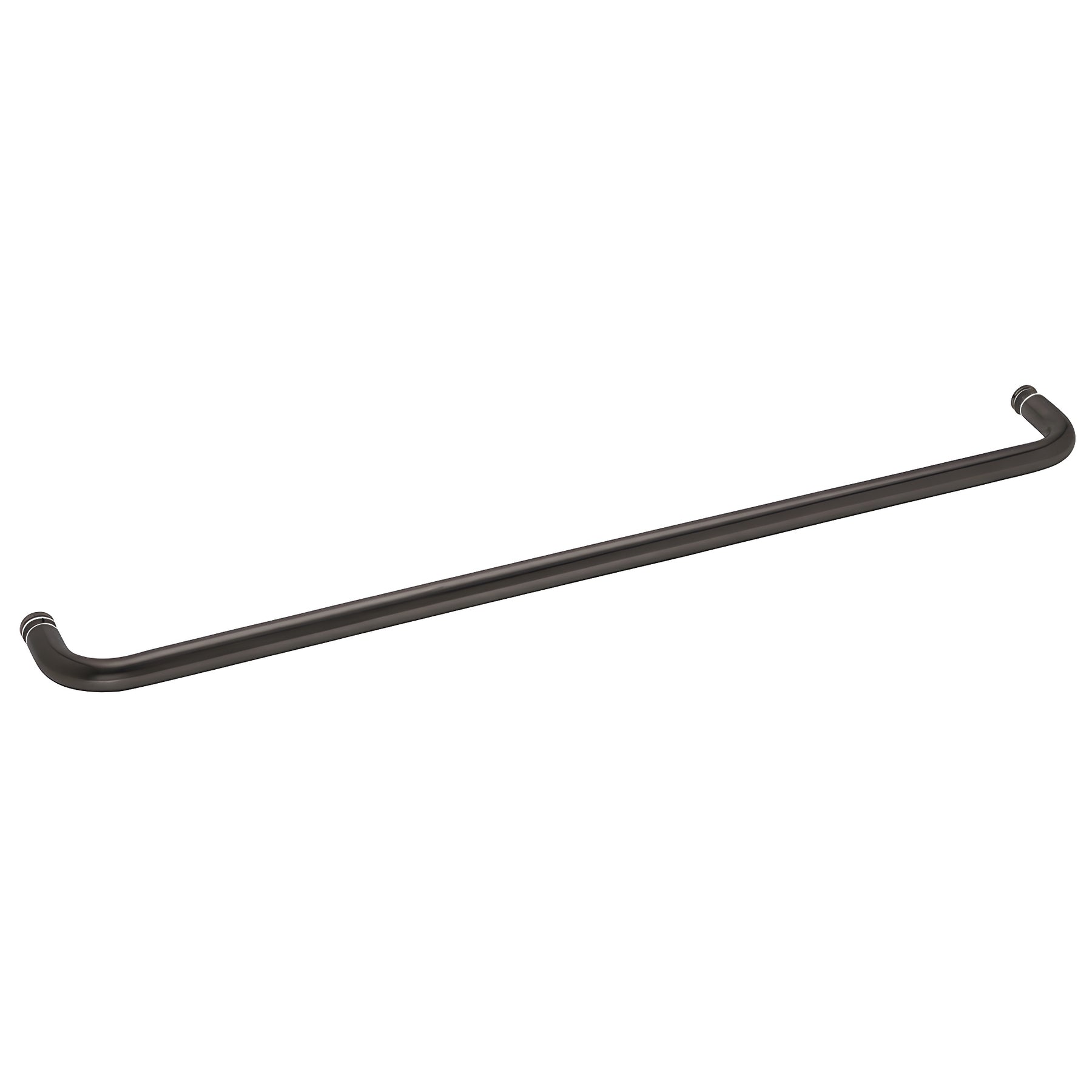

CRL BM Series Single-Sided Towel Bars (No Metal Washers) are engineered for glass mounting on fixed panels or doors and work especially well as a low-profile towel bar for sliding bypass doors. Constructed from heavy brass tubing with 1.5 mil wall thickness, these glass-mounted towel bars provide a clean, continuous look without exposed metal washers. Ideal for tempered glass installations and modern shower hardware projects. SKU:
BMNW240RB.
SPECIFICATIONS: Material: 3/4" (19 mm) Diameter Brass Tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES:
CAT. NO. BMNW12 12" Towel Bar
CAT. NO. BMNW18 18" Towel Bar
CAT. NO. BMNW20 20" Towel Bar
CAT. NO. BMNW22 22" Towel Bar
CAT. NO. BMNW24 24" Towel Bar
CAT. NO. BMNW26 26" Towel Bar
CAT. NO. BMNW27 27" Towel Bar
CAT. NO. BMNW28 28" Towel Bar
CAT. NO. BMNW
