- Low-profile 1/8" end caps — ideal for bypass sliding doors
- Available in several sizes and our most popular finishes
- Heavy 3/4" (19 mm) diameter brass tubular construction (1.5 mil wall)
- No exposed metal washers for a sleek, continuous glass-mounted profile
- Designed for monolithic tempered glass panels

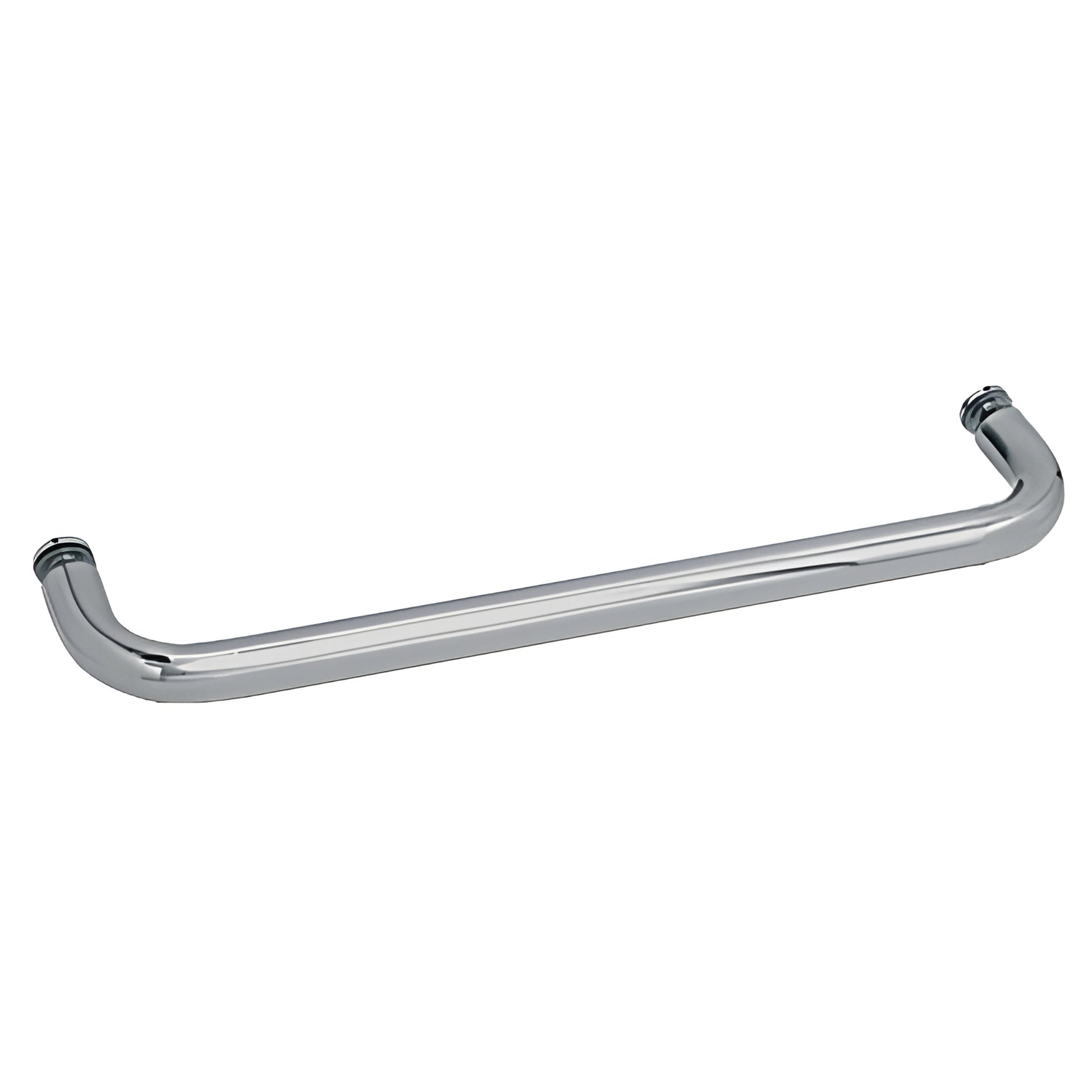

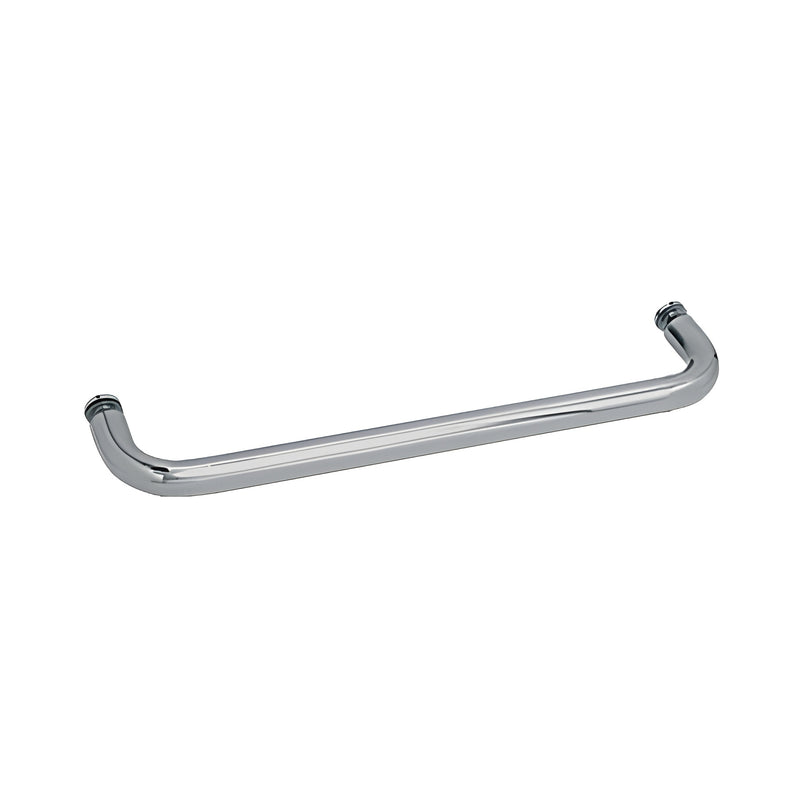

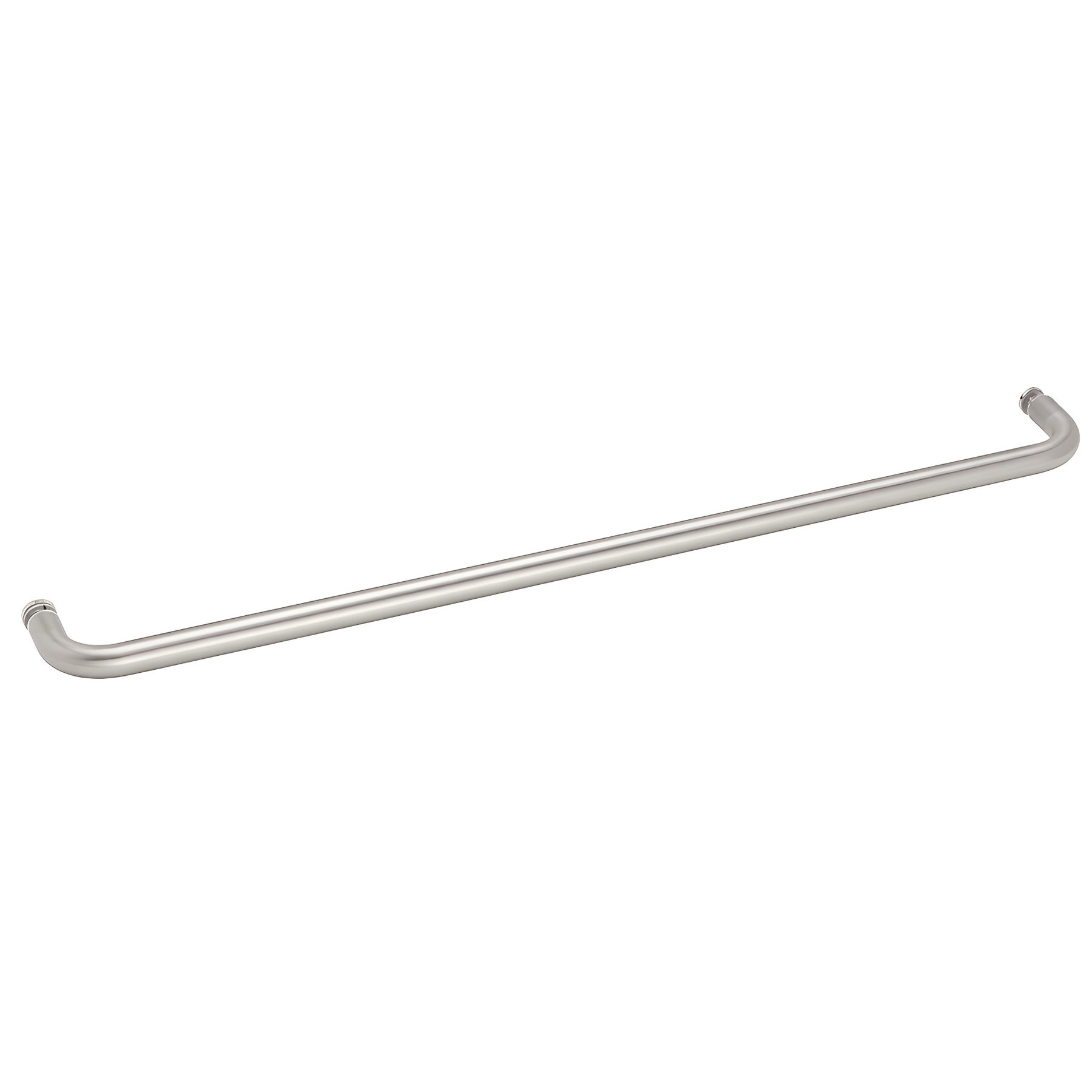

CRL BM Series Single-Sided Towel Bars (No Metal Washers) are engineered for glass mounting on fixed panels or doors. The low-profile end caps and washer-free face make these towel bars a top choice for bypass sliding door installations and frameless glass applications. Plastic internal washers protect glass-to-metal contact while preserving a minimal, modern look.
SPECIFICATIONS:
Material: 3/4" (19 mm) diameter brass tubing
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES / CATALOG NUMBERS:
CAT. NO. BMNW12 — 12" Towel Bar
CAT. NO. BMNW18 — 18" Towel Bar
CAT. NO. BMNW20 — 20" Towel Bar
CAT. NO. BMNW22 — 22" Towel Bar
CAT. NO. BMNW24 — 24" Towel Bar (SKU reference: BMNW24BN)
CAT. NO. BMNW26 — 26" Towel Bar
CAT. NO. BMNW27 — 27" Towel Bar
CAT. NO. BMNW28 — 28" Towel Bar
CAT. NO. BMNW30 — 30" Towel Bar
Most shipping weights are approximate. If you need exact shipping weight or verified shipping costs before ordering, please contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor settings.
