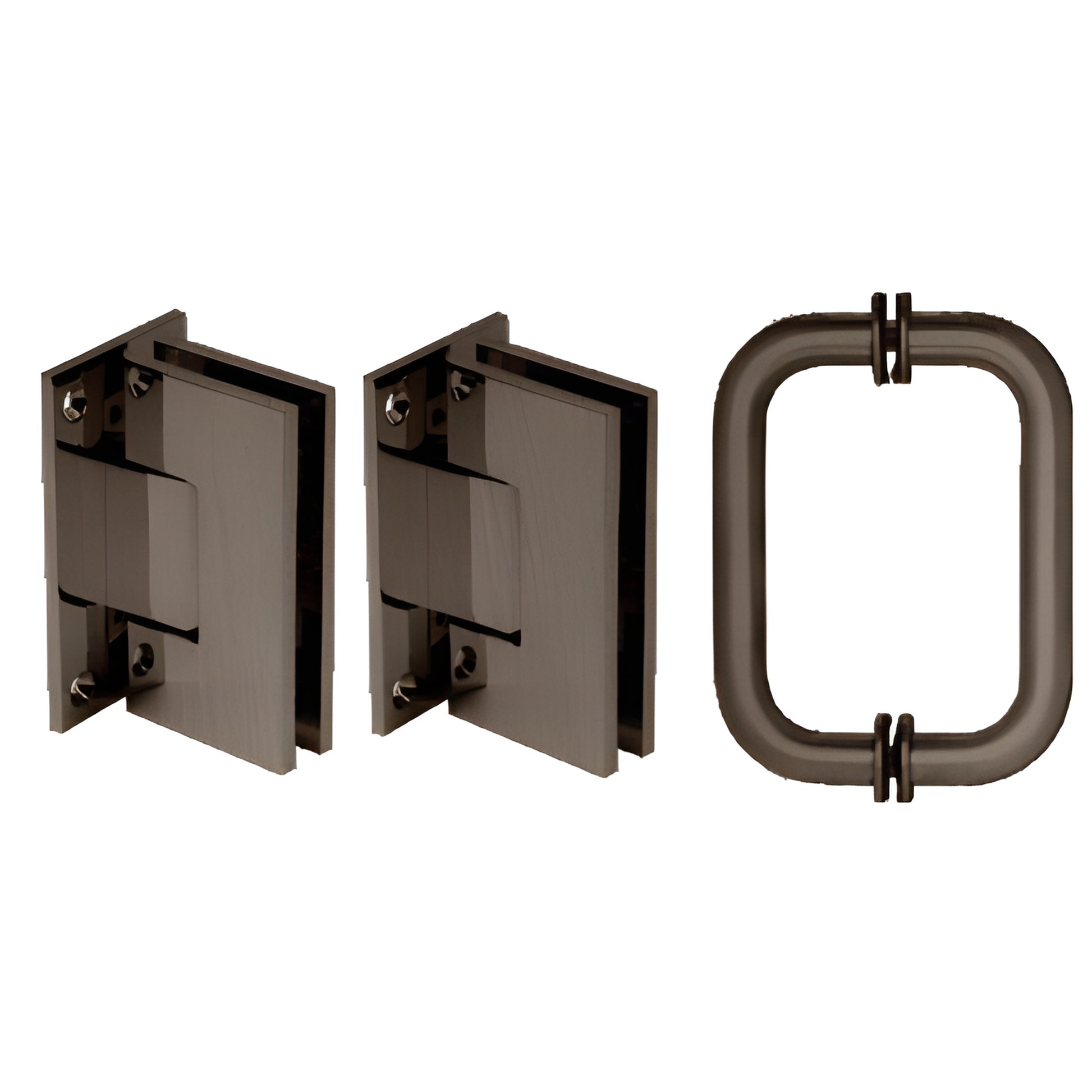

• Oil rubbed bronze shower hinge and tubular back-to-back pull set (2 wall-mount hinges + handle) SKU V1ES30RB
1 1

CRL

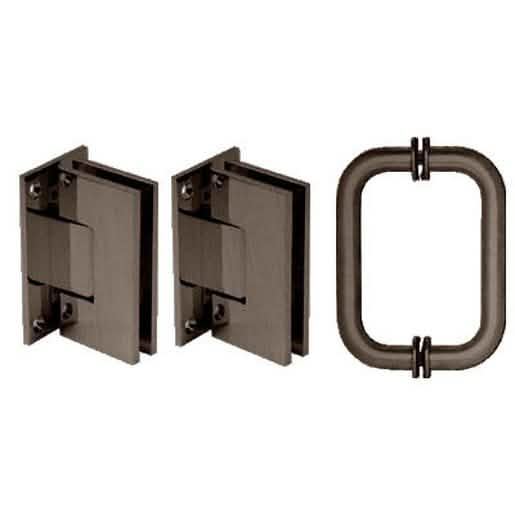

CRL Vienna Oil-Rubbed Bronze Shower Door Pull & Hinge Set

CRL Vienna Oil-Rubbed Bronze Shower Door Pull & Hinge Set

$248.59 CAD
$248.59 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1ES30RB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight
110 lbs. (49.9 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Vienna

Overview

  • Hinges for 5/16" to 1/2" (8 to 12 mm) glass
  • Set includes two hinges and one set of pull handles
  • Features Vienna 037 Series wall-mount hinges (one of our five most popular hinge series)
  • Available in our four most popular finishes
  • Includes our best-selling BM6X6 tubular back-to-back pull handle with metal washers
  • All components packaged together in an easy-to-order set for tempered shower glass
  • Designed for use with monolithic tempered glass

CRL Shower Pull and Hinge Set — This set combines two Vienna 037 Series wall-mount hinges and one set of BM6X6 tubular back-to-back pull handles with metal washers for an easy-to-install shower door hardware solution. Ideal for residential and hotel shower doors using 5/16" to 1/2" (8–12 mm) tempered glass.


Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge — cut-out dimensions for CRL hinges may not match other brands.


Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual product or close representations; colors may vary by monitor.


SKU: V1ES30RB

Order this complete shower hinge and pull handle set today to simplify installation and ensure a coordinated finish — add to cart now.
