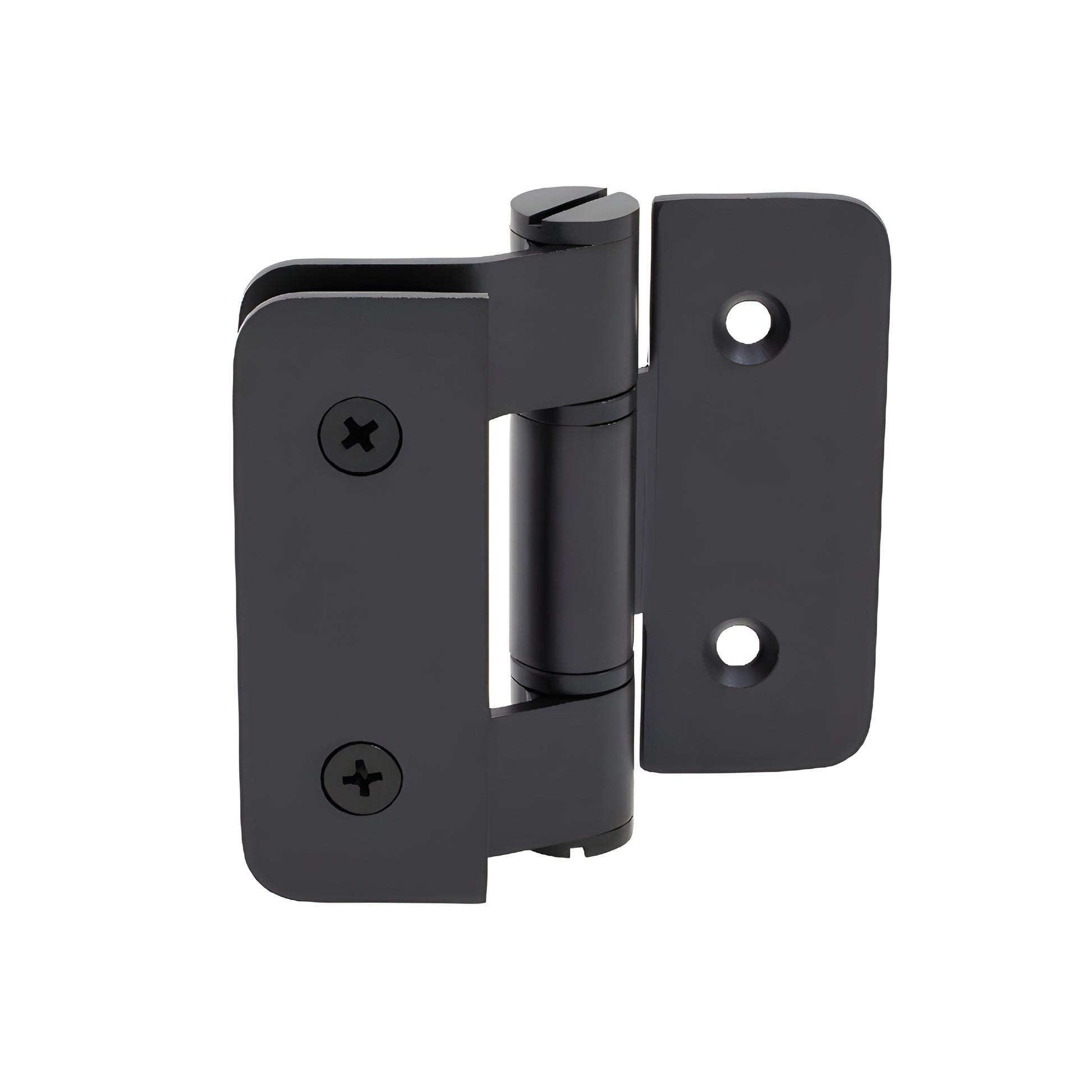

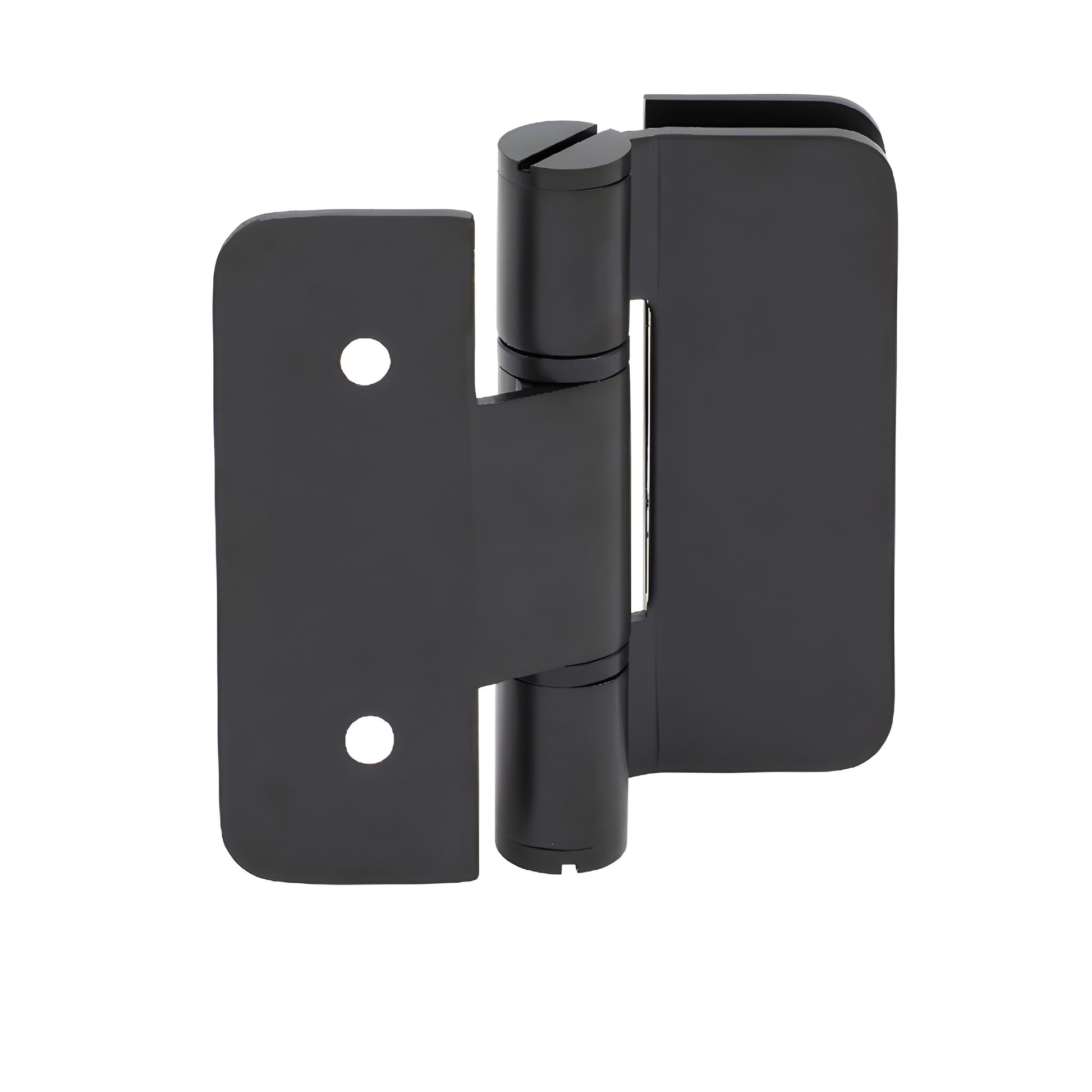

CRL Zurich 05 Oil-Rubbed Bronze Wall-Mount Outswing Door Hinge

• Wall Mount Outswing
• Ideal for Bi-Fold Application
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass

The CRL Zurich Series professional hinges (SKU: ZUR050RB) are designed for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and were the first bi-fold hinge offered by CRL. All Zurich hinge models feature stainless steel or solid brass construction and are available in up to 13 finishes. Installation requires only two holes per hinge per panel with no cut-out necessary—making these Zurich series bi-fold shower door hinges fast to fit and ideal for custom shower projects.

Replacement cover plate screws: Use Item No. P512, available in multiple finishes and conveniently packaged in packs of 100.

NOTE: Not available in Germany.

Load Capacity & Door Size

• Using two hinges (5/16"–3/8" glass): holds up to 100 lbs. (45 kg); max door width 36" (914 mm).
• Using three hinges (5/16"–3/8" glass): holds up to 150 lbs. (68 kg); max door width 40" (1.02 m).

SPECIFICATIONS:

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Special Features: Ideal for bi-fold shower door applications. Use ZUR01 and ZUR03 for doors that fold into tub area; use ZUR02 and ZUR05 for doors that fold out to bathroom area.
• Construction: Stainless steel or solid brass
• Hinge Swings: See descriptions next to photos of hinges
• Closing Type: Free-swinging
• Installation: Two holes required per hinge per panel (no cut-out)
• Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes are available on request—contact the CRL Technical Sales Shower Door Department for finish options and lead times.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match those of other brands.
