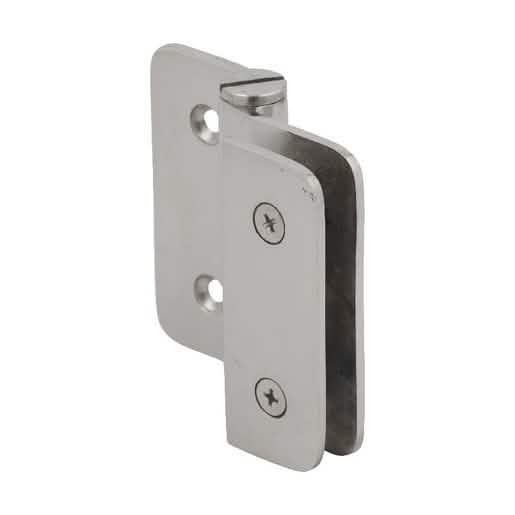

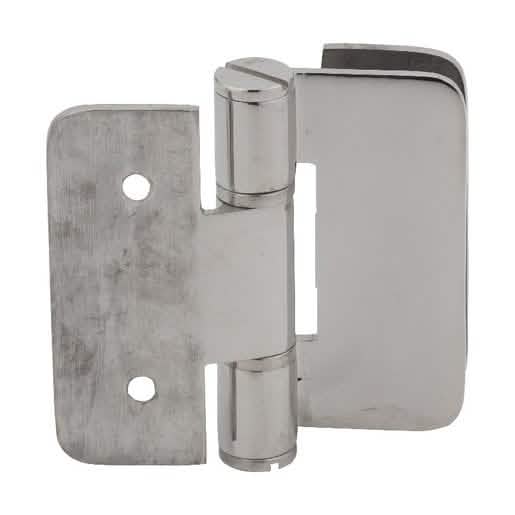

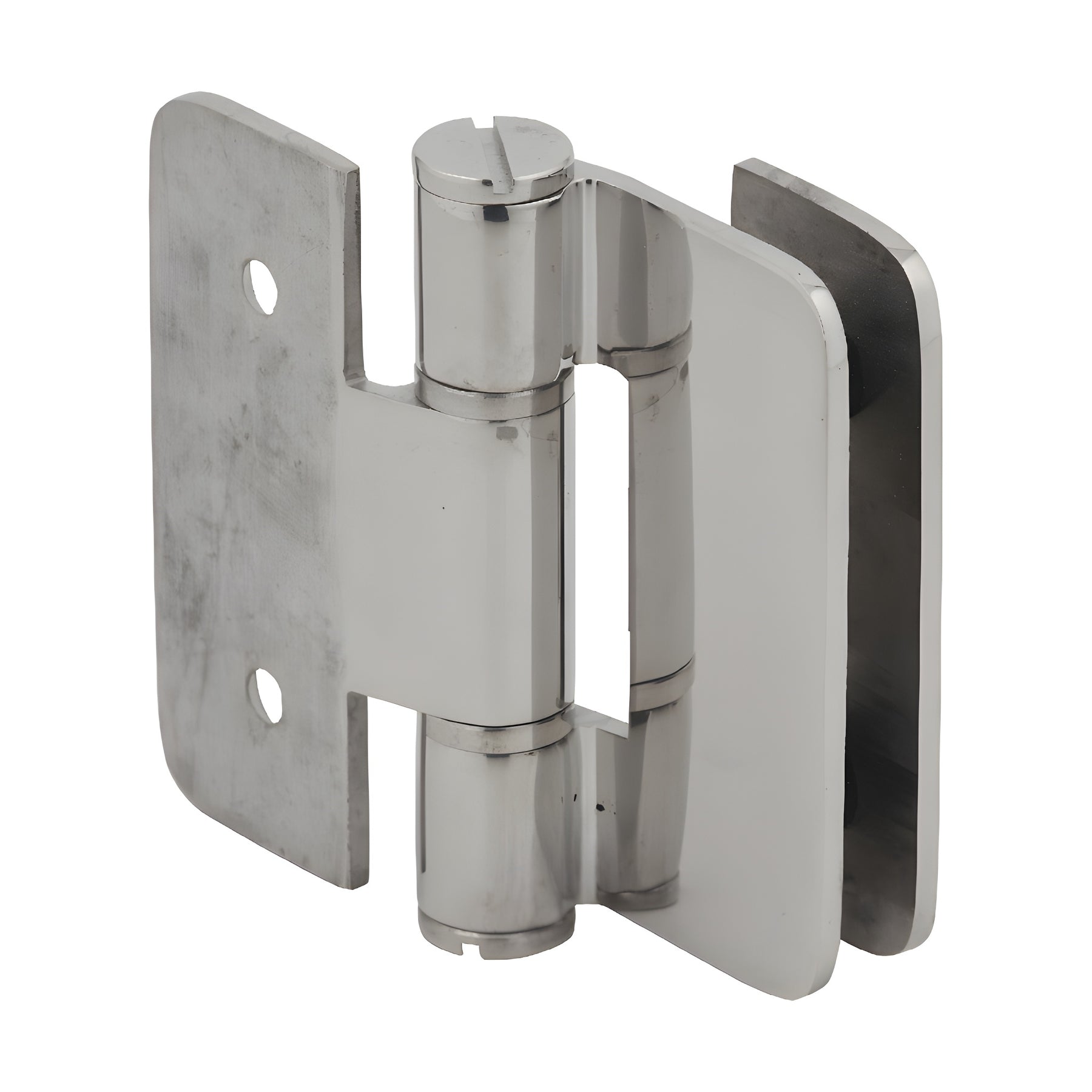

CRL Polished Stainless Zurich 05 Series Wall Mount Outswing Hinge

CRL Polished Stainless Zurich 05 Series Wall Mount Outswing Hinge

$115.97 CAD
$115.97 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# ZUR05PS
Shipping Weight: 13.76 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

5 Degree Pre-Set NoNo
BackPlate Offset
Finish/ColorPolished Stainless Steel
Glazing Thickness5/16 in. To 3/8 in. (8 mm To 10 mm)
Height 3-1/8 in.(79 mm)
MaterialStainless Steel
Maximum Door Weight - 2 Hinges 100 lbs.(45.4 kg)
Maximum Door Weight - 3 Hinges 150 lbs.(68 kg)
Maximum Door Width - 2 Hinges 36 in.(914 mm)
Maximum Door Width - 3 Hinges 40 in.(1016 mm)
MountingType Wall Mount
Self-Centering NoZurich
Width 1-3/16 in.(30 mm)

Overview

The CRL Zurich Series of professional hinges is perfect for wall mount outswing and bi-fold applications, offering versatility with monolithic tempered glass.
Available in up to 13 stunning finishes, these hinges feature stainless steel or brass construction and require only two holes per panel, eliminating the need for cut-outs.
The hinges can support up to 150 lbs with 5/16" to 3/8" glass, making them ideal for residential or hotel shower doors.
Although stainless steel is corrosion-resistant, periodic maintenance is recommended to preserve its factory finish.
Note that this product is not available in Germany.
