CRL 3/8" Painted Type E 90° Open-Center Stair Rail Clamp
CRL 3/8" Painted Type E 90° Open-Center Stair Rail Clamp
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH1138PT
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
5/8 in. (16 mm)
Finish/Color
Powder Coated
Glazing Thickness
3/8 in. (10 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 3/8" (10 mm)
Use CRL 90 Degree Straight Open Center Clamp 'E' (SKU: RH1138PT) on the top or bottom midpoint of 3/8" (10 mm) tempered glass for level runs. Reversible open-center design allows easy installation and reversible orientation for versatile glass railing and partition applications.
P612** replacement screws
Our glass and railing clamps are pre-drilled and ready for commercial and residential applications including glass railings, stair systems, room dividers, and frameless shower enclosures. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Three stocked finishes—chrome, brass, and brushed nickel—plus custom finishes on request. Installation is simple: loosen the screw on one end, insert the glass edge, and tighten. Use CRL Tuff-Pak tape to cushion glass in clamps. For wood mounts use Screw Cat. No. 8X212DW; for metal mounts use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available for precise glass railing installation.

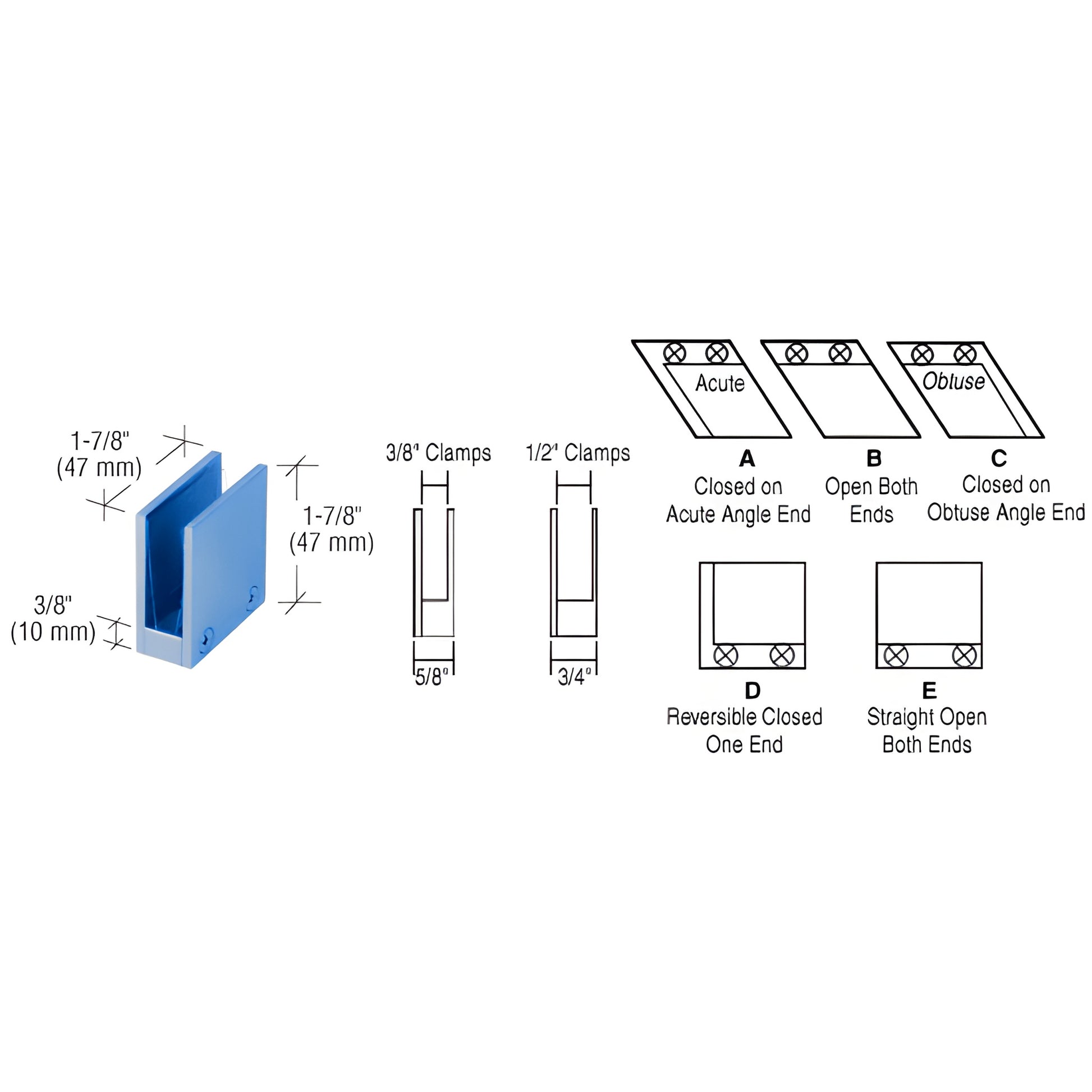

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Specifications
Templates
