CRL Polished Brass 1/2" 52° Slant Type B Clamp Stair/Walkway Rail
CRL Polished Brass 1/2" 52° Slant Type B Clamp Stair/Walkway Rail
Regular price
$47.02 CAD
Regular price
Sale price
$47.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH4412BR
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
3/4 in. (19 mm)
Finish/Color
Polished Brass
Glazing Thickness
1/2 in. (13 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 1/2" (12 mm)
SKU: RH4412BR. Our predrilled Glass and Railing Clamps are ready for fast installation in metal-and-glass railings, partitions, room dividers and other architectural applications. Designed for 1/2" (12 mm) tempered glass, these clamps accept a glass edge with a single loosen/insert/tighten action. Two size options also accommodate 3/8" (10 mm) glass. Use CRL Tuff-Pak Tape to cushion glass inside clamps for vibration resistance and long-term protection.
Replacement screws: P612**
CRL 52 Degree Slant Open Center Clamp "B" — use these slant open center clamps at the top or bottom midpoint of slanted glass panels. Reversible center clamp set at a 52° angle for precise slanted-glass installations.
For special-order finishes contact CRL Technical Sales. NOTE:

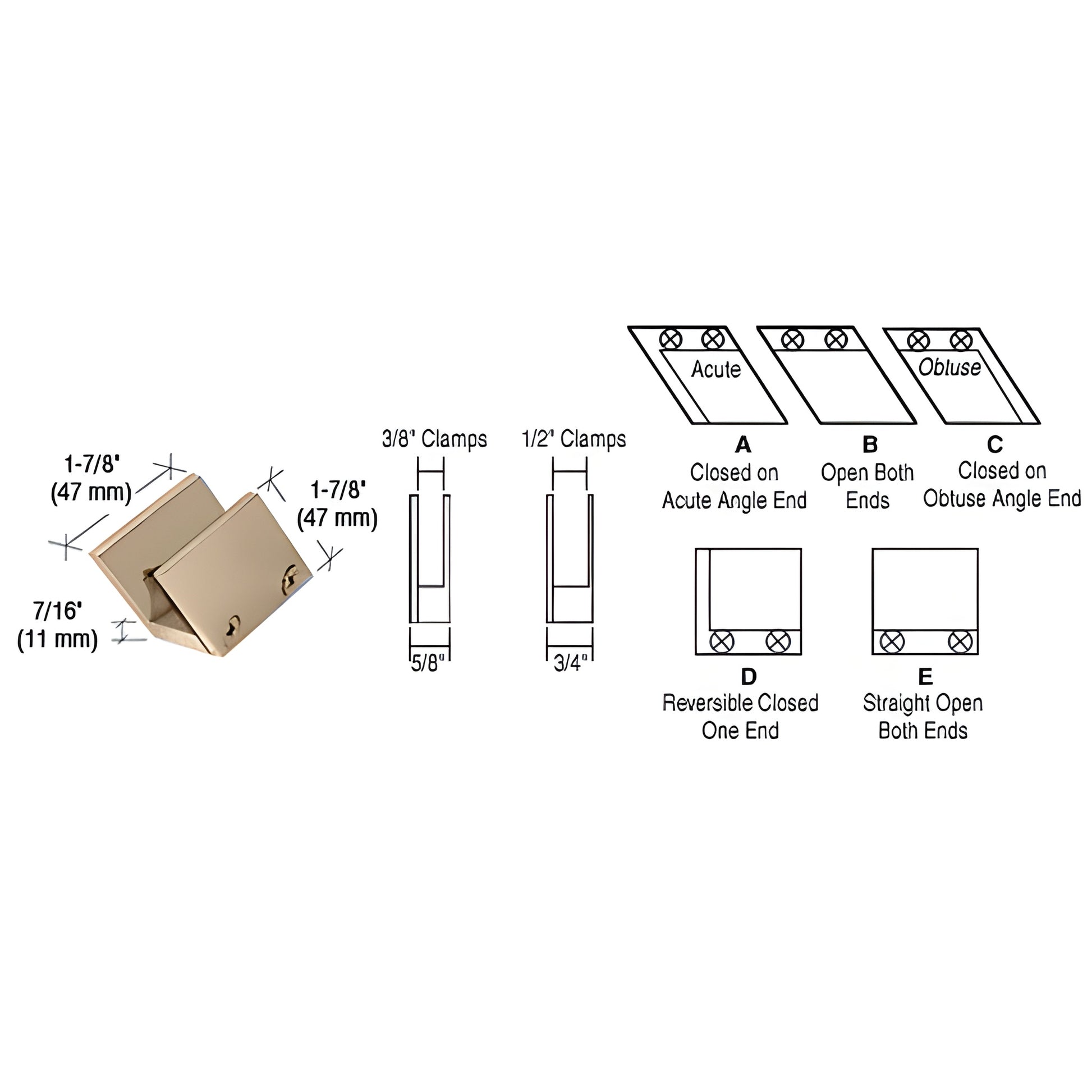

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Brass Finish Advisory:
Brass finishes are durable but can oxidize over time and develop a tarnished appearance regardless of initial packaging or storage. For maintenance and warranty details see the Brass Finish Disclaimer in the Technical References section.
Highlight: predrilled glass clamp for 1/2" tempered glass, stocked chrome/brass/brushed-nickel finishes, custom finishes available. Order RH4412BR or contact CRL for quotes and technical assistance.
