Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary with monitor settings.
CRL
CRL Polished Brass 3/8" Type B 52° Open-Center Clamp Stair/Walkway
CRL Polished Brass 3/8" Type B 52° Open-Center Clamp Stair/Walkway
Regular price
$44.67 CAD
Regular price
Sale price
$44.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH4438BR
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.12 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
5/8 in. (16 mm)
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. (10 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel finishes
- Custom finishes available on request
- For 3/8" (10 mm) tempered glass

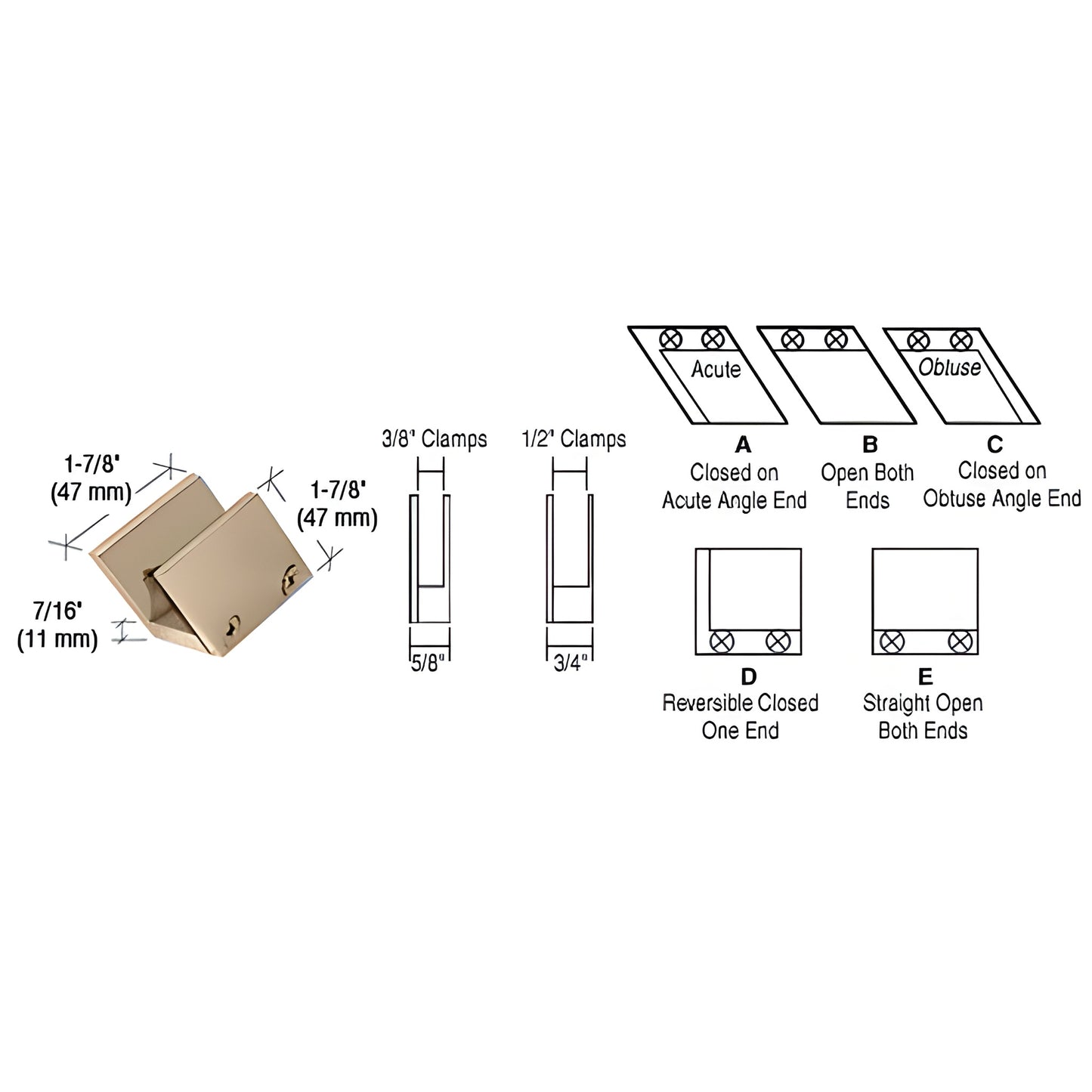

CRL Glass and Railing Clamps (SKU: RH4438BR) are predrilled and ready for glass railing, glass partition, and room divider installations. Two sizes fit 3/8" (10 mm) or 1/2" (12 mm) tempered glass. The reversible center clamp sets a 52° slant for slanted glass installations and can be used on top or bottom midpoints. Simple installation—loosen one screw, insert glass edge, then tighten.
Use CRL Tuff-Pak Tape to cushion glass inside clamps. Replacement screws: P612**. For wood mounting, use Screw Cat. No. 8X212DW; for metal mounting, use Screw Cat. No. FHSTMSS. Drawings and templates are available for all clamps.
CRL 52 Degree Slant Open Center Clamp "B": reversible open center clamp for slanted glass at a 52° angle.
For special finishes or custom color-matching, contact CRL Technical Sales.
Clamp types:
A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings
E: Straight Open Center Clamp for level railings
Brass Finish Advisory:
Brass is durable but can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Need a quote or installation advice for RH4438BR glass railing clamps? Contact CRL Technical Sales today.
Specifications
Cleaning & Maintenance
