CRL Type B 3/8" 52° Slant Clamp, Brushed Nickel for Stair Railing

• Chrome, Brass, and Brushed Nickel Finishes
• Custom Finishes Available on Request
• For Glass Thickness 3/8" (10 mm)

CRL glass and railing clamps (SKU RH4438BN) are predrilled and ready for use in metal and glass railings, partitions, room dividers and other architectural glass installations. Designed for 3/8" (10 mm) tempered glass, these clamps install quickly: loosen screw, insert glass edge and retighten. Use CRL Tuff-Pak Tape to cushion the glass inside the clamp. Replacement screws: P612**. For wood mounting use Screw Cat. No. 8X212DW; for metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available.

CRL 52 Degree Slant Open Center Clamp "B" — reversible slant open center clamp for use at the top or bottom midpoint of slanted glass panels; 52° angle accommodates sloped railing applications.

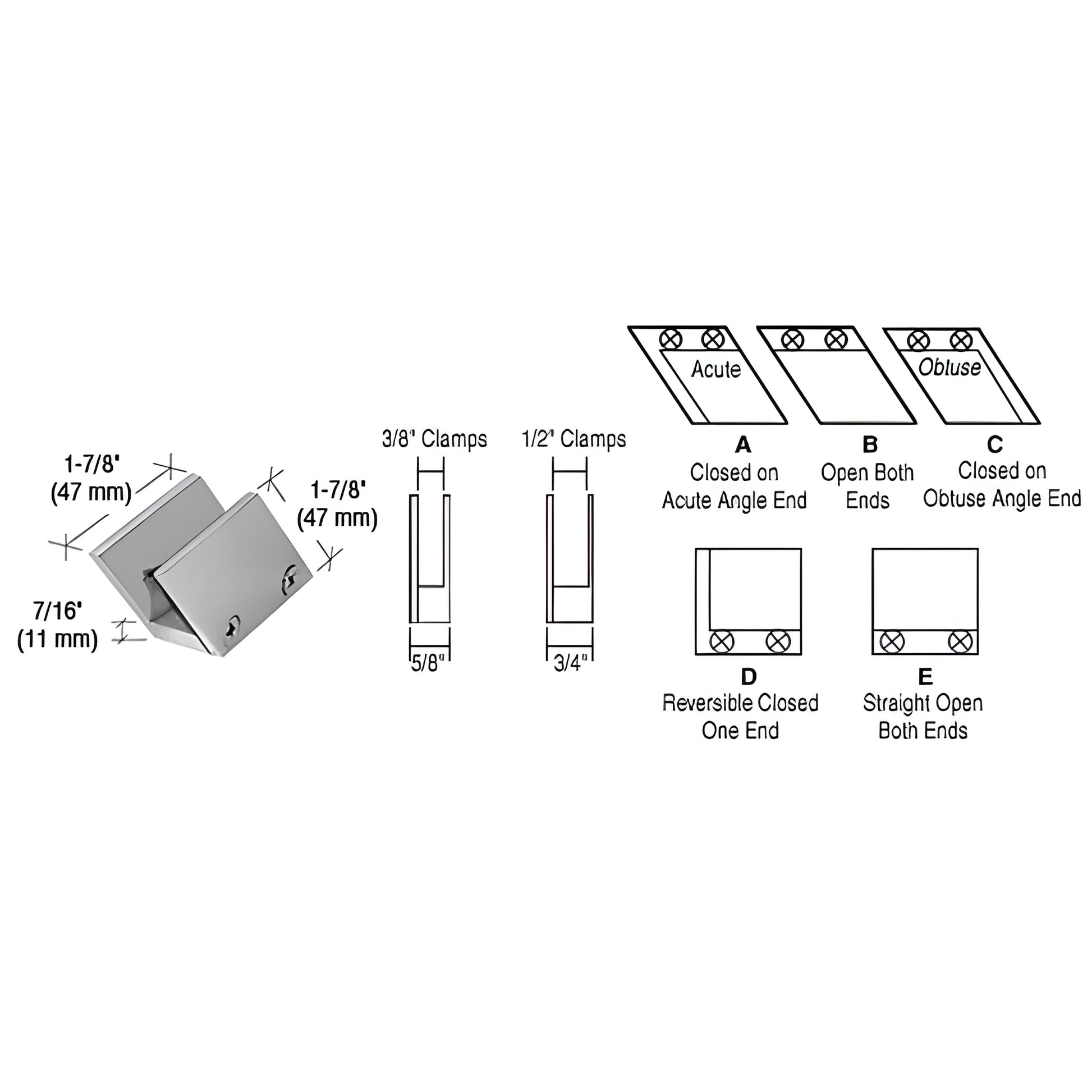

Clamp Types:
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings

Three popular finishes are stocked; custom finishes available upon request. These glass railing clamps are ideal for commercial and residential tempered glass railing systems where a durable brushed nickel, chrome, or brass finish is required.

For special finish requests or technical questions, contact CRL Technical Sales.

Ready to order or need a custom finish? Contact CRL to get started.
