Product Details
- Commonly Used in Malls for Joining Vertical Interior Lites of Glass
- Available in Brushed or Polished 304 Stainless and 260 Brass
- For 3/8" to 3/4" (10 to 19 mm) Thick Tempered Glass
- Use Monolithic Tempered Glass

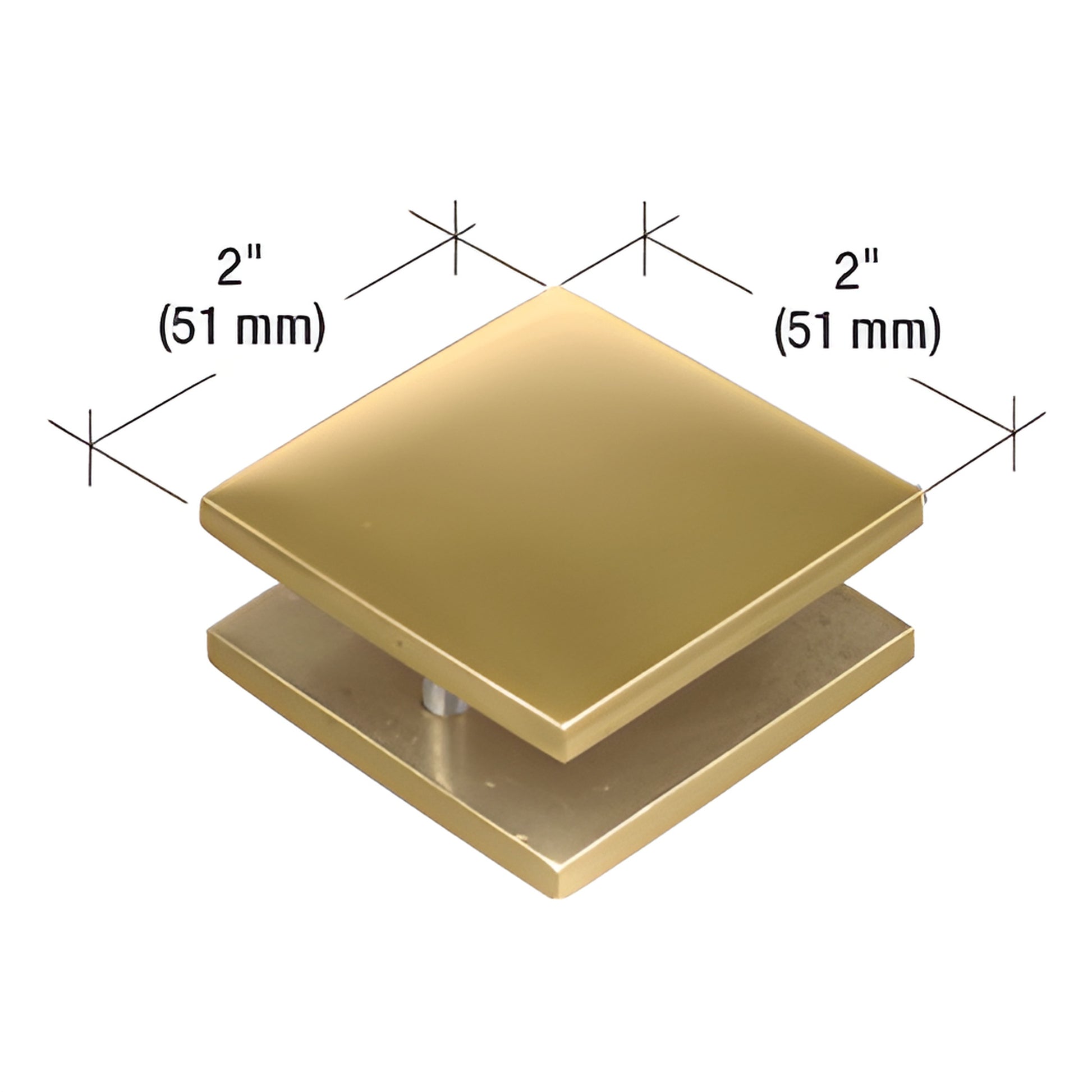

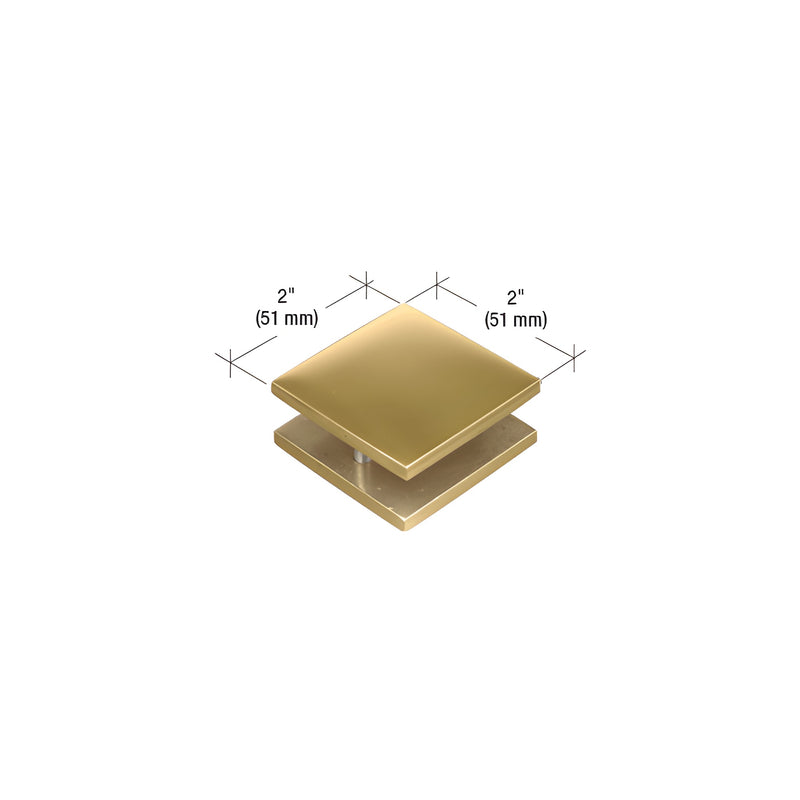

This CRL 2" x 2" (51 x 51 mm) 180 Degree Square Mall Front Clamp attaches with two flat head Phillips screws (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). They join vertical glass wall panels and provide rigidity to reduce flexing when pressure is applied. They can also serve as floating indicators to alert pedestrians of a panel's presence in dimly lit areas.
P612** replacement screws
These CRL Mall Front Clamps come in polished brass, polished stainless, or brushed stainless finishes, and are designed for 1/2" (12 mm) thick glass. To use on 3/8" (10 mm) glass simply file the threaded shank to the desired size. Suggested minimum gap for this clamp is 7/32" (5.6 mm).
Product Warning:
Available in Brushed or Polished 304 Stainless and 260 Brass
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
