- Silent Moving Four-Roller Carriage Assemblies
- Custom Built in Eight Standard Sliding Configurations and Eight Standard Bi-Fold Configurations
- For Use with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Available in Six Architectural Finishes and Custom Finishes Available on Special Order

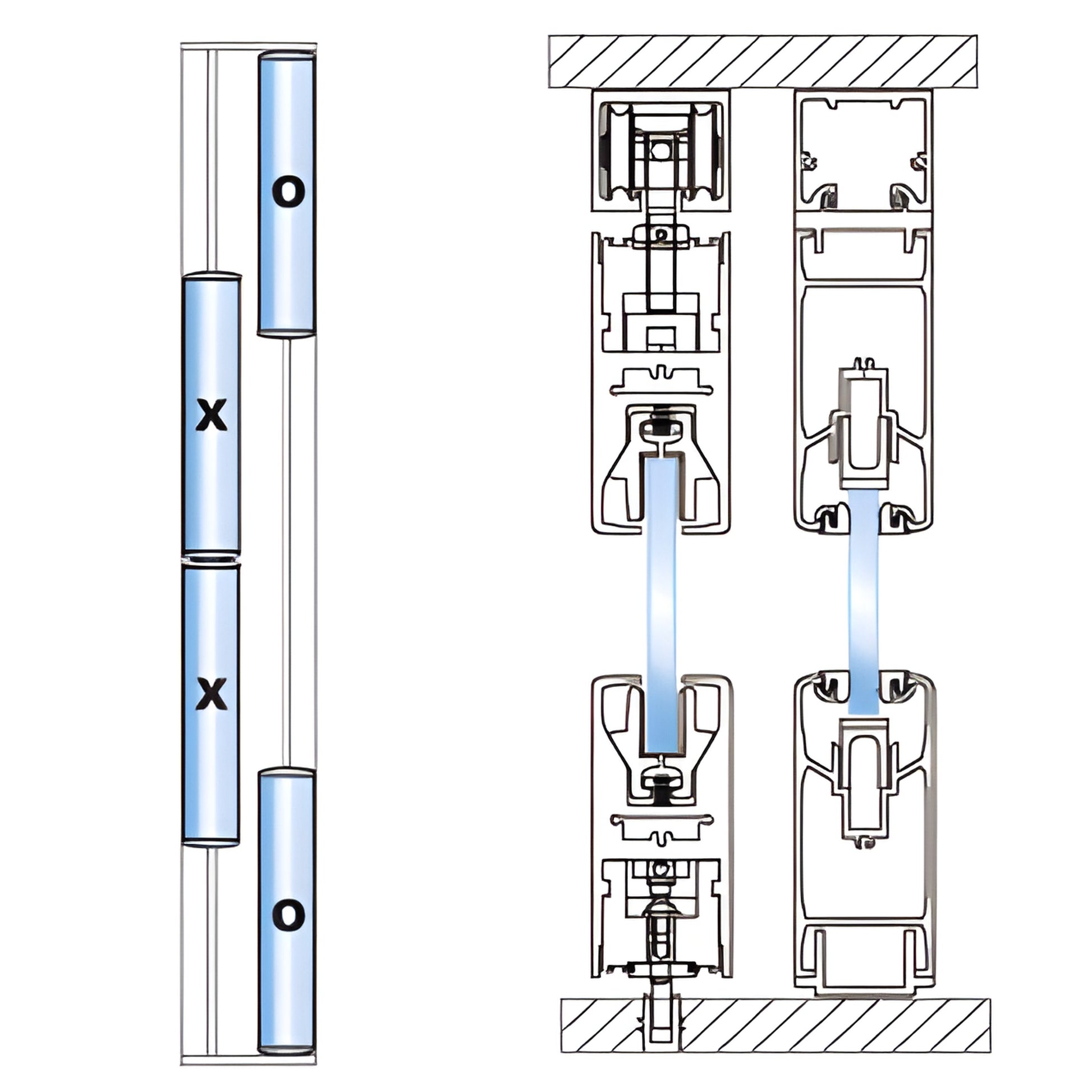

The CRL Overhead Track Sliding and Bi-Fold Door Systems are designed to work in a variety of different applications. Their universal track and roller design allows them to be used as Sliding, Half Panel Bi-Fold or Full Panel Bi-Fold configurations. Each unit is custom built to your specifications for opening size, glass thickness, and locking hardware.
Our Cat. No. 0TCA Top Roller Carriage Assemblies adjust easily for both height and alignment. Their compact design allows for the Top Track and the Door Rail widths to match, providing an even sight line. A pile weatherstrip fills the gap between the Top Track and Door Rail. An optional recessed 0TBR Series Guide Channel is included with each system for increased performance and added security.

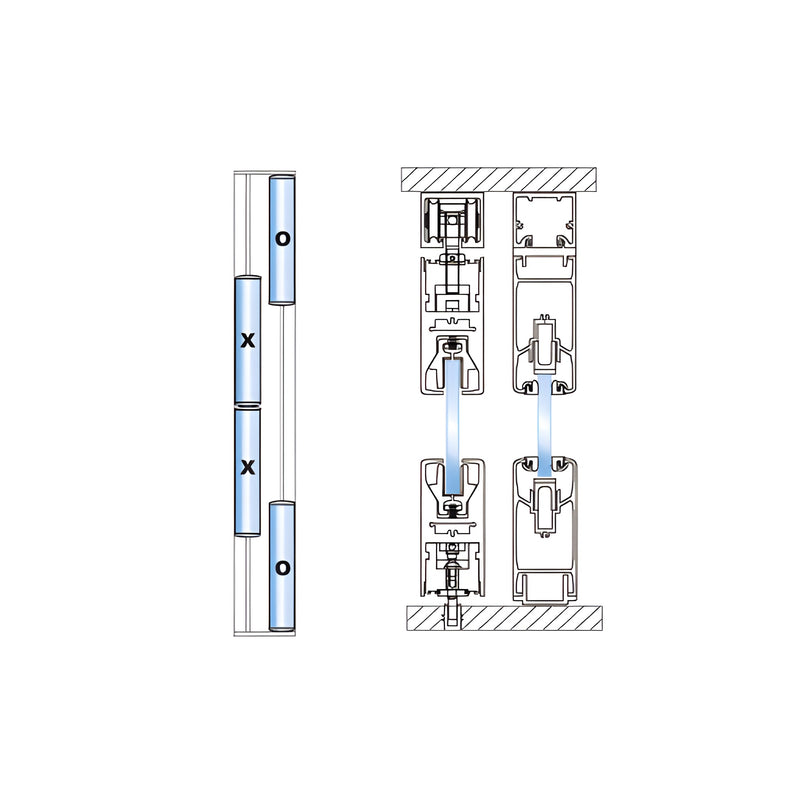

CRL Overhead Track Sliding Door Systems are available in eight standard configurations. Each sliding panel is hung from two Cat. No. 0TCA Carriage Assemblies. Maximum panel weight not to exceed 225 pounds (102 kg). Maximum panel width is 72" (1.83 m). Minimum panel width is 25" (635 mm). Available by custom order only. Standard with 4" (102 mm) square Rails, however, any 4", 6", or 10" (102, 152, or 254 mm) Rail combinations are available.
Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales Department for assistance.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
