CRL Polished Brass Vertical Weatherstile Kit 1/2 in Glass Door Seal
Item# W12PBS
Shipping Weight: 35.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 35.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Polished Brass
Glazing Thickness
1/2 in. (12 mm)
- Kit for 1/2" (12 mm) Glass Doors — SKU: W12PBS
- Use Monolithic Tempered Glass
- Reduces drafts and protects the glass edge
- Compatible only with CRL DRS Wedge-Lock® door rails for single and double door applications
- Five cladded architectural finishes to match commercial metal doors

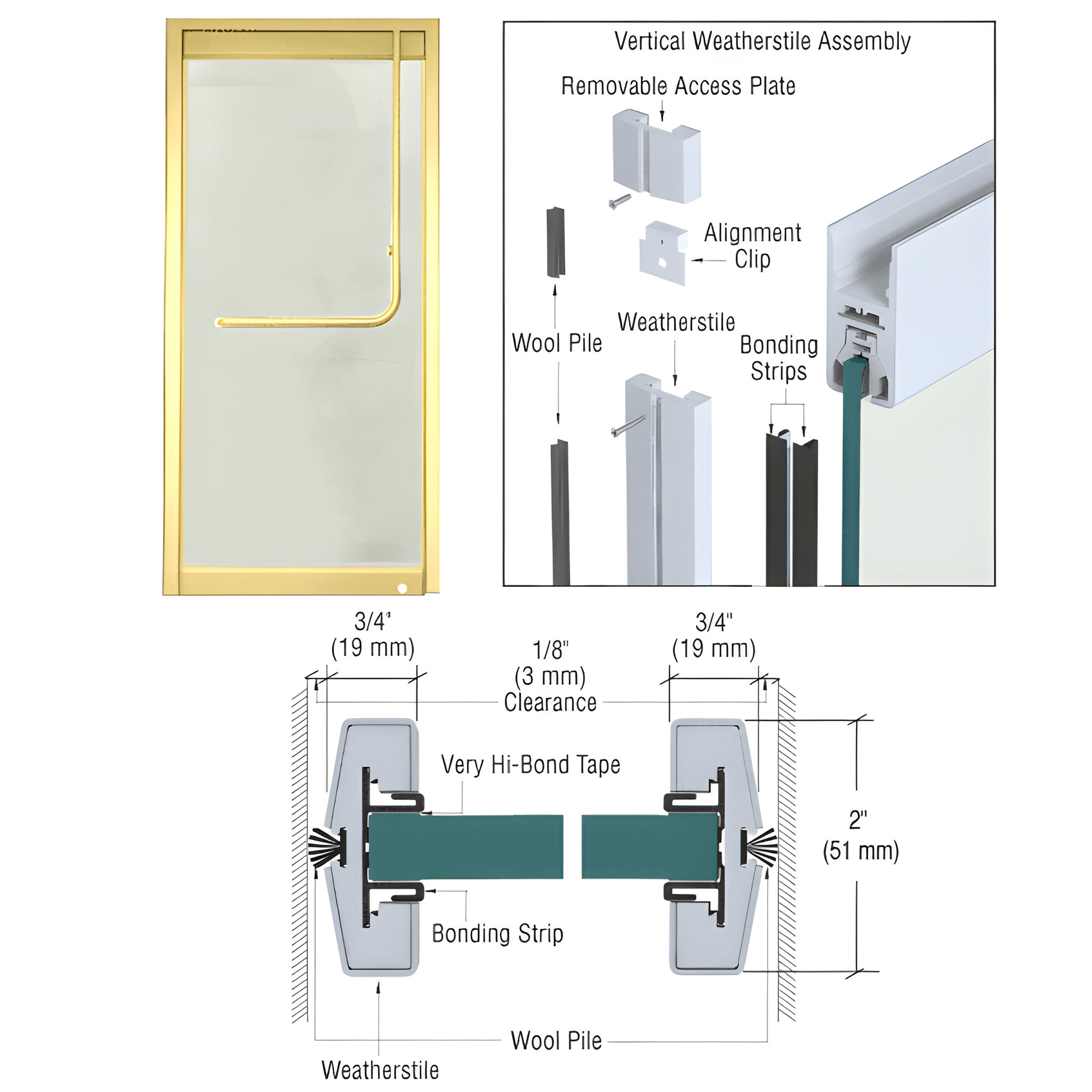

CRL Vertical Weatherstile Kits include two 117" (2.97 m) lengths of weatherstile with wool pile weatherstrip, one 120" (3.05 m) black EPDM filler strip (for double door applications), four 117" (2.97 m) bonding strips with Very Hi-Bond tape, four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.
These Vertical Weatherstile Kits are redesigned for newly fabricated single or double doors using 1/2" (12 mm) tempered glass (monolithic). They provide narrow, low-visibility stiles that reduce drafts and protect the glass edge while preserving the all-glass aesthetic—ideal for commercial storefronts and interior glass doors.
Available in five cladded architectural finishes, the kits match adjacent metal door finishes and are optimized for long-lasting performance with CRL DRS Wedge-Lock® rails. Installation uses internal bonding strips that adhere to the glass with Very Hi-Bond tape for a secure, accurate fit—no time-consuming glue curing required.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre-installed door rails.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may tarnish over time regardless of packaging or storage. For details, see the Brass Finish Disclaimer in Technical References.
Highlights: narrow vertical weatherstile for 1/2" tempered glass, CRL DRS Wedge-Lock® compatibility, five architectural finishes, no-glue Very Hi-Bond installation — SKU W12PBS.
Order CRL Vertical Weatherstile Kit W12PBS today to protect glass edges and stop drafts while maintaining an all-glass look.
CAD Drawings - dwg
