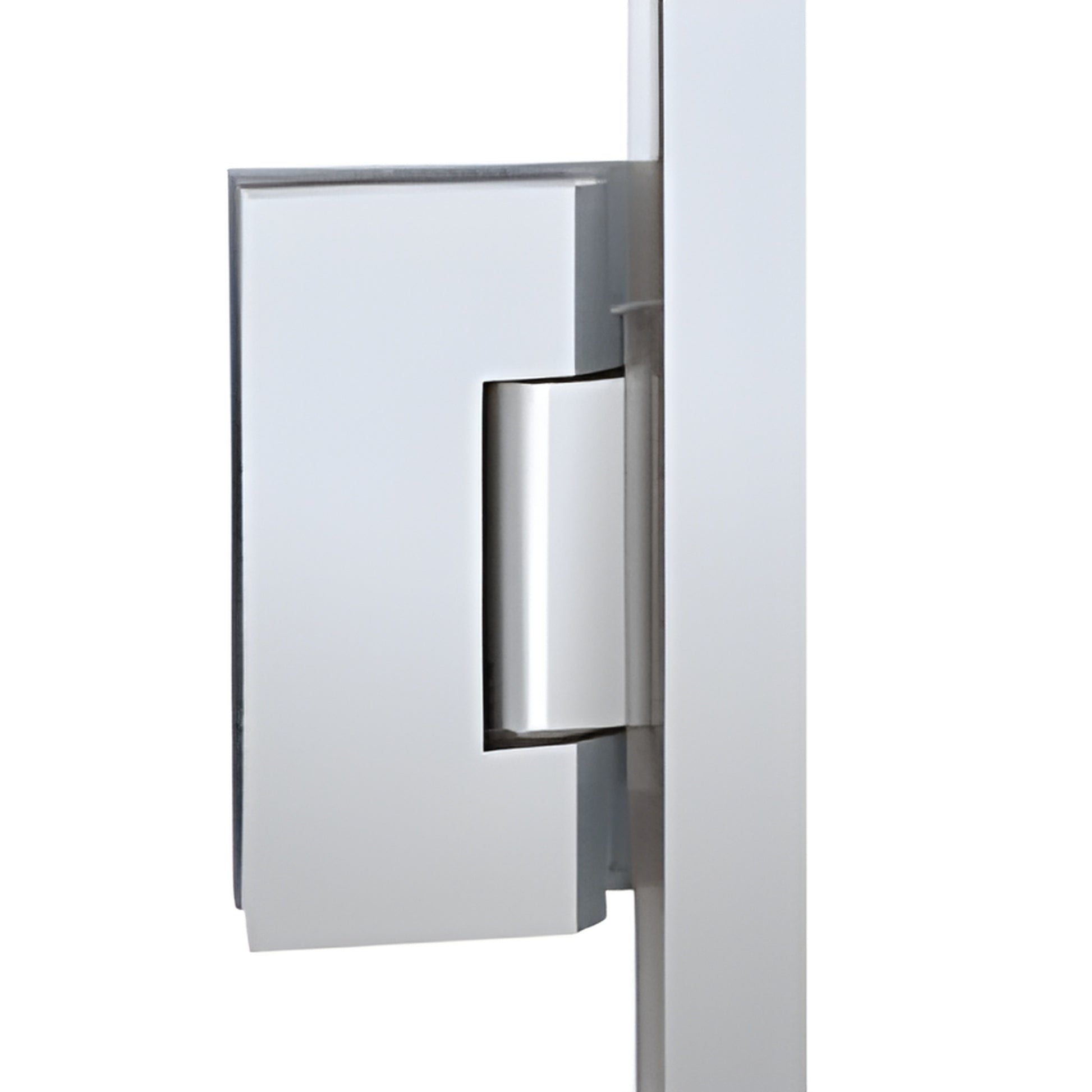

CRL Polished Chrome 72" Geneva Series Jamb Mounted Hinge Kit
Item # GEN03372CH
$409.87
CAD
Overview
| SKU | GEN03372CH |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Chrome |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Length | 72 in. (1829 mm) |
| Material | Aluminum |
| Maximum Door Weight | 80 lbs. (36.3 kg) |
| Maximum Door Width | 28 in. (711 mm) |
| Mounting Type | Wall Mount |
| Self-Centering | Yes |
| Series | Geneva |
Description
- Geneva Series Square Style Hinge Kit for 5/16" to 3/8" (8 to 10 mm) Glass
- 72" (1.83 m) Height Geneva Series Kit
- Several Finishes Available
- 5 Degree Hinge Pins Ensure Positive Closure to Provide a Water Resistant Seal at Both Sides and Bottom
- Self-Centering from 15 Degrees
- All Necessary Mounting Hardware Included
- Use Monolithic Tempered Glass
Our CRL Jamb Mounted Hinge Kits let you provide an 'all-glass' look shower door in an easy-to-install configuration. Water leakage around the door is minimized with the use of jambs with vinyl for both the hinge and strike sides, and a clear vinyl sweep for the bottom. Kits come in your choice of three of our most popular finishes, with glass cut-out templates and installation instructions enclosed.
NOTE: Pulls or Knobs must be ordered separately. Glass not included.
JAMB MOUNTED HINGE KITS CONSIST OF:
A. Jamb with Two Hinges Attached (Plus Vinyl)
B. Strike Jamb with Vinyl
C. Clear Vinyl Bottom Sweep with Drip Rail
D. Mounting Hardware
