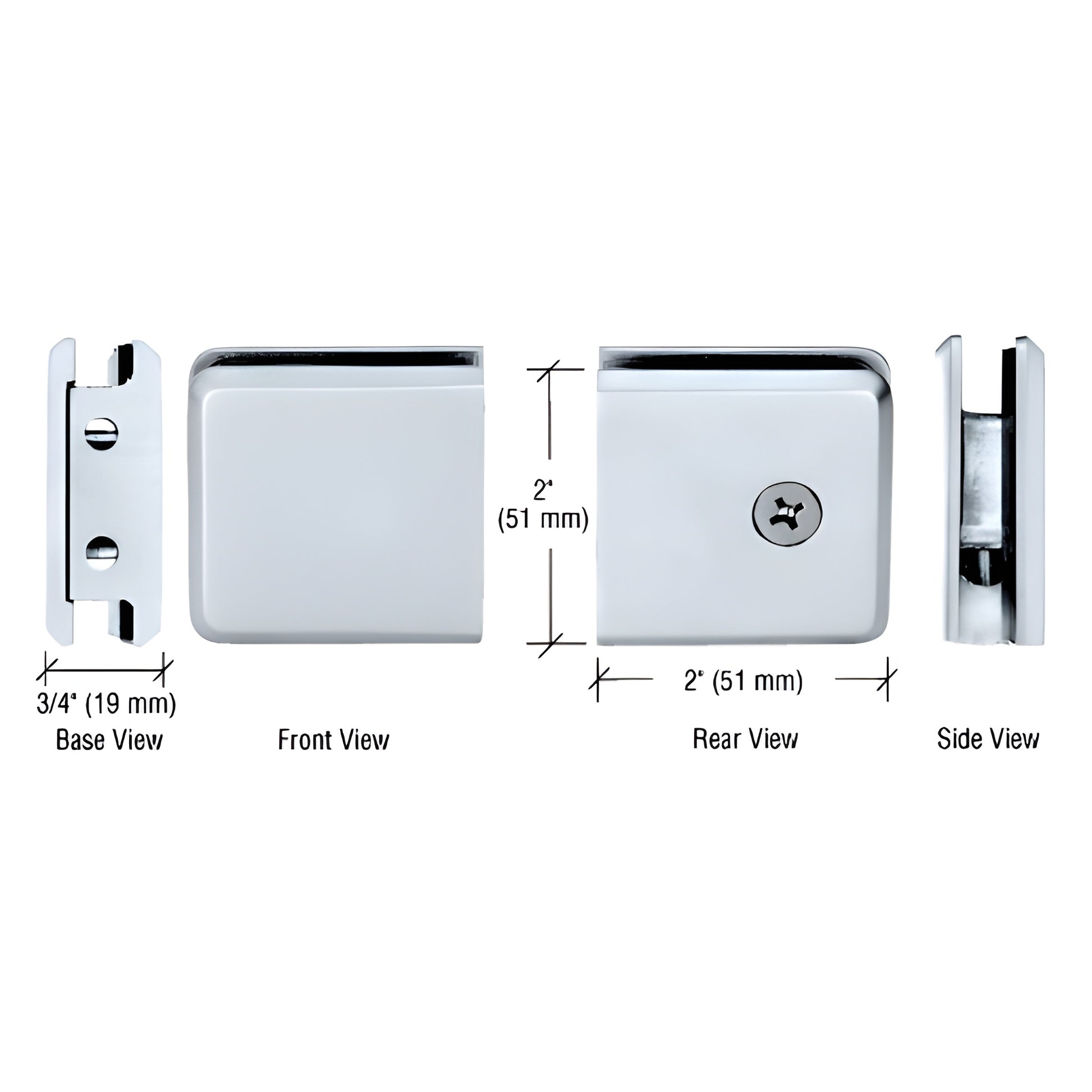

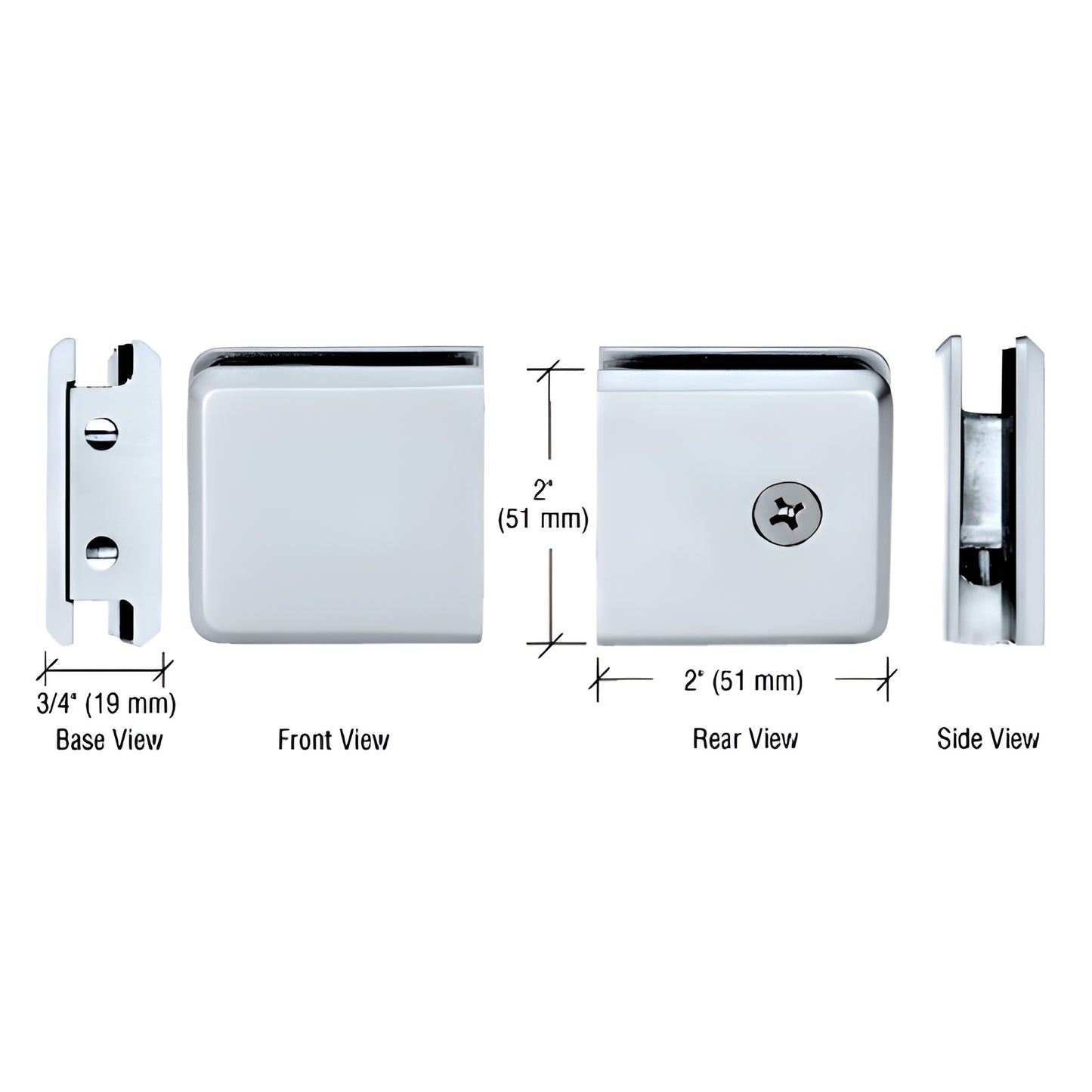

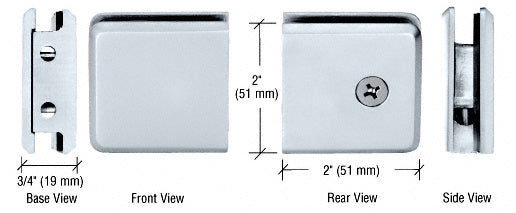

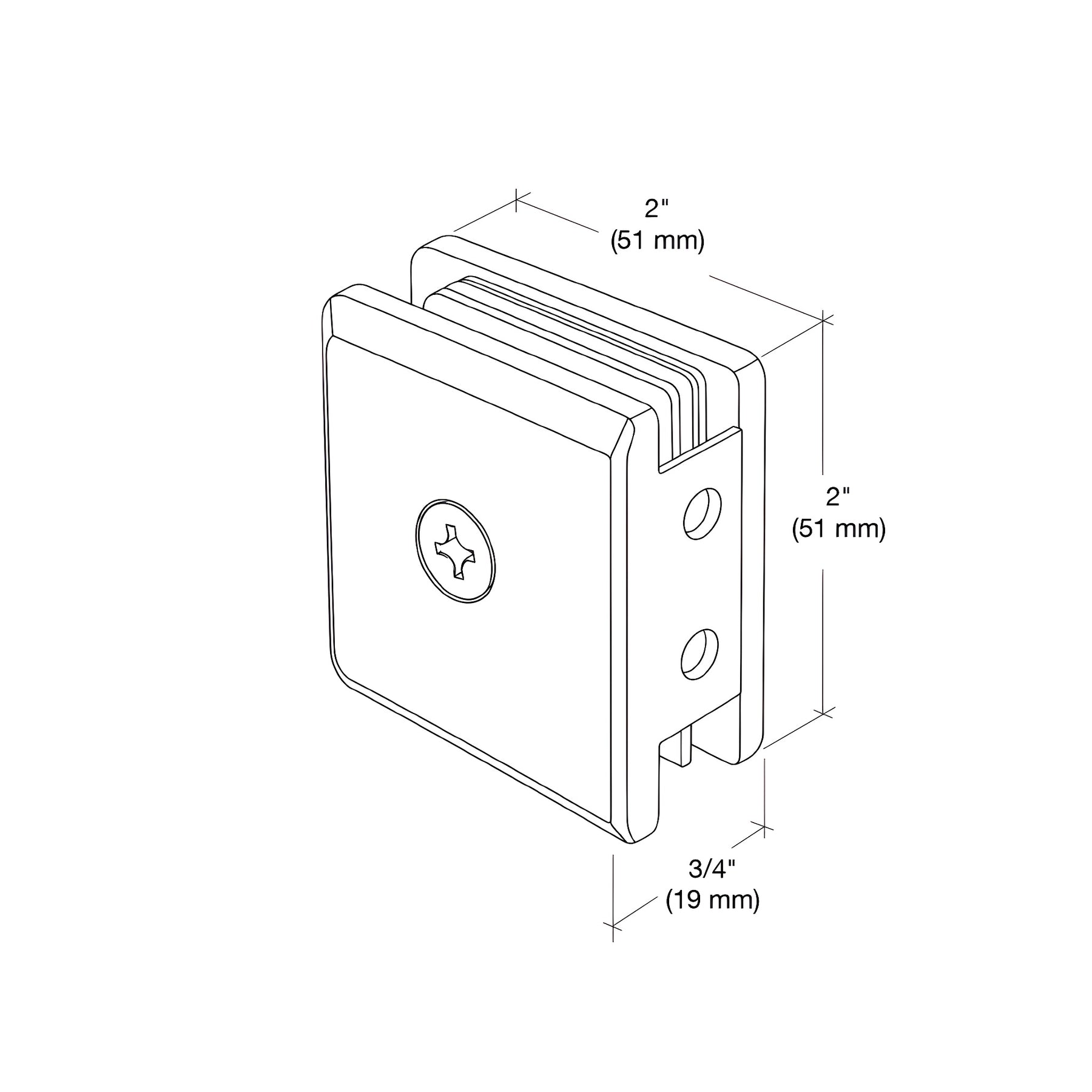

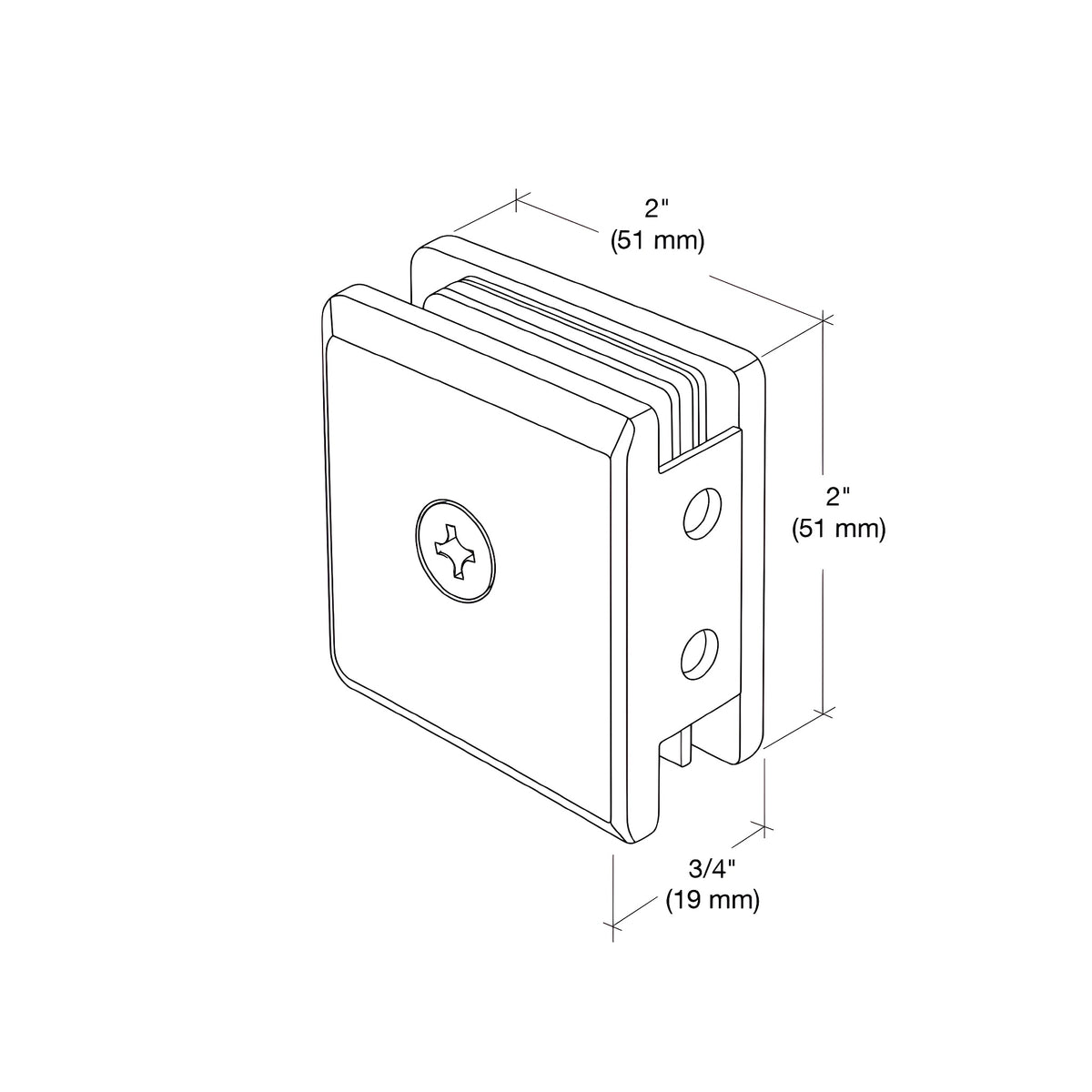

CRL Polished Chrome Beveled Notch-In-Glass U-Clamp for Shower Panel
CRL Polished Chrome Beveled Notch-In-Glass U-Clamp for Shower Panel
Regular price
$22.75 CAD
Regular price
Sale price
$22.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BGCU1CH
Shipping Weight: 8.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Use monolithic tempered glass
- Secures fixed glass panels in frameless shower enclosures
- Solid brass construction for corrosion resistance
- Creates an "all-glass" appearance as an alternative to U-channel
- Glass fabrication required to accommodate clamps (notch or hole)
CRL Beveled Wall Mount Clamp (Notch-in-Glass Style) — SKU: BGCU1CH mounts directly to wall, ceiling or floor to secure vertical fixed glass panels in frameless shower installations. Designed for a minimal 1/16" (2 mm) clearance between glass and wall; use clear silicone for a clean, water‑resistant seal. Ideal long-tail keywords: beveled wall mount clamp for frameless shower, notch-in-glass clamp for tempered glass, solid brass glass clamp for 3/8" to 1/2" glass.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 requires notch; BCU4, BGC037 and BGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Order BGCU1CH today to finish your frameless shower with a premium solid-brass beveled wall mount clamp.
Specifications
Templates
