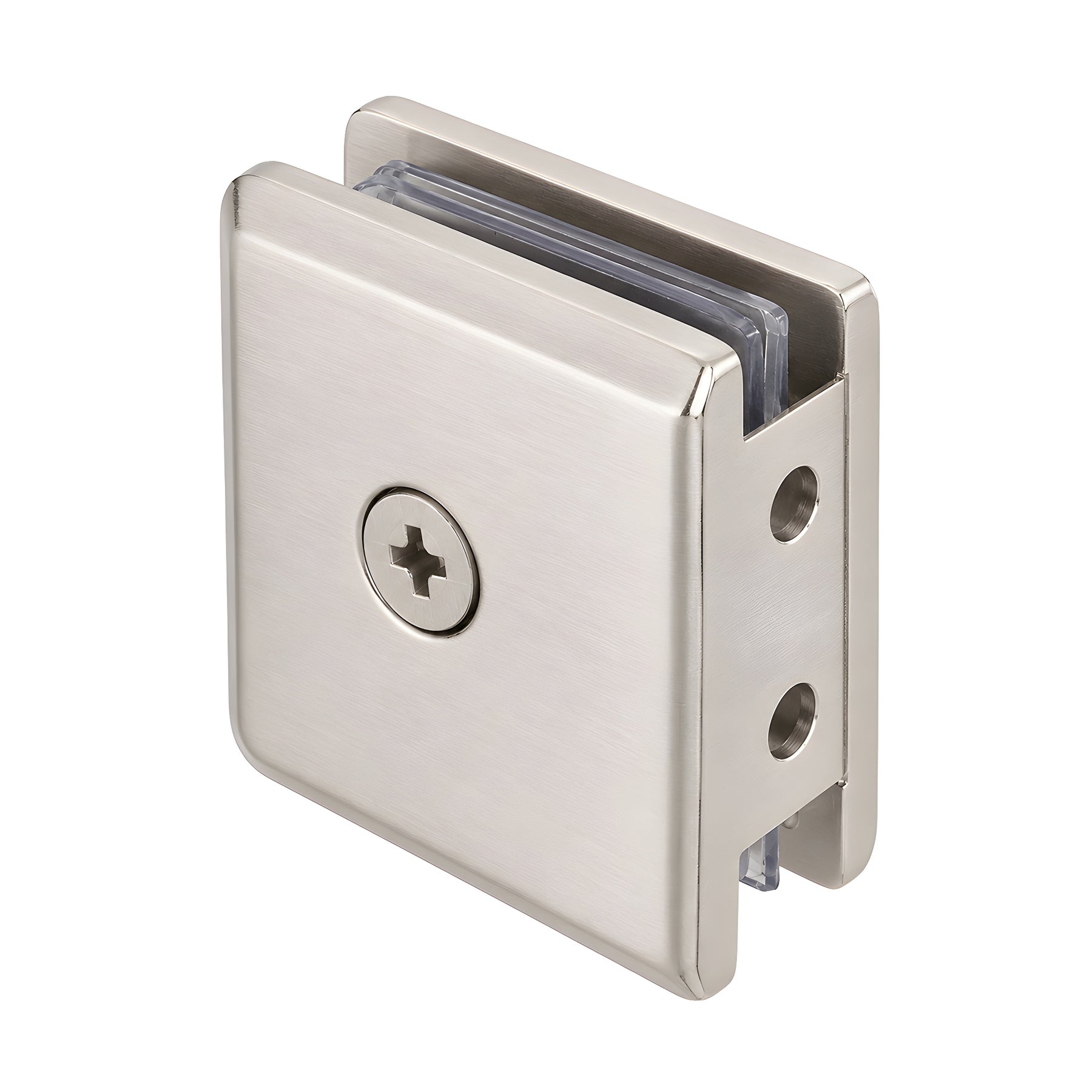

CRL Brushed Nickel Beveled Style Notch-in-Glass Fixed Panel U-Clamp
Item # BGCU1BN
$24.11
CAD
Finish (9)
Overview
| SKU | BGCU1BN |
|---|---|
| Sold As | 1 Each |
| Design Style | Beveled |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Brushed Nickel |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Wall / Ceiling Mount |
Description
- For 3/8" to 1/2" (10 to 12 mm) Glass
- Use Monolithic Tempered Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps

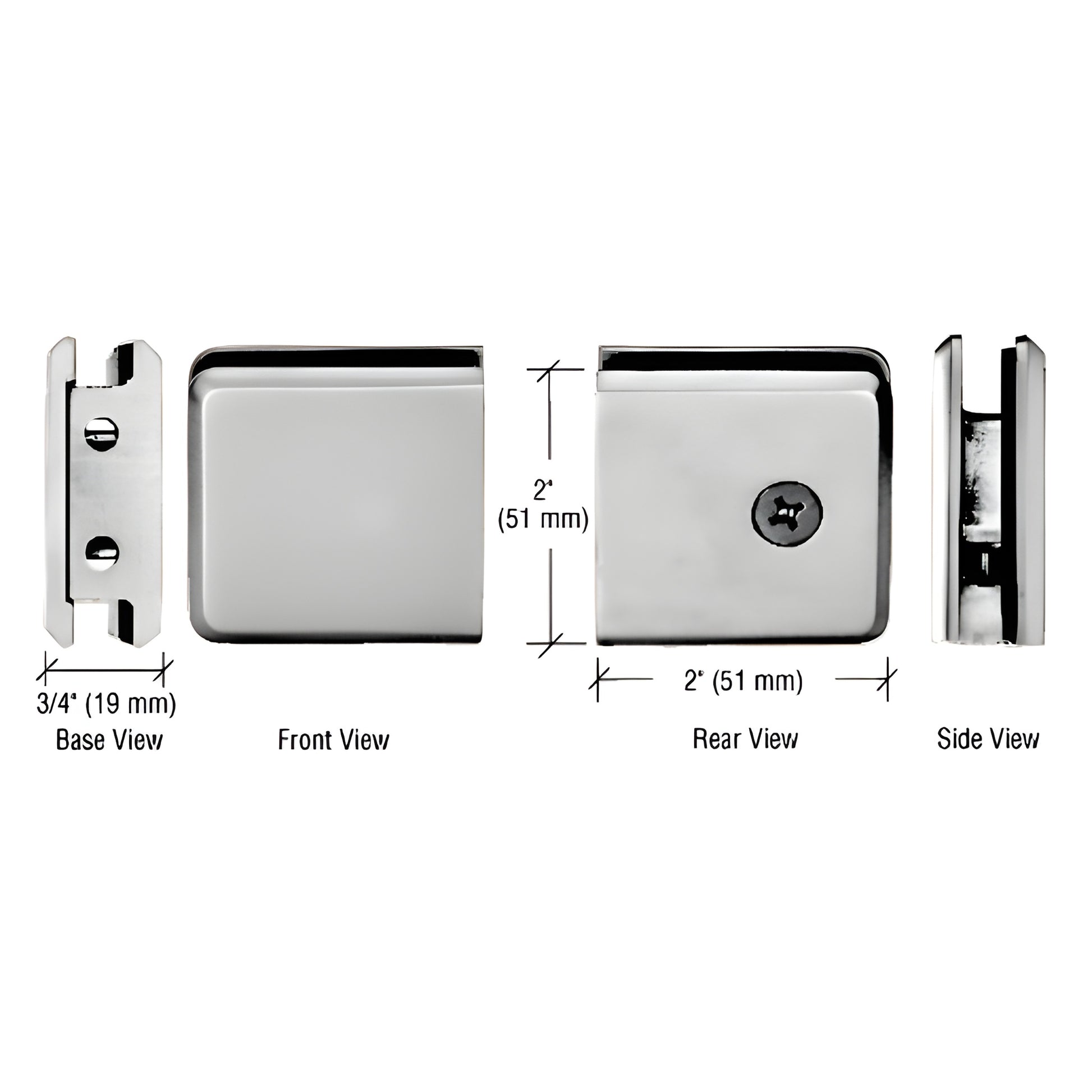

CRL Beveled Wall Mount Clamp Notch-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water resistant seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGCU1 Requires Notch; BCU4, BGC037 and BGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
Specifications
Brochures & Literature
Quote Request Forms
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
CRL Brushed Nickel Beveled Style Notch-in-Glass Fixed Panel U-Clamp
BGCU1BN
$24.11
CAD
