CRL Polished Chrome No-Drill Glass Clamp for Fixed Shower Panel

• Made of Solid Brass
• No glass fabrication required — no drilled holes or notches in the glass
• Includes clear gaskets and mounting screws
• No-drill fixed panel clamps for securing fixed tempered glass panels (use only under specified conditions)
• Use with monolithic tempered glass

Made of solid brass and available in multiple stock finishes, these CRL No-Drill Fixed Panel Clamps (SKU: NDC6CH) provide a no-drill alternative to clamps that require holes or notches in the glass. Two nylon-tipped set screws tighten to secure the glass; mounting screws are included for wall/ceiling/floor attachment. Use silicone reinforcement along all glass edges where clamps are installed.

IMPORTANT NOTE / INSTALLER RESPONSIBILITY: Do not hinge a door off a fixed panel using these clamps. Clamps must be used on a minimum of three sides of the fixed panel (top, bottom, and at least one side). Silicone must be applied along the entire edge of glass where clamps are used. Installer must verify adequate structural backing and suitability for the application.

SPECIFICATIONS:

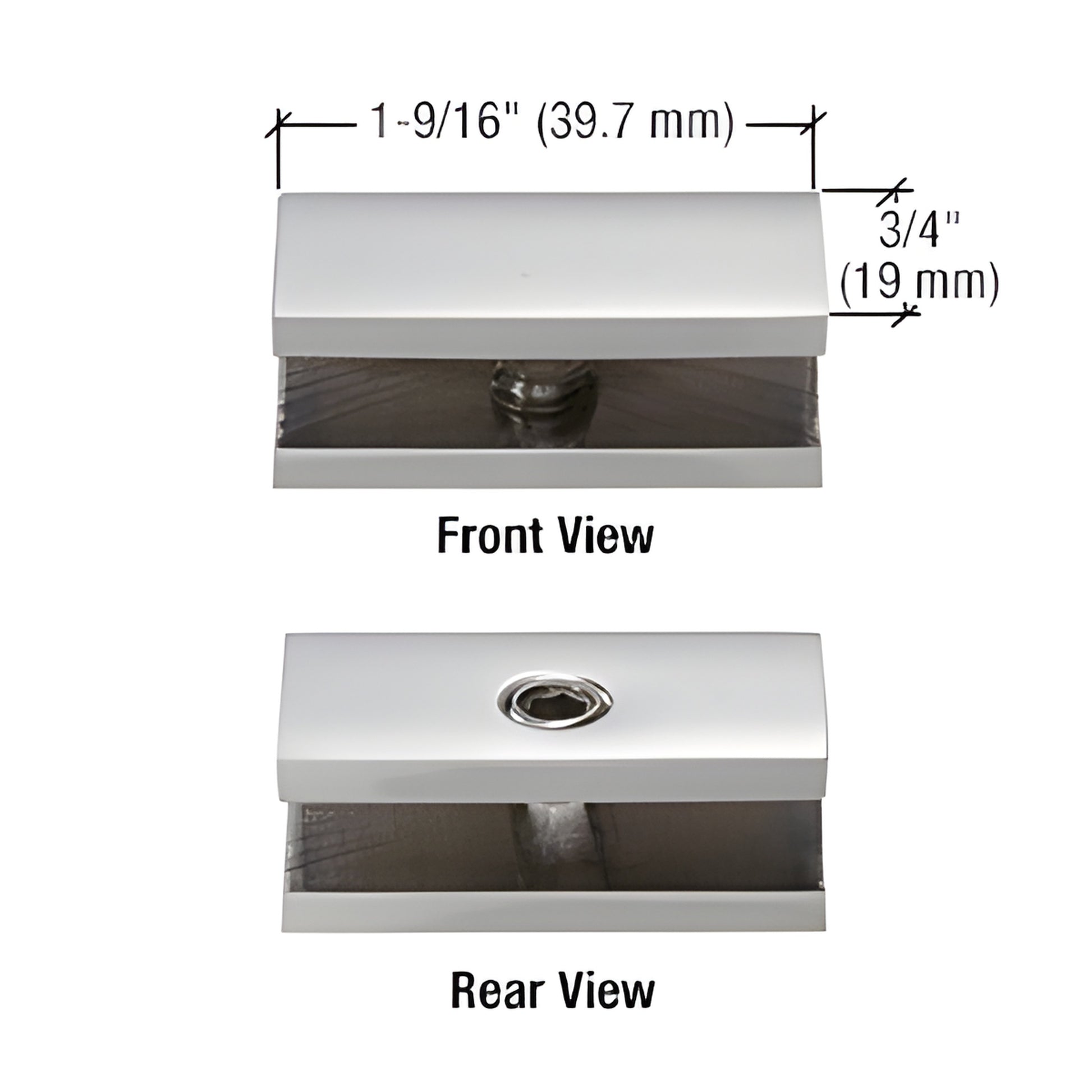

• Glass Thickness: 1/4" (6 mm)
• Material: Solid Brass
• Includes: Mounting screw(s) and clear gaskets
• No glass fabrication required

Product Warning: Do not hinge a door off a fixed panel using these clamps. Clamps must be used on a minimum of three sides of the fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where clamps are used. Installer must determine if adequate structural backing support is being used.

Shop these no-drill solid brass fixed panel clamps for secure, drill-free tempered glass installations — order now or contact CRL Customer Service for assistance.
