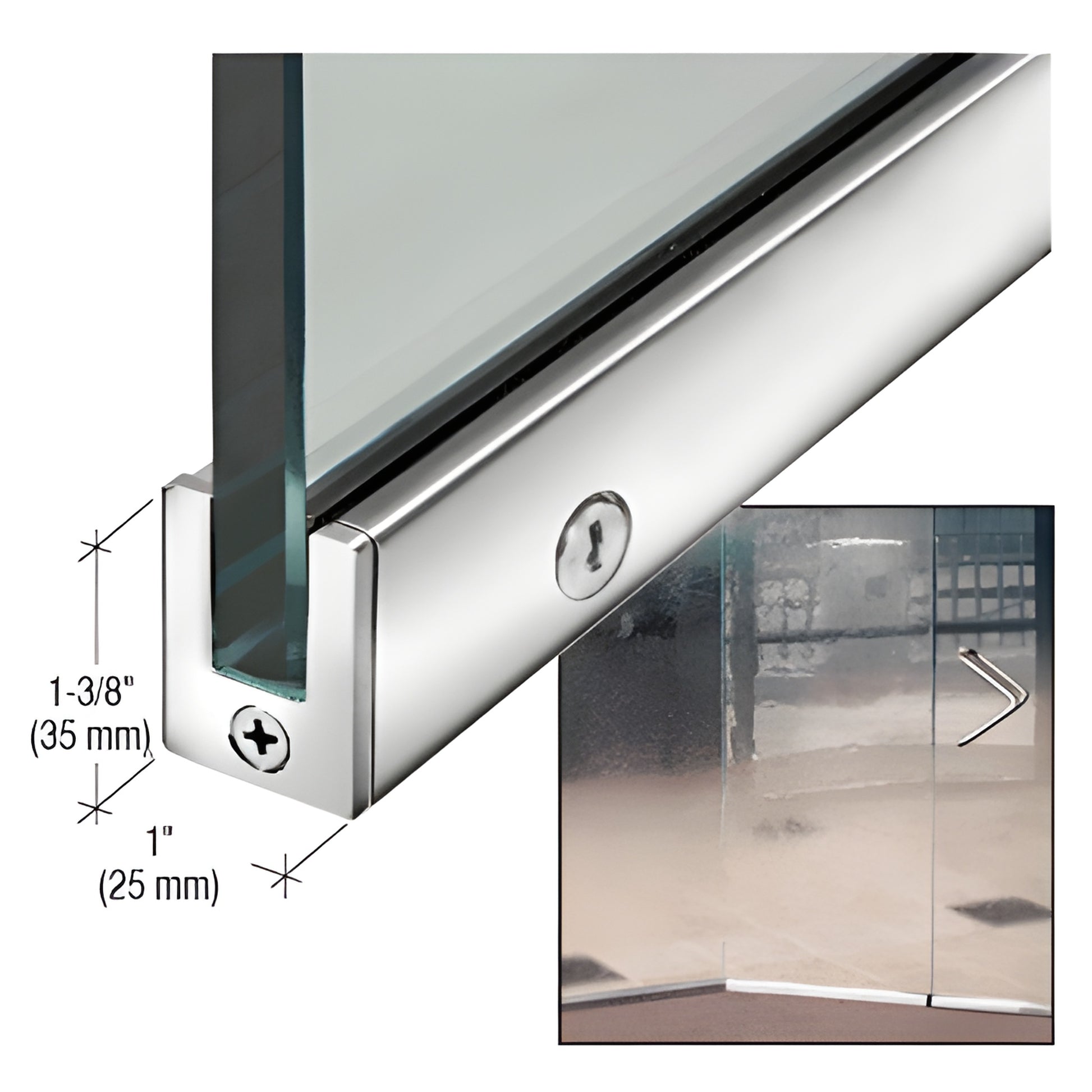

CRL Polished Stainless 1-3/8" RH Slim Door Rail w/ Lock Custom Length
CRL Polished Stainless 1-3/8" RH Slim Door Rail w/ Lock Custom Length
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP35PS12CR
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Glazing Type
Monolithic Tempered Glass
Height
1-3/8 in. (35 mm)
Includes Lock
7150 Cam Lock
Length
Specify
Maximum Panel Weight
205 lbs. (93 kg)
Maximum Panel Width
42 in. (1067 mm)
Profile
Slender
Width
1 in. (25 mm)
Overview
- For 1/2" (12 mm) monolithic tempered glass
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
CRL Slender Profile Door Rails — slim 1" rails engineered for 1/2" tempered glass shower and storefront applications. Rails can be fabricated to required lengths and supplied with or without locks. Custom finishes and custom-length rails available on special order.
NOTE: Not all door closers or locking hardware are compatible with these rails. For compatibility details, contact CRL Technical Sales.
Handing Example: Handing is determined by viewing the rail from the exterior. A left-hand (LH) rail hinges on the left; the lock unit will be positioned near the right-hand end of the rail when viewed from the outside.
Product Warning:
- Custom rails are made to your specified size and finish and are not returnable.
- Glass fabrication is required for a lock—see the template for details.
- Maximum system width: 42" (1.07 m).
SKU: SP35PS12CR
Need help selecting the right slender profile door rail for your tempered glass project? Contact CRL Customer Service to confirm compatibility, request templates, or place a custom order.
