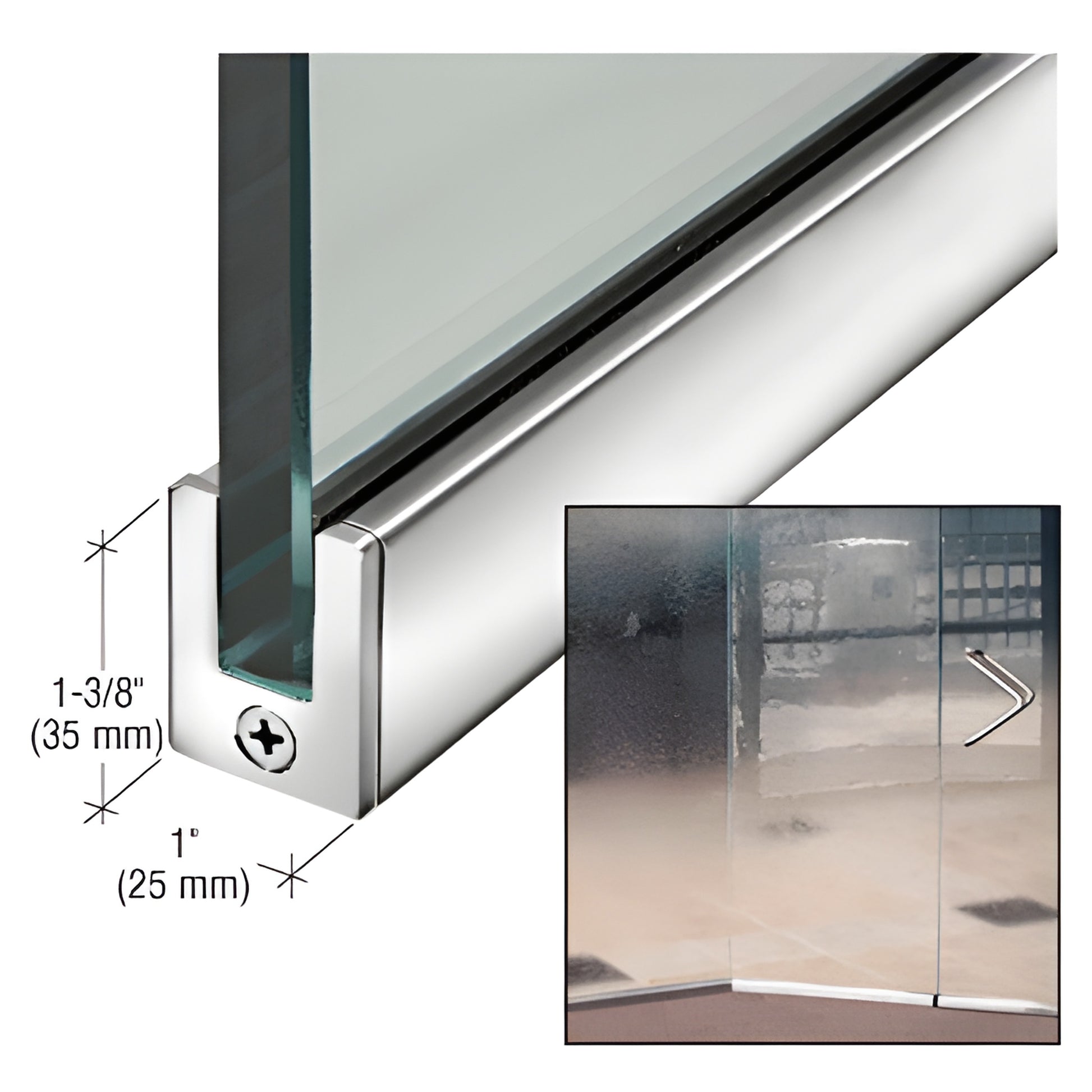

CRL Polished Stainless 1-3/8" Slim Glass Door Rail - No Lock
CRL Polished Stainless 1-3/8" Slim Glass Door Rail - No Lock
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP35PS12C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/8 in. (35 mm)
Includes Lock
No
Profile
Slender
Width
2-1/2 in. (64 mm)
Overview
- For 1/2" (12 mm) glass
- Use monolithic tempered glass
- Custom length and finish — made to order
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails (SKU: SP35PS12C) can be fabricated to the exact length you require, with or without locks. Custom finishes are available on special order to match architectural stainless steel hardware and glass door systems.
NOTE: Not all closer or locking hardware is compatible with these rails. For compatibility details, contact the CRL Technical Sales Department.
Product Warning:
Maximum width for the slender profile door rail system is 42" (1.07 m).
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For full maintenance guidance, see the Stainless Steel Disclaimer in the Technical References section below.
For custom quotes, compatibility checks, or to order this slender profile door rail for 1/2" tempered glass, contact CRL Sales or request a quote today.
Specifications
CAD Drawings - dwg
