CRL Polished Stainless 120" Cladding for B5S Series Standard Square Aluminum Base Shoe
Item# BSCPS10
Shipping Weight: 6
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Alloy304
- Finish/Color:Polished Stainless Steel
- Height4-3/16 in. (106.4 mm)
- Length120 in. (3048 mm)
- MaterialStainless Steel
- Thickness.035 In. (.889 mm)
- Width13/16 in. (20.6 mm)
- Adhere with Cladding Tape or Silicone Sealant
- Available in Eight Architectural Finishes
- Custom Cutting and Mitering Service Available
- Use Monolithic Tempered Glass
CRL Cladding allows the user to match any of six architectural finishes offered in Cap Railing. It can be secured to the Base Shoe using Cladding Tape or Silicone Sealant. CRL Cladding Tape and Silicone Sealant come with attachment instructions.
NOTE: Sold by individual pieces. Base Shoe requires two pieces for coverage on both sides.

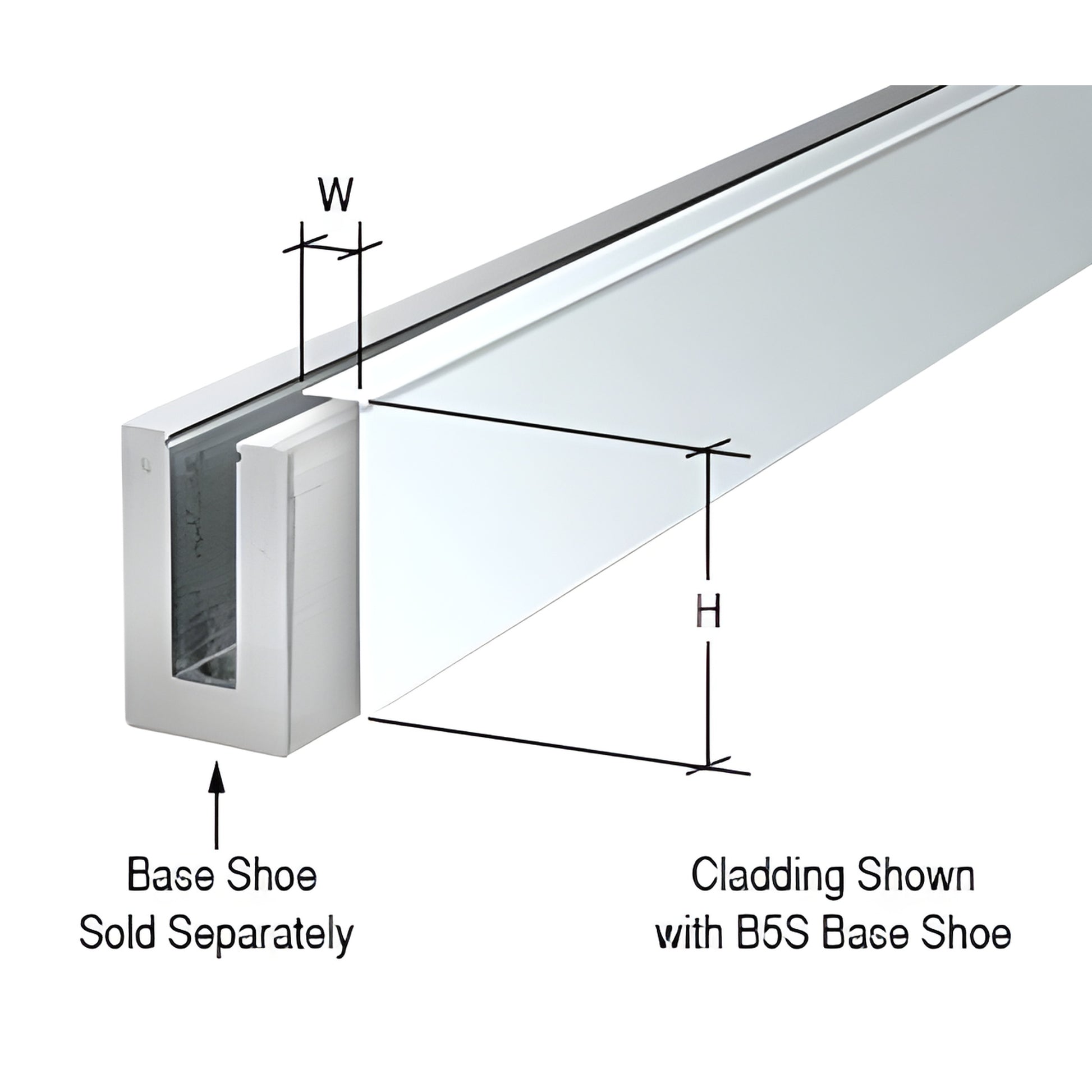

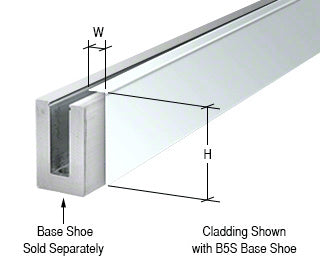

W: 7/8" (22.2 mm)
H: 4-3/16" (106.4 mm)
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
