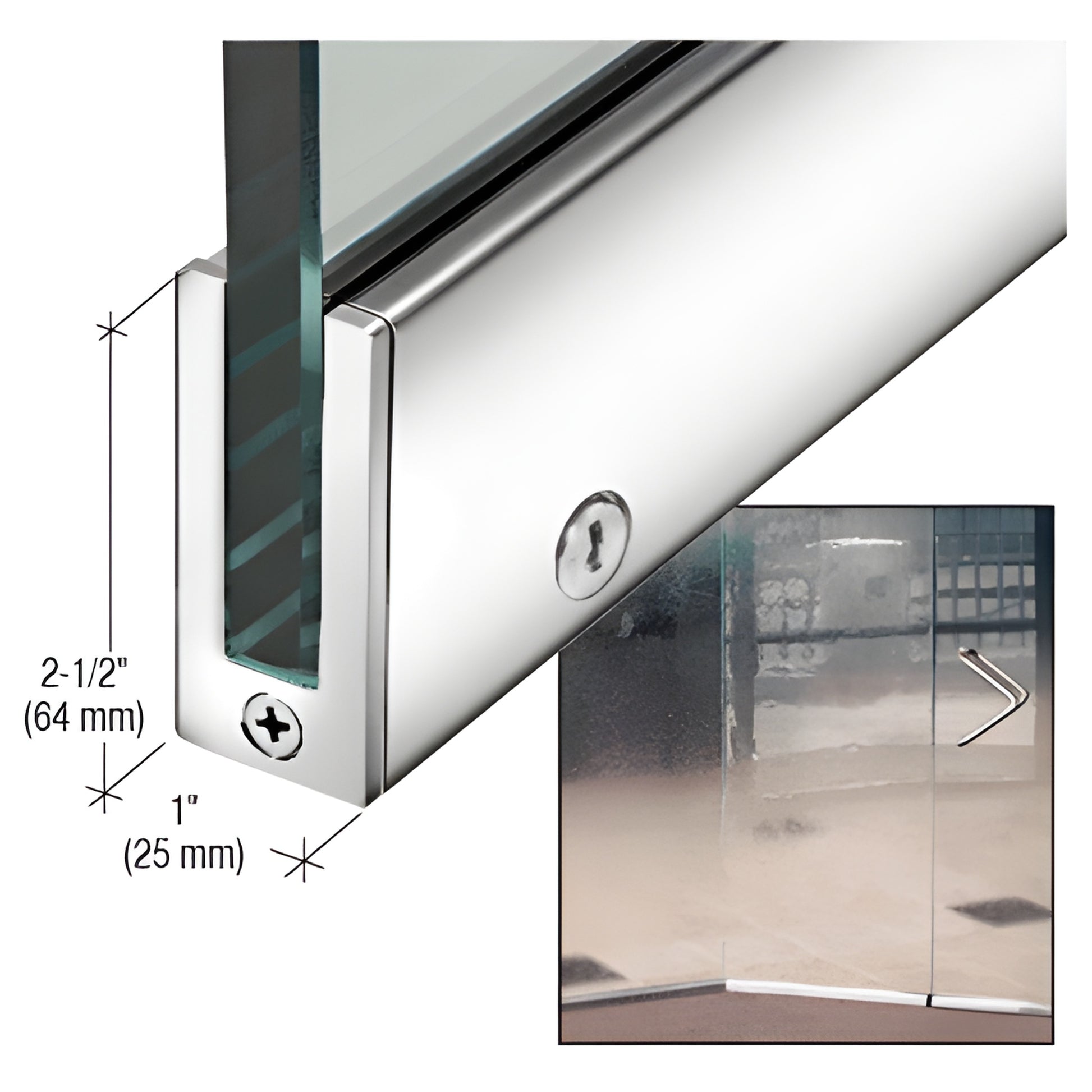

CRL Polished Stainless 2.5" RH Slim Door Rail w/ Lock, Custom Length
CRL Polished Stainless 2.5" RH Slim Door Rail w/ Lock, Custom Length
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP64PS12CR
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Glazing Type
Monolithic Tempered Glass
Height
2-1/2 in. (64 mm)
Includes Lock
7150 Cam Lock
Length
Specify
Maximum Panel Weight
205 lbs. (93 kg)
Maximum Panel Width
42 in. (1067 mm)
Profile
Slender
Width
1 in. (25 mm)
Overview
- Fits 1/2" (12 mm) monolithic tempered glass
- Available in three heights — with or without a lock
- Dry-glaze slender profile door rails: only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available by special order
All of our CRL Slender Profile Door Rails (SKU: SP64PS12CR) are fabricatable to required lengths and offered with optional lock units to accommodate 1/2" tempered glass doors. Custom finishes and special-order vertical stiles are available for project-specific needs.
Compatibility: Not all closers or locking hardware are compatible with these rails. For compatibility guidance and installation templates, contact the CRL Technical Sales Department.
Handing: Handing is determined from the exterior. A left-hand (LH) rail hinges on the left, so the lock unit will be positioned near the right end of the rail when viewed from outside.
Product Warning:
Custom rails are made to your specified size and finish and are not returnable. Glass fabrication is required for lock installation — please use the provided template. Maximum width for the Slender Profile Door Rail System is 42" (1.07 m).
For technical questions, compatibility checks, or to place an order for SKU SP64PS12CR, contact CRL Technical Sales or Customer Service.
Specifications
CAD Drawings - dwg
