- For 1/2" (12 mm) monolithic tempered glass
- Designed for interior use only
- Available in three heights with or without a lock
- Dry-glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
- Use monolithic tempered glass for display case doors

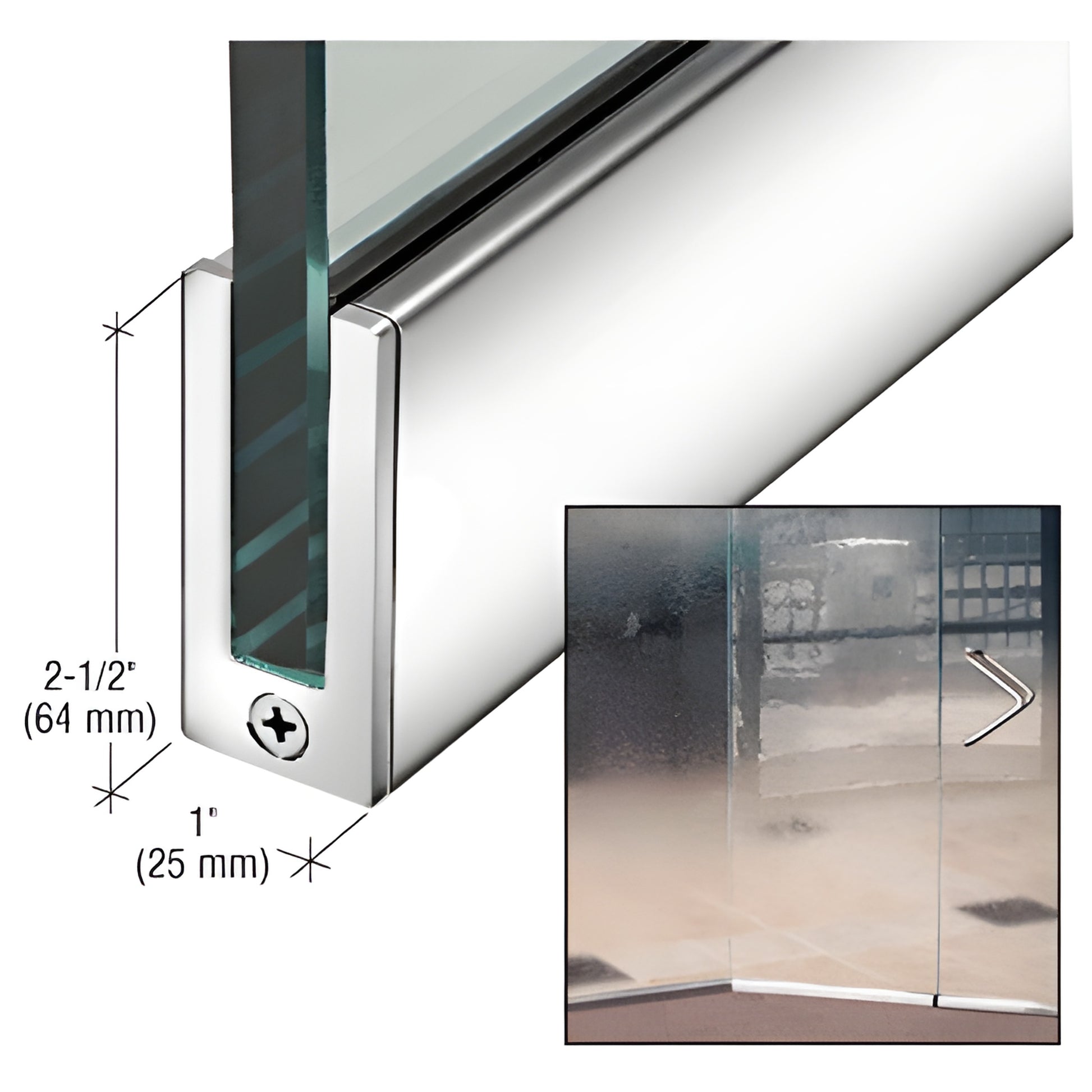

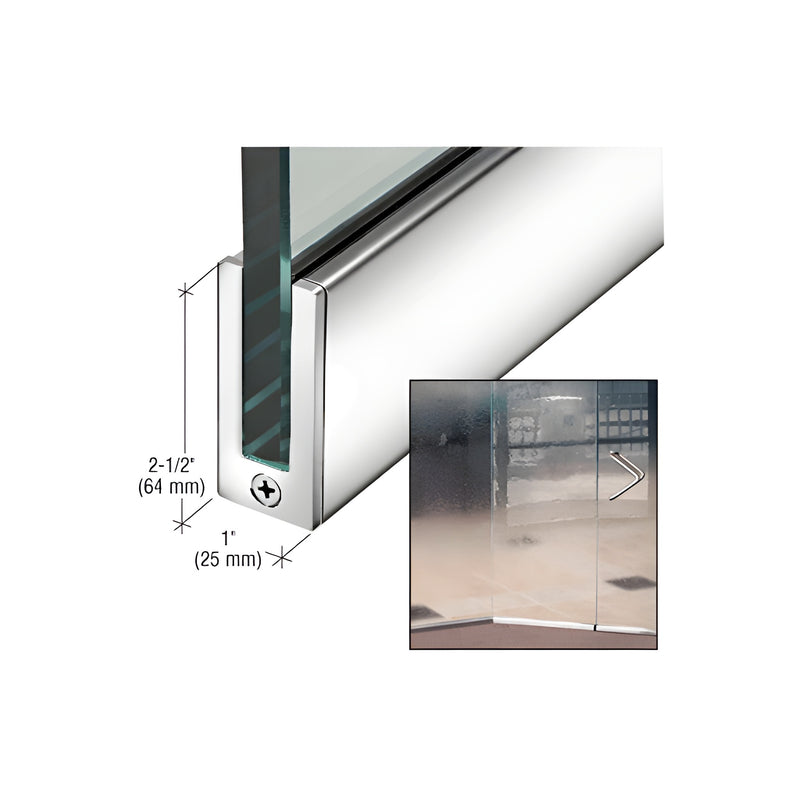

CRL Slender Profile Door Rails — SKU: SP64PS12S measure just 1" (25 mm) wide and are offered in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). Engineered for glass display cases and interior storefronts, these slender-profile rails provide a low-visibility, high-strength solution for 1/2" tempered glass door applications. Long-tail features include dry-glaze installation, compatibility with display-case cam locks, and field-adjustable fit for retrofit or new construction projects.
All rails are prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) to accommodate overhead door closers, floor-mounted closers, or pivot hardware. Rails can be fitted with the 7150 Series Cam Lock for display-case security; other lock options may be available on special order.
Constructed of aluminum and clad in alloy 304 stainless steel, the rails deliver corrosion-resistant durability with a lasting finish. Designed for field installation, they include end caps and adjustment wrenches to simplify on-site fitting and compensate for unexpected installation variations.
ORDERING INFORMATION:
• Compatible pivots: CRL9040WBP top pivot, 1NT402 bottom pivot.
• End caps included with all slender profile door rails.
• Specify door rail length (including end caps) when ordering custom lengths.
• When ordering the 7150 Series Cam Lock, specify door handing.
• Slender Profile Door Rail Pivot Inserts are sold separately.
• Installation instructions and adjustment wrenches included.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For pricing, availability, or to order the SP64PS12S slender profile door rail for 1/2" tempered glass display cases, contact CRL or your authorized distributor today
