CRL Brushed Stainless 2-1/2" Slender Glass Door Rail 35-3/4" No Lock

• For 1/2" (12 mm) tempered glass
• Designed for interior use only
• Available in three heights with or without a lock
• Dry-glaze slender profile door rails are only 1" (25 mm) wide
• Brushed or polished stainless steel finishes
• Custom 1" (25 mm) slender profile vertical stiles available on special order
• Use monolithic tempered glass

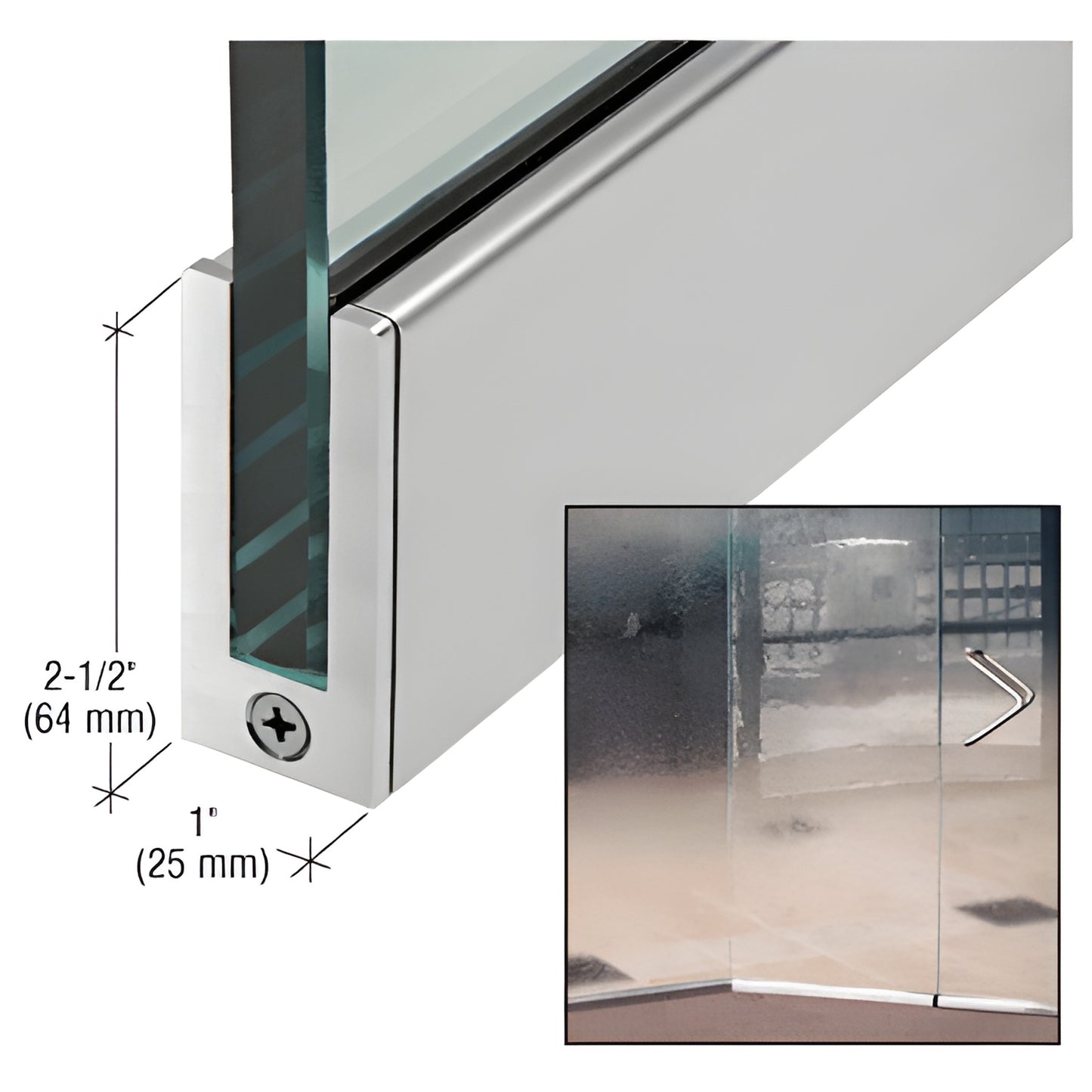

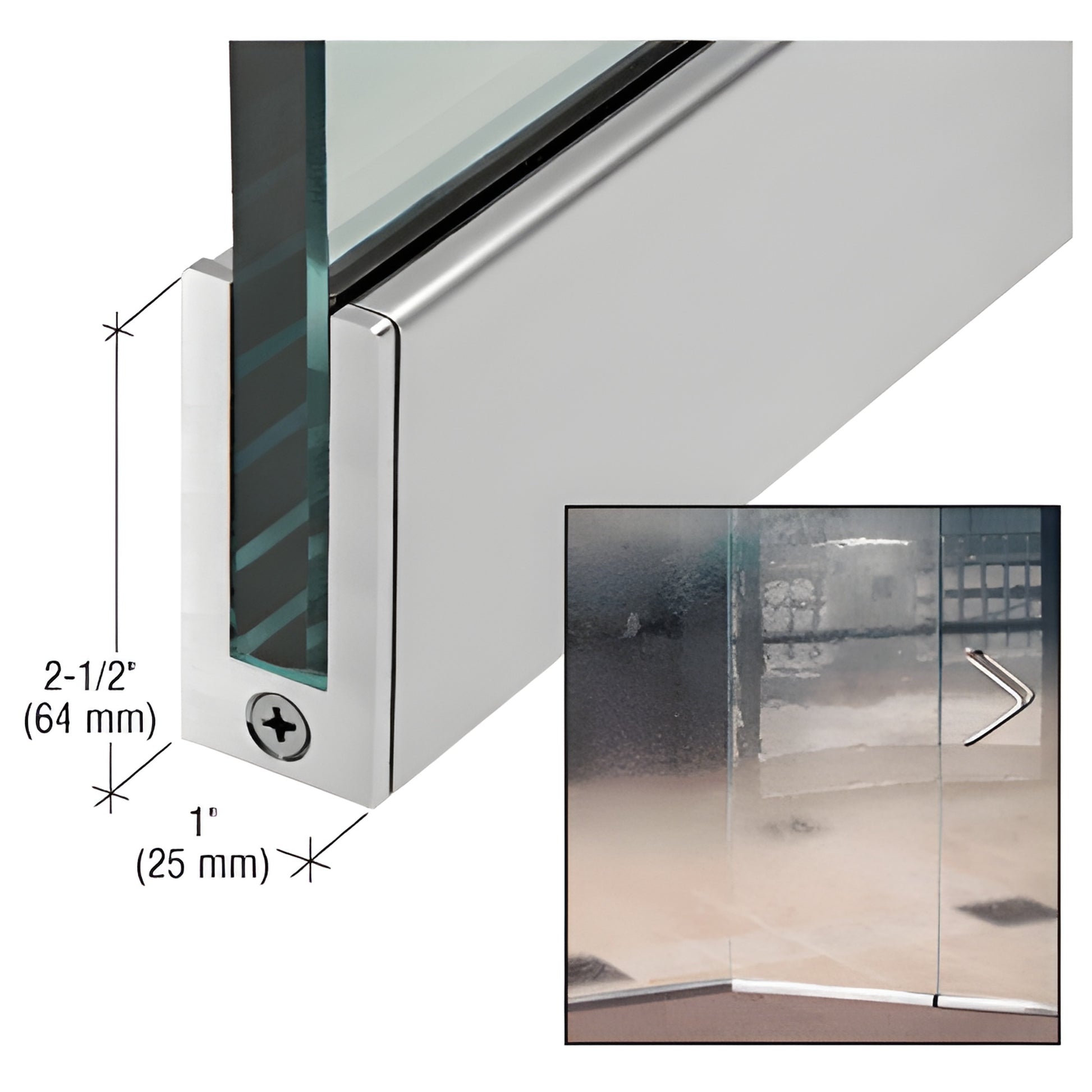

CRL Slender Profile Door Rails measure only 1" (25 mm) wide and come in three heights — 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). Rails are prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) for use with overhead closers, floor-mounted closers, or pivots. All rails can be fitted with the 7150 Series Cam Lock for display case applications; other locks may be available on special order.

All Slender Profile Rails are designed for field installation and include adjustments to compensate for on-site variances. Rails feature an aluminum core clad in alloy 304 stainless steel for a durable, long-lasting finish — ideal for glass display cases, interior glass doors, and storefront glass panels.

ORDERING INFORMATION:
• Compatible pivots: CRL9040WBP Top Pivot, 1NT402 Bottom Pivot.
• End caps included with all Slender Profile Door Rails.
• Specify door rail length (including end caps) when ordering custom lengths.
• When the 7150 Series Cam Lock is required, specify door handing.
• Rails are prepped to receive Slender Profile Door Rail Pivot Inserts (sold separately).
• Installation instructions and adjustment wrenches included.
