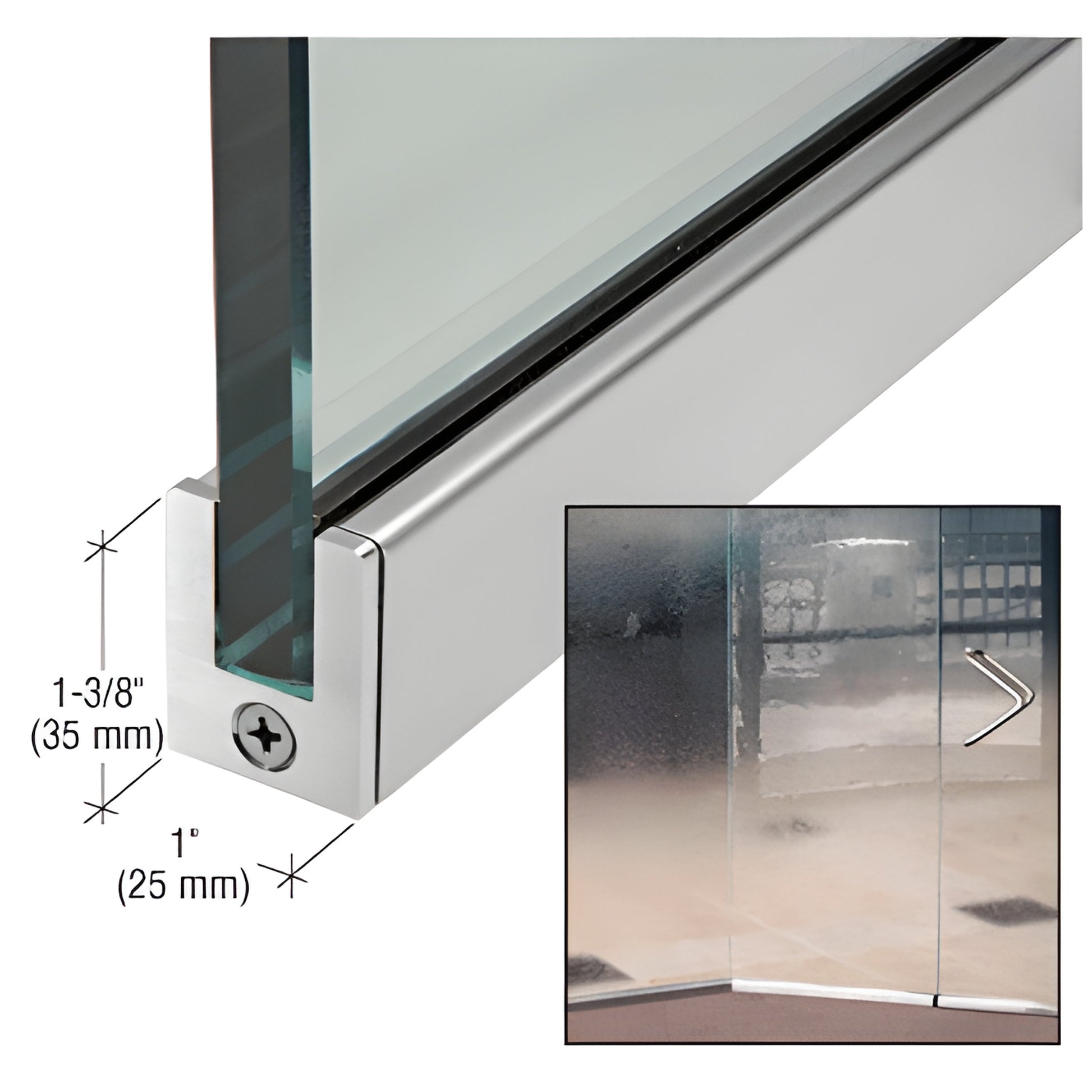

• Brushed stainless slender glass door rail (SKU SP35BS12S) for 1/2" (12mm) glass, 35mm high, 25mm wide, end cap shown
1 1

CRL

CRL Brushed Stainless Slender Door Rail 1-3/8 in x 35-3/4 in No Lock

CRL Brushed Stainless Slender Door Rail 1-3/8 in x 35-3/4 in No Lock

$637.02 CAD
$637.02 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SP35BS12S
Shipping Weight: 4.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/8 in. (35 mm)
Includes Lock
No
Length
35-3/4 in. (908 mm)
Profile
Slender
Width
2-1/2 in. (64 mm)

Overview

  • For 1/2" (12 mm) tempered glass
  • Designed for interior use only
  • Available in three heights with or without a lock
  • Dry-glaze slender profile door rails are only 1" (25 mm) wide
  • Brushed or polished stainless steel finishes
  • Custom 1" (25 mm) slender profile vertical stiles available on special order
  • Use with monolithic tempered glass

CRL Slender Profile Door Rails (SKU: SP35BS12S) measure only 1" (25 mm) wide and are offered in three rail heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). These slender profile glass door rails are prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) to accommodate overhead door closers, floor-mounted closers, or pivots. Rails can be fitted with the 7150 Series Cam Lock for display case applications; other locking options may be available on special order.

All slender profile rails are designed for field installation and include adjustment features to compensate for common installation variances. Rails are constructed from aluminum and clad in alloy 304 stainless steel for a durable, lasting finish—ideal for glass display doors, frameless storefronts, and interior glass partitions.

Ordering & compatibility:
• Compatible pivots: CRL9040WBP Top Pivot and 1NT402 Bottom Pivot.
• End caps included with all slender profile door rails.
• Specify door rail length (including end caps) when ordering custom lengths.
• Specify door handing when ordering the 7150 Series Cam Lock.
• Slender profile rails are prepped to receive Slender Profile Door Rail Pivot Inserts (sold separately).
• Installation instructions and adjustment wrenches are included.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images show the actual product or a close representation; colors may vary depending on your monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care instructions.


Optimize your interior glass projects with CRL slender profile glass door rails (SKU: SP35BS12S). Contact CRL or add to cart

Specifications

CAD Drawings - dwg
Slender Profile Door Rail CAD Drawings.dwg
