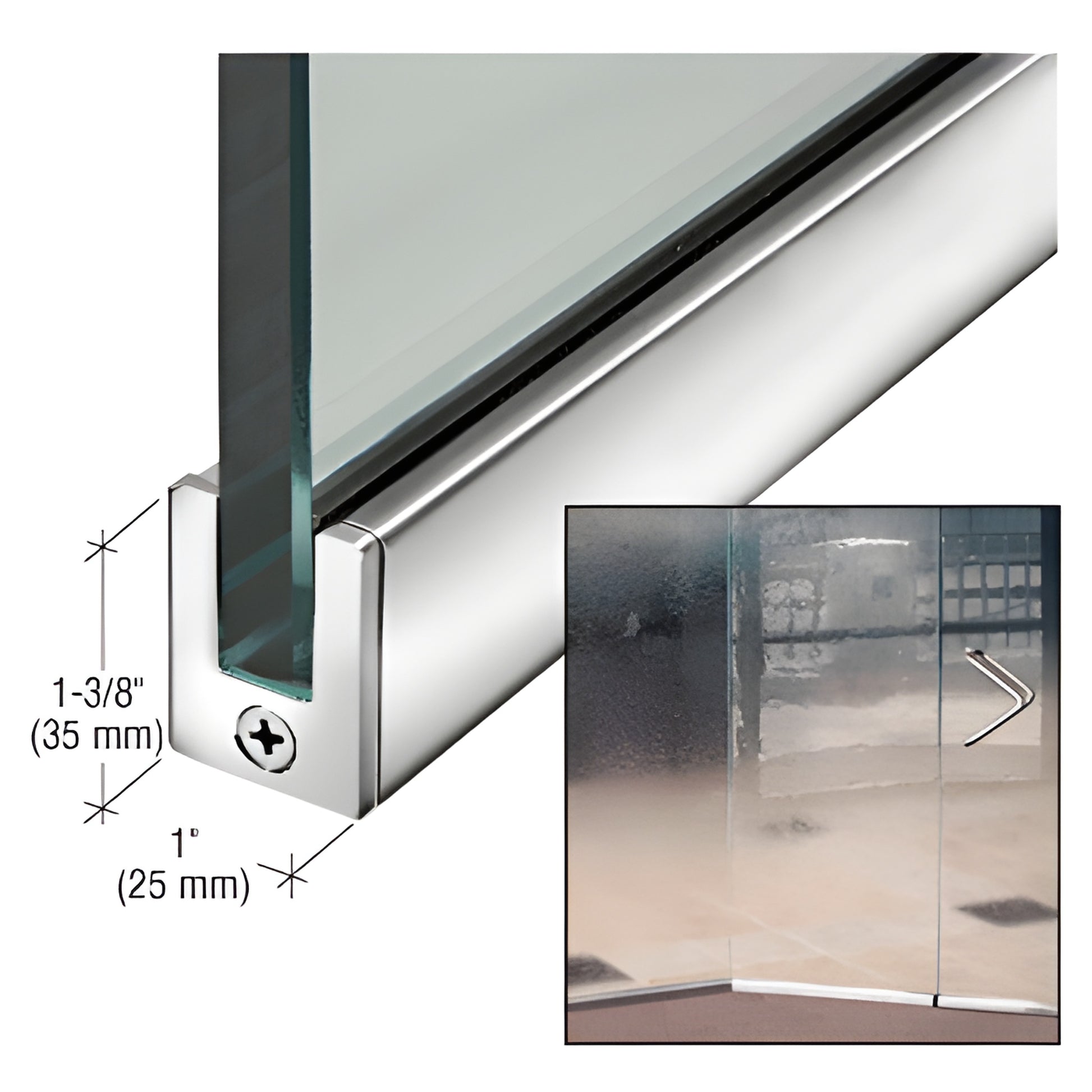

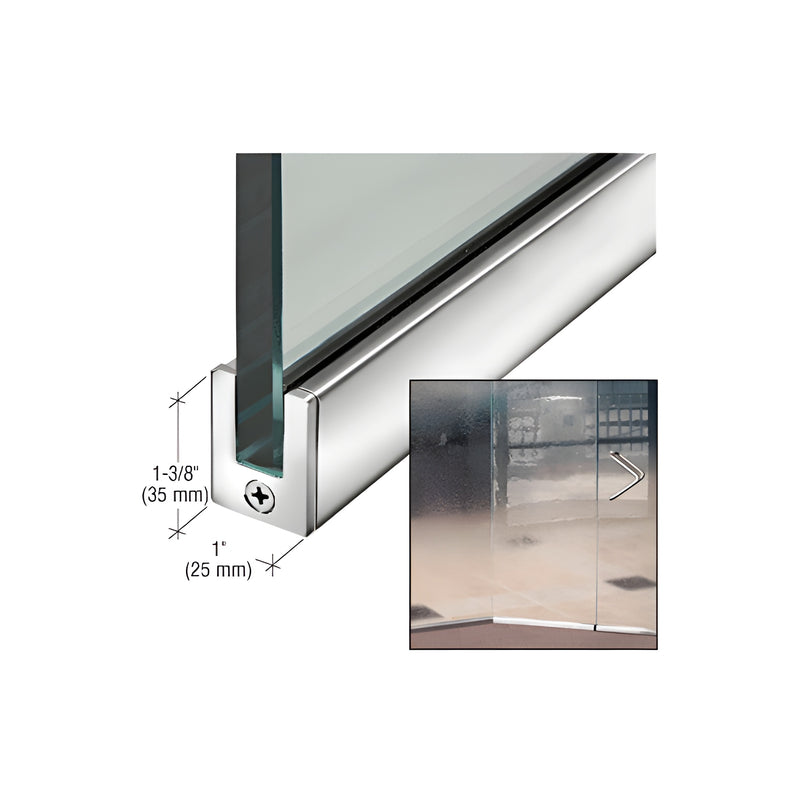

CRL Polished Stainless 1-3/8" Slender Door Rail 35-3/4" No Lock

• For 1/2" (12 mm) tempered glass
• Designed for interior use only
• Available in three heights with or without a lock
• Dry-glaze slender profile door rails—only 1" (25 mm) wide
• Brushed or polished stainless steel finishes
• Custom 1" (25 mm) slender profile vertical stiles available on special order
• Use with monolithic tempered glass

CRL Slender Profile Door Rails (SKU: SP35PS12S) measure only 1" (25 mm) wide and are offered in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). Engineered for interior glass doors and display cases, these dry-glaze slender profile rails support 1/2" tempered glass and are prepped to accept any of the three Slender Profile Rail Pivot Inserts (ordered separately) for use with overhead closers, floor-mounted closers, or pivots. Rails can be fitted with the 7150 Series Cam Lock for display case security; other locking options may be available by special order.

All rails are designed for field installation and provide on-site adjustability to compensate for installation variances. Constructed of aluminum and clad in alloy 304 stainless steel, they deliver a durable finish suitable for retail display, museum cases, or architectural interior glass doors. These slender rails are an ideal solution when a minimalist stainless-steel door rail for tempered glass is required.

ORDERING INFORMATION:

• Compatible pivots: CRL9040WBP Top Pivot, 1NT402 Bottom Pivot
• End caps included with all slender profile door rails
• Specify door rail length (including end caps) when ordering custom lengths
• When ordering the 7150 Series Cam Lock, specify door handing
• Slender profile rails are prepped for Slender Profile Door Rail Pivot Inserts (sold separately)
• Installation instructions and adjustment wrenches included
