- Designed for interior use only
- For 1/2" (12 mm) tempered glass
- Available in three heights with or without a lock
- Dry glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
- Use monolithic tempered glass

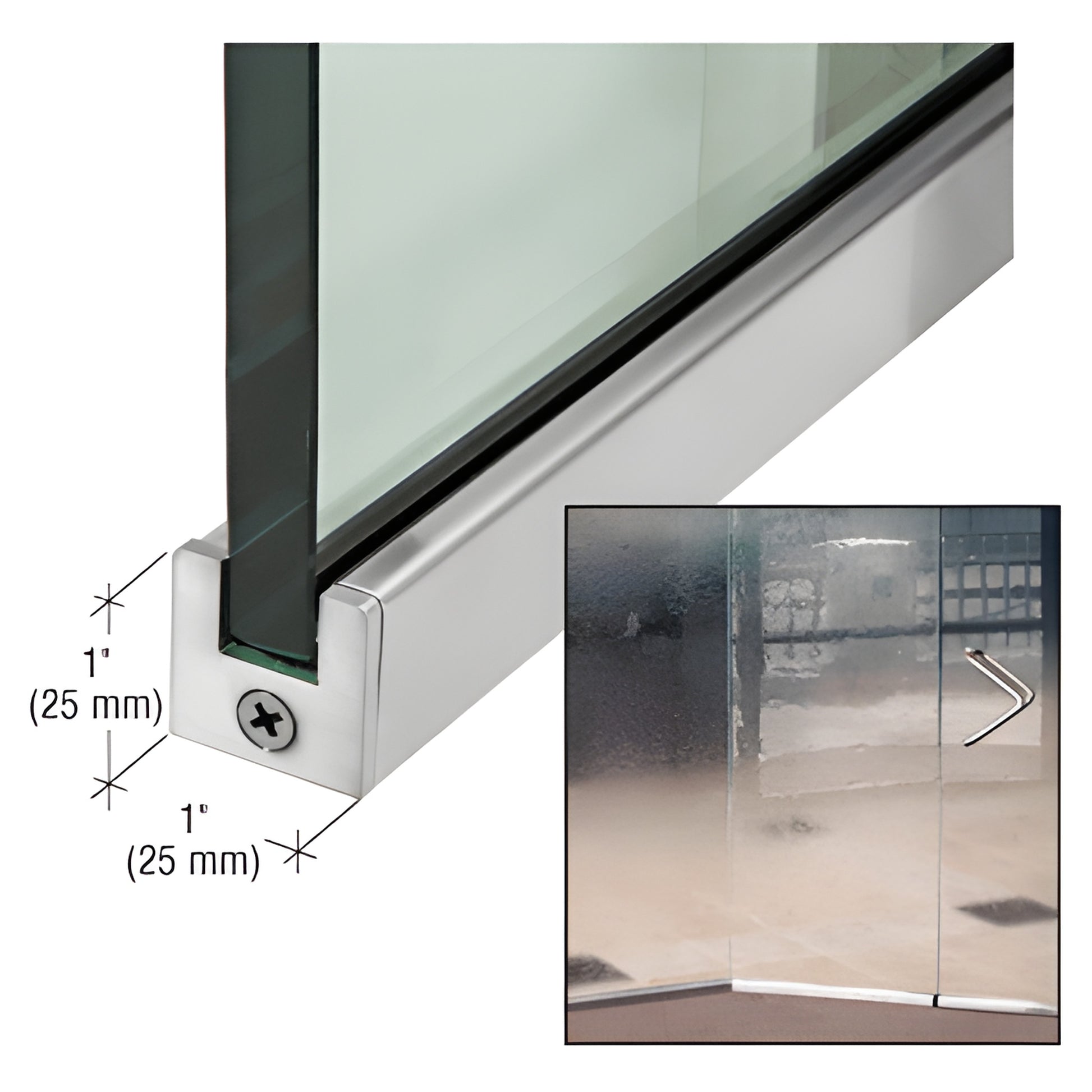

CRL Slender Profile Door Rails measure only 1" (25 mm) wide and are available in three heights: 1", 1-3/8", and 2-1/2" (25, 35, and 64 mm). They are prepped to receive any of the three Slender Profile Rail Pivot Inserts (ordered separately) to accommodate overhead closers, floor-mounted closers, or pivots. All rails can be fitted with the 7150 Series Cam Lock for display case applications; other locking options may be available on special order.
All Slender Profile Rails are designed for field installation and are easily adjusted to compensate for unexpected site conditions. Rails feature aluminum construction clad in alloy 304 stainless steel for a durable, lasting finish—ideal for glass display cases, interior glass doors, and store fixtures that require a narrow stainless steel profile.
ORDERING INFORMATION: • Compatible pivots: CRL860BS Top Pivot, 1NT402 Bottom Pivot.
• End caps are included with all Slender Profile Door Rails.
• Specify door rail length (including end caps) when ordering custom length rails.
• When 7150 Series Cam Lock is required, specify handing of the door.
• Slender Profile Rails are prepped to receive any Slender Profile Door Rail Pivot Inserts (sold separately).
• Installation instructions and adjustment wrenches are included.
SKU: SP25BS12S
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before submitting your order. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Shop now to order slender-profile stainless steel door rails for 1/2" tempered glass or contact us for custom lengths and locking options.
