Product Details
- For Use with Glass Up to 1-1/16" (27 mm)
- Complete with Hardware to Mount to Post or Column
- Glass Attachments Are Sold Separately
- Use Monolithic Tempered Glass

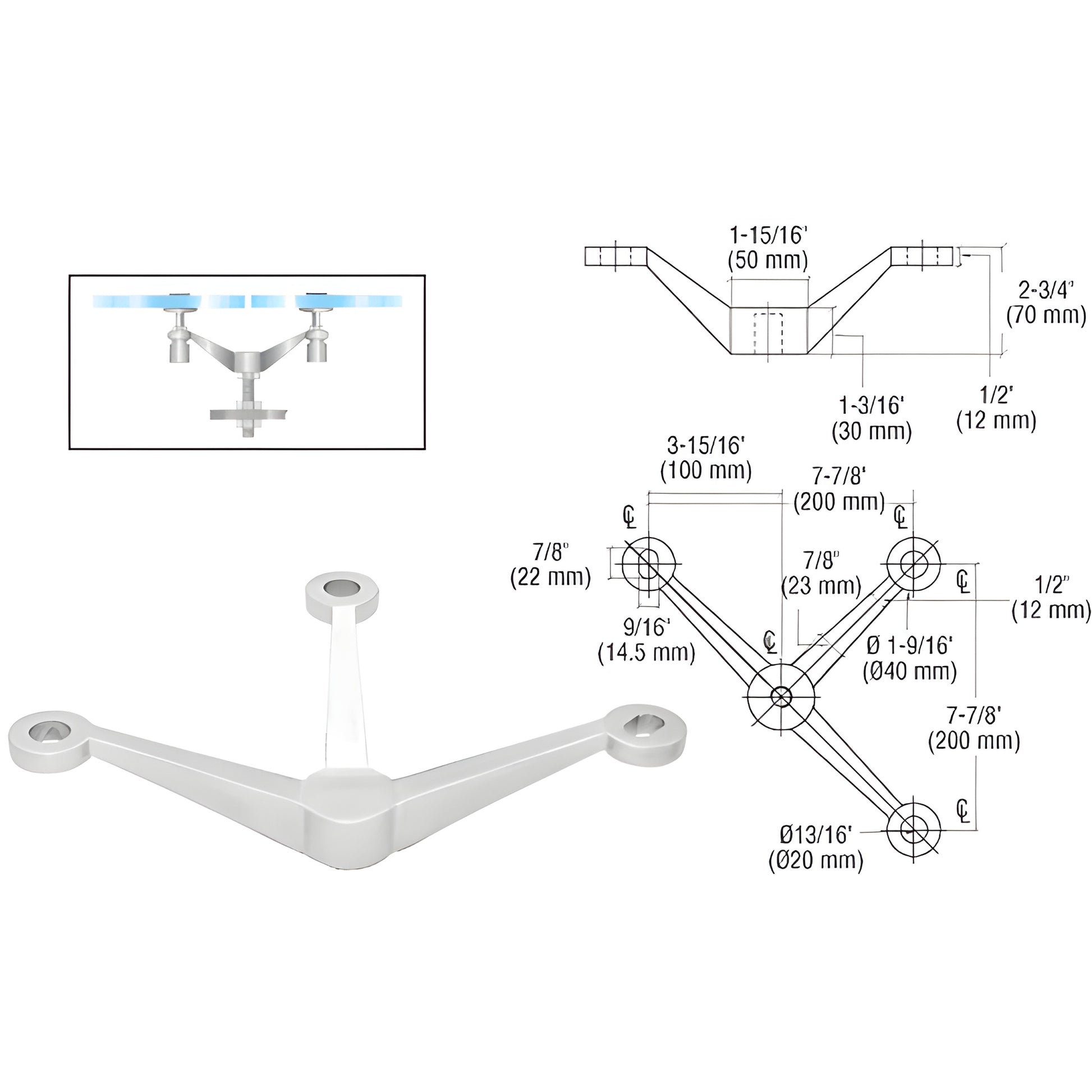

This CRL Three Arm Fitting is used to attach three inline glass panels to a structural center post where they abut to a soffit corner. Comes with 16 x 99.5 mm (3-7/8") stainless steel threaded stud and three matching nuts with washers. Replacement Stud Set is available.
For companion fittings use Cat. No. PMH1LBS, PMH1LPS, PMH2VBS, PMH2BVPS, PMH4BS, or PMH4PS Fittings.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
