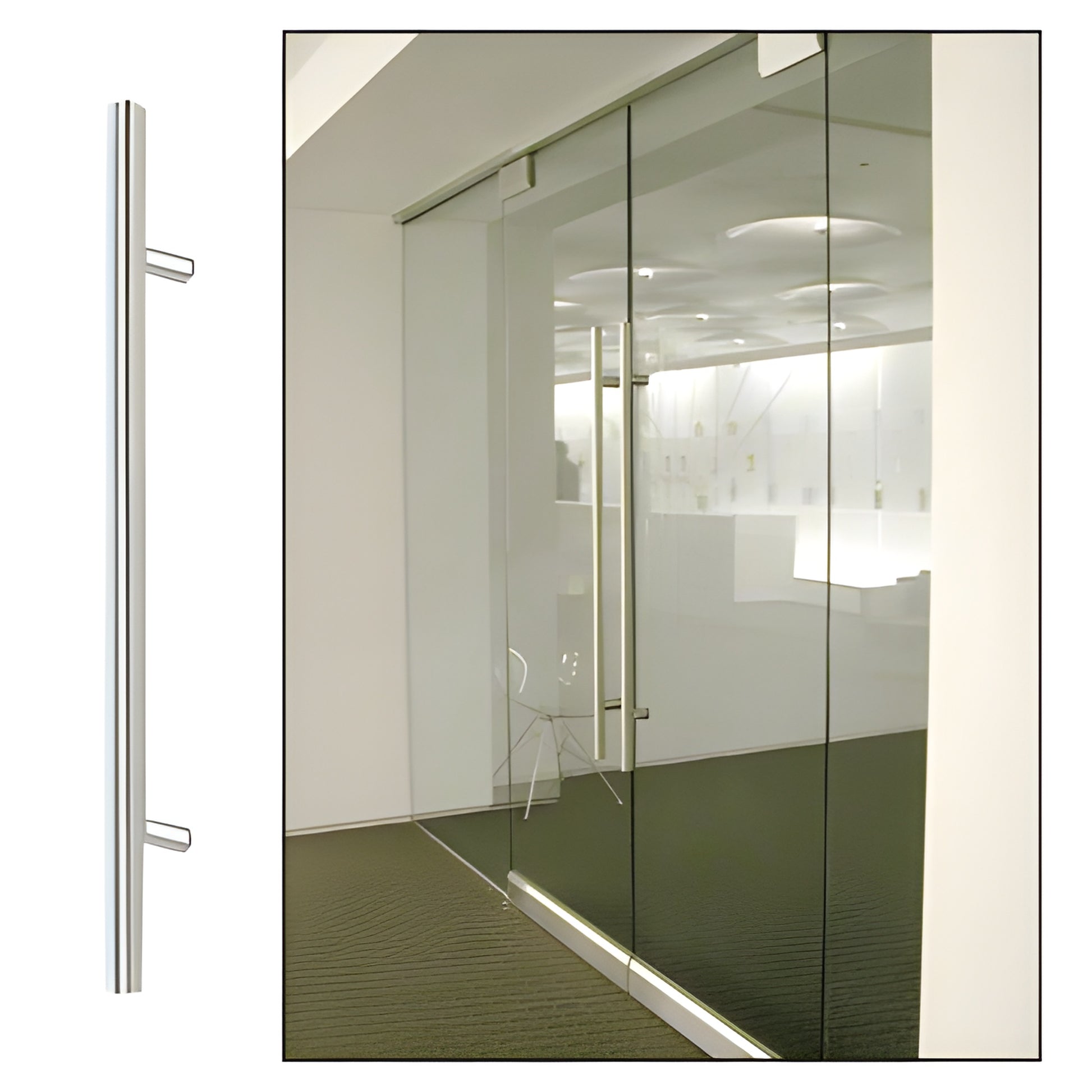

• Polished stainless steel back-to-back ladder pull for glass doors, 42" overall, 1-1/4" dia. SKU 42LPSPS
1 1

CRL

CRL 42 in Polished Stainless Ladder Door Pull Handle - Single-Sided

CRL 42 in Polished Stainless Ladder Door Pull Handle - Single-Sided

$376.41 CAD
$376.41 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 42LPSPS
Shipping Weight: 6.151 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
30 in. (762 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Single Sided
Overall Length
42 in. (1067 mm)

Overview

  • Five sizes: 24" to 48" overall height (610 mm to 1.22 m)
  • Finishes: Brushed Stainless, Polished Stainless, Matte Black
  • Custom lengths, designs, and finishes available on special order — Custom Pull Order Forms
  • Material: 304 grade stainless steel

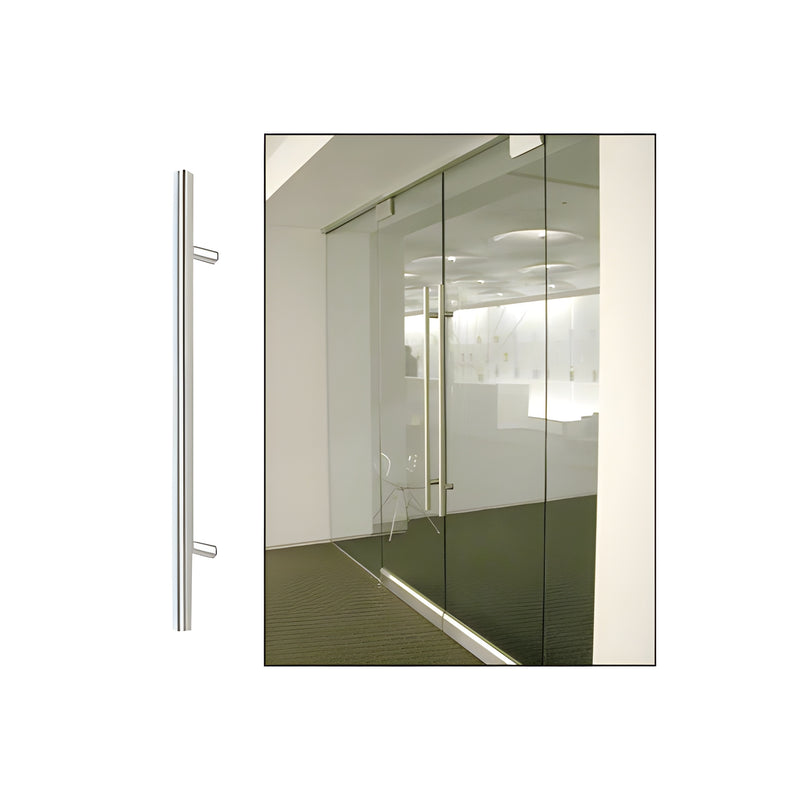

CRL Straight Style Ladder Pulls (SKU: 42LPSPS) are designed for commercial and architectural glass door applications. Each back-to-back ladder pull includes two mid-posts and mounting fasteners for 3/8" to 3/4" (10 to 19 mm) tempered glass. Fasteners for 1-3/4" (44 mm) wood or aluminum doors are available separately. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum mid-post spacing is 72" (1.83 m).


Specifications:
3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors


Construction:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing


Glass Fabrication:
Requires two 5/8" (16 mm) diameter holes


Note: View all back-to-back ladder pulls in available sizes and finishes.


Most shipping weights are approximate. If exact weight is required to calculate shipping costs, please contact CRL Customer Service before placing your order. Product images are representative; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care details.


Key differentiators: Commercial-grade 304 stainless construction, back-to-back
