CRL P6 42 in Polished Stainless Glass Spider Railing Kit 135°
Item# P642APS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachments sold separately
- Two standard stainless finishes; custom powder paint finishes available
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available on special order

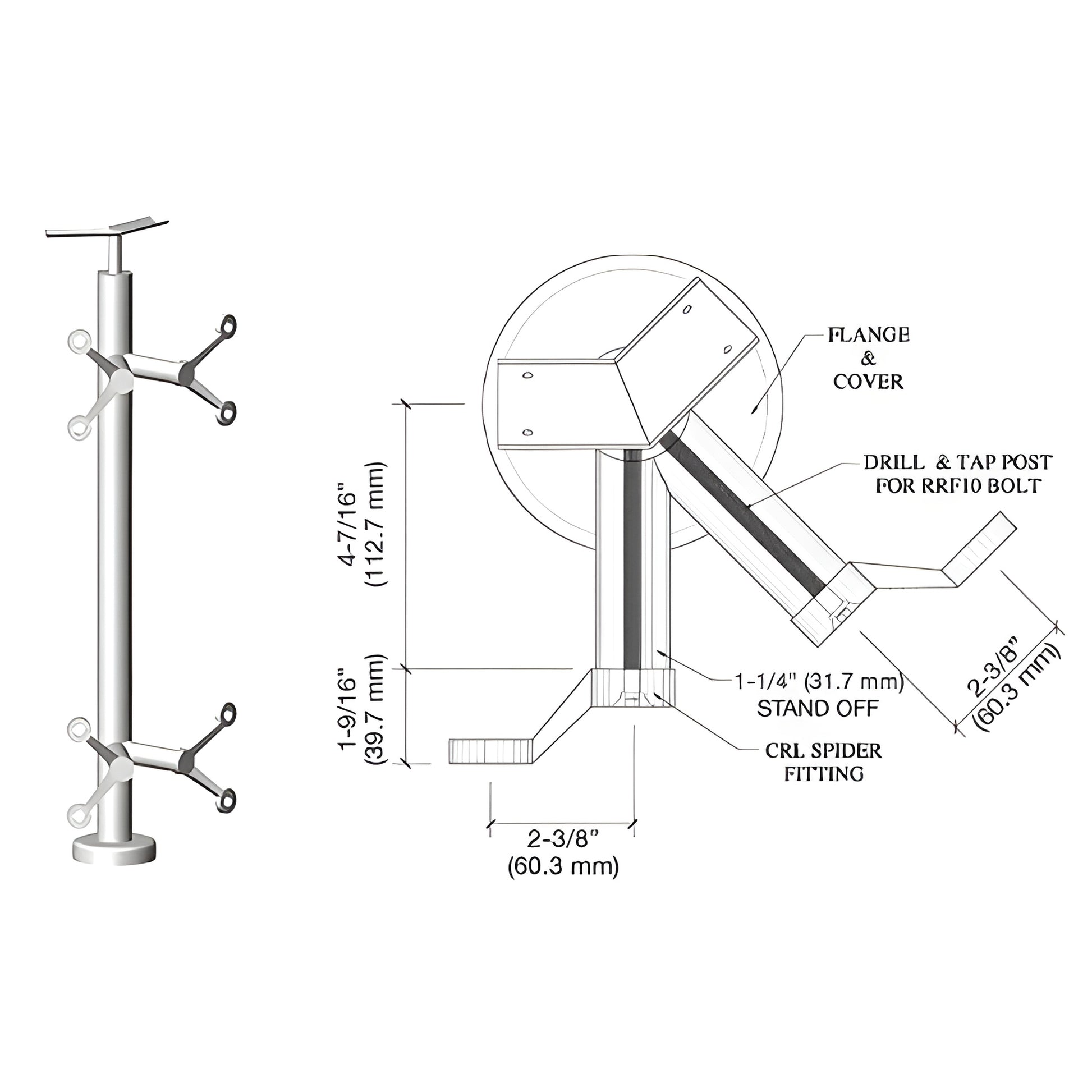

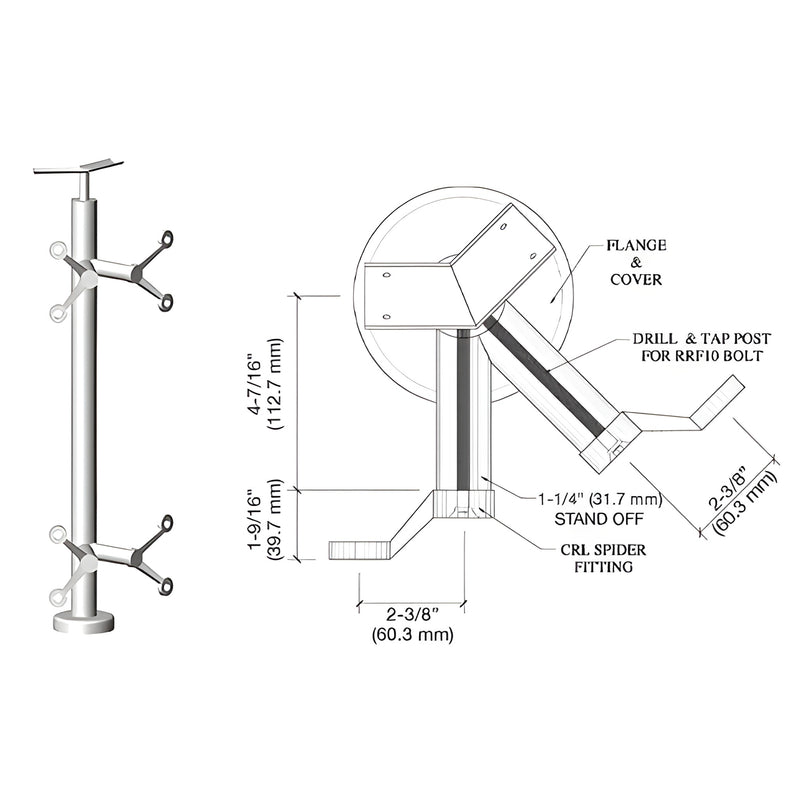

CRL P6 Spider Post Railing Kits (SKU: P642APS) are constructed from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing for durable guard rail and handrail systems. Designed to support 1-1/4" (32 mm) or 1-1/2" (38 mm) diameter horizontal tubing, each kit includes a base plate, welded top saddle, and factory-mounted fixed glass spider fittings—ideal for stainless steel spider post railing kits for glass panels and balcony or stair applications. For top-rail attachment screws specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; those must be purchased separately.
Most shipping weights are approximate and have not been verified. If you need exact weight for shipping cost calculations, contact CRL Customer Service prior to placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
For pricing, availability, or to order SKU P642APS, contact CRL Customer Service or add to cart now.
