CRL 42 in Polished Stainless P6 Spider 90° Corner Glass Railing Kit
Item# P642LPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately (must be purchased separately)
- Two standard stainless finishes; custom powder-coat finishes available
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available on special order

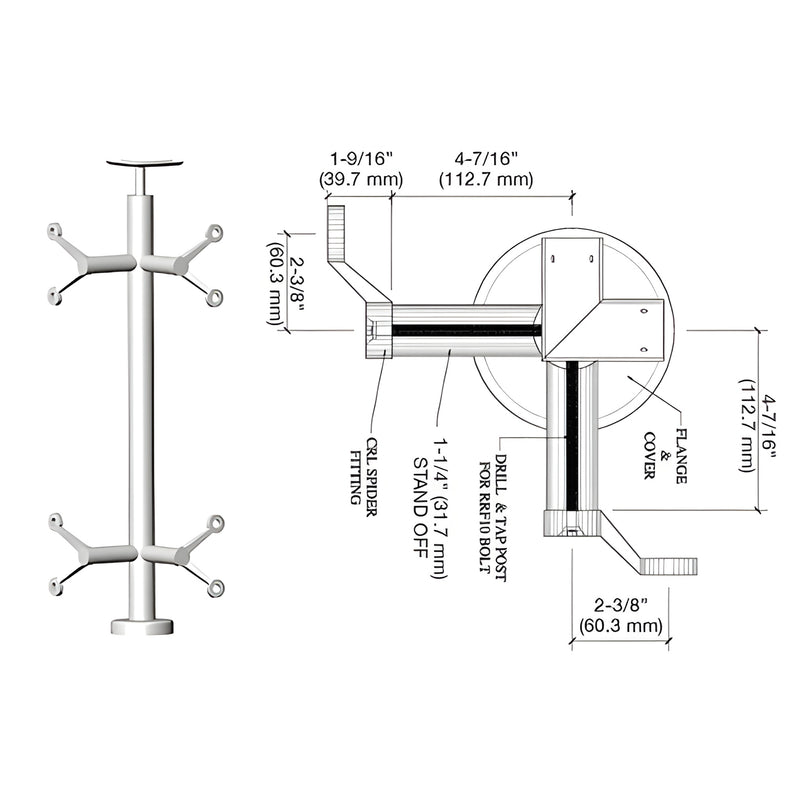

CRL P6 Spider Post Railing Kits (SKU: P642LPS) are manufactured from Schedule 40 1.9" (48 mm) diameter stainless steel tubing and are engineered for guard rail and hand rail applications. These stainless steel spider post railing kits support 1-1/4" (32 mm) or 1-1/2" (38 mm) diameter horizontal tubing and include a base plate, welded top saddle, and factory-mounted fixed glass spider fittings. For top-rail attachment screws specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without additional glass attachment fittings; glass fittings must be ordered separately.
Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are representative; actual colors may vary with monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL P6 Spider Post Railing Kit (P642LPS) or contact CRL for custom finishes and post heights.
