CRL PTH Long Polished Stainless Glass-Mounted Patch Lock Keeper
CRL PTH Long Polished Stainless Glass-Mounted Patch Lock Keeper
Regular price
$102.60 CAD
Regular price
Sale price
$102.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH314PS
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glass Mounting Holes Diameter
1-7/8 in. (48 mm)
Glass Mounting Holes Required
Yes
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)

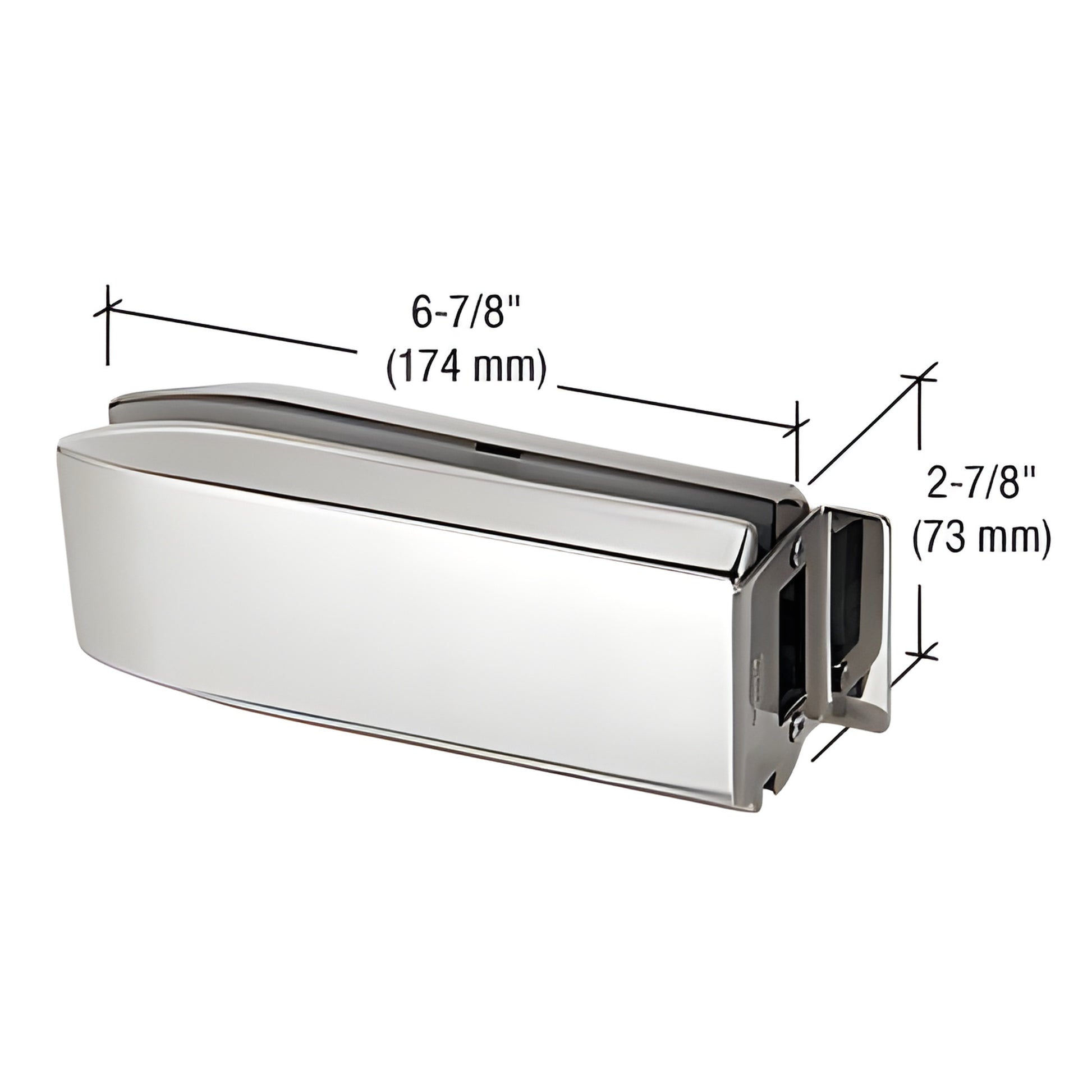

Height
2-7/8 in. (73 mm)
Length
6-7/8 in. (175 mm)
Series
PTH
Overview
- For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Stamped body with finished cover plates for a clean, durable appearance
- Works with either latch above on double-door installations
The CRL PTH311 Glass Mounted Latch (SKU PTH314PS) is designed for keyed glass door security on 3/8" and 1/2" tempered glass. It ships assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors when a PTH314 glass-mounted latch keeper is not installed. For inswing doors using the PTH314 keeper, use the EC3 extended-length keyed cylinder.
NOTE: On double-door applications, secure the door with the keeper using a bottom lock to hold the inactive leaf in place.
GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in the glass.
COMES WITH:
EC3 and EC4 series cylinder/thumbturn with 3 keys, template, and instructions.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for commercial and storefront glass doors, the PTH311/PTH314 combination provides secure, keyed locking for monolithic tempered glass. Order SKU PTH314PS or contact CRL Customer Service to confirm glass requirements and lead times.
