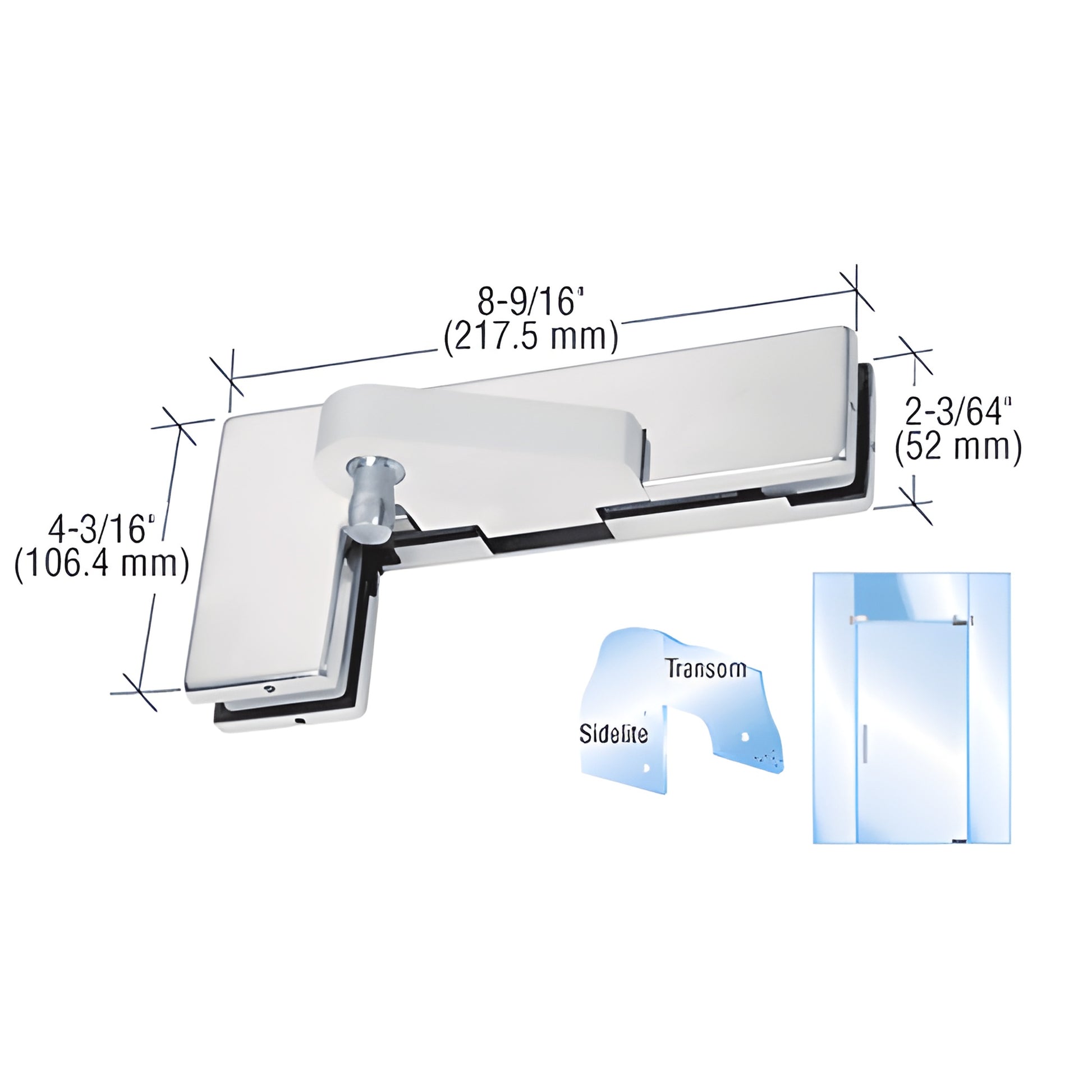

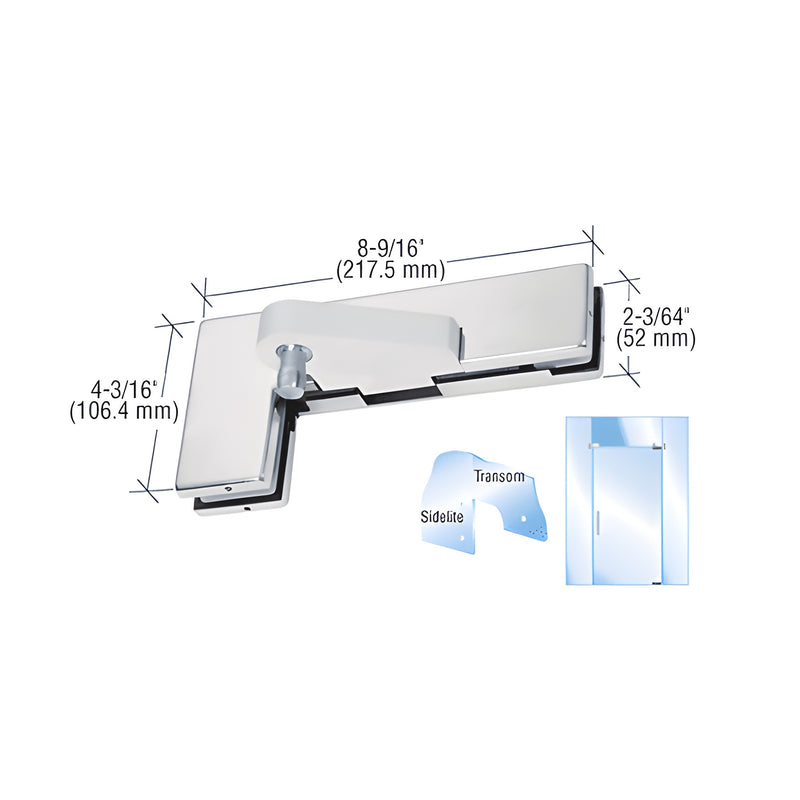

CRL Polished Stainless Right-Offset Transom/Sidelite Patch Fitting
CRL Polished Stainless Right-Offset Transom/Sidelite Patch Fitting
Regular price
$187.02 CAD
Regular price
Sale price
$187.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0PF40RPS
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Mounting Type
Sidelite
Series
Offset
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Allows for 180° door swing
- Left and right handed configurations
- Also works with CRL 3/4" (19 mm) offset arm bottom door rails with no alterations
The CRL Sidelite Mounted Transom Offset Patch Fitting (SKU: 0PF40RPS) is engineered for frameless glass entrance systems and sidelite-mounted transom installations. Designed to accept 3/8" or 1/2" glass, this offset patch fitting supports a full 180° glass door swing and fits right- or left-hand applications. Compatible with other offset patch fittings and CRL 3/4" (19 mm) offset arm bottom door rails with no modifications required. Available in brushed or polished stainless steel finishes for durable, architectural-grade appearance.
INCLUDES:
- High density cast body
- Cover plates (finish of your choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and instructions
SPECIFICATIONS:
For Use With:
- 0PF20R and 0PF20L
- Top door patches
Glass Fabrication Required:
Three 3/4" (19 mm) diameter holes and corner notch
Comes With: Template and instructions
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Optimize your frameless glass door installation with this sidelite-mounted transom offset patch fitting—order SKU 0PF40RPS today.
