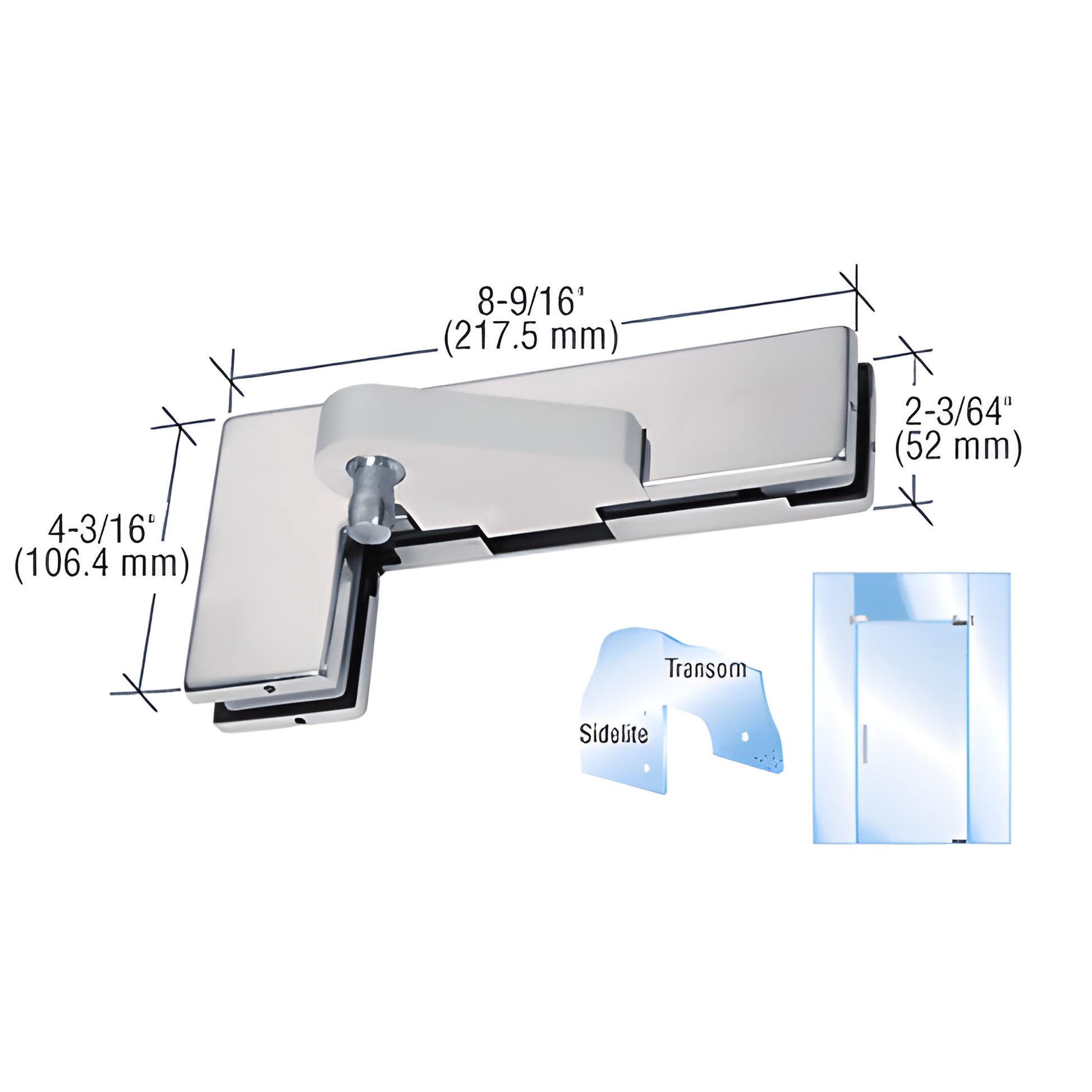

CRL Brushed Stainless Right-Offset Sidelite Transom Patch Fitting
CRL Brushed Stainless Right-Offset Sidelite Transom Patch Fitting
Regular price
$187.02 CAD
Regular price
Sale price
$187.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0PF40RBS
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Mounting Type
Sidelite
Series
Offset
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Allows 180º door swing
- Left- and right-handed configurations
- Compatible with CRL 3/4" (19 mm) offset arm bottom door rails with no alterations
The CRL Sidelite Mounted Transom Offset Patch Fitting is engineered for sidelite and transom glass door applications and designed to work with offset arm bottom door rails and other offset patch fittings. It permits a full 180º door swing and is available for left- or right-handed installations in brushed or polished stainless steel finishes—ideal for frameless glass door systems requiring durable, high-density cast hardware.
INCLUDES:
- High-density cast body
- Cover plates in your choice of finish (brushed or polished stainless steel)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and installation instructions
SPECIFICATIONS:
For use with:
- 0PF20R and 0PF20L top patches
- Top door patches in similar systems
Glass fabrication required:
- Three 3/4" (19 mm) diameter holes and corner notch
SKU: 0PF40RBS
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL 0PF40RBS sidelite mounted transom offset patch fitting today to complete your frameless glass door installation.
