- Kit for 3/4" (19 mm) Glass Doors
- Use Monolithic Tempered Glass
- Reduces Drafts and Protects the Edge of the Glass
- Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
- Five Cladded Architectural Finishes

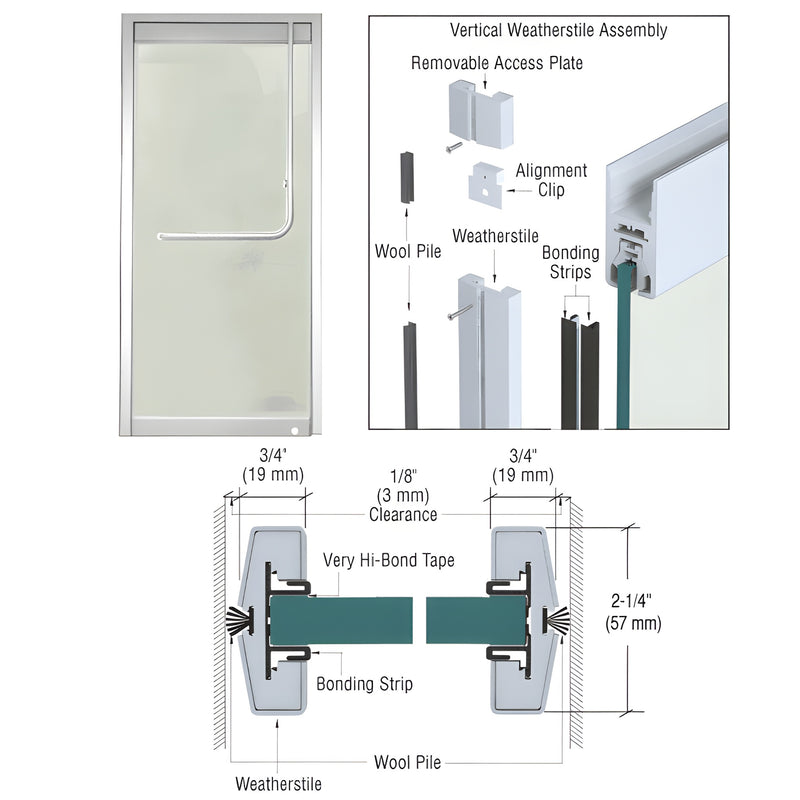

CRL Vertical Weatherstile Kits (SKU: W34PSS) include two 117" (2.97 m) lengths of Weatherstile with wool pile weatherstrip, one 120" (3.05 m) black EPDM filler strip (for double door applications), four 117" (2.97 m) lengths of bonding strips with Very Hi-Bond tape, four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.
CRL Vertical Weatherstile Kits have been redesigned for newly fabricated single or double doors using either 1/2" (12 mm) or 3/4" (19 mm) tempered glass. These narrow vertical weatherstiles reduce drafts and protect the glass edge while maintaining an all-glass aesthetic—ideal for commercial storefronts and glass door assemblies. Five cladded architectural finishes help match adjacent metal door frames and architectural hardware.
Installation uses internal bonding strips with Very Hi-Bond tape for a secure, accurate fit without waiting for adhesive cure—faster and cleaner than traditional glue-on weatherstiles.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre-installed door rails.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Order the CRL Vertical Weatherstile Kit (W34PSS) today to improve thermal performance and protect glass edges—contact CRL Customer Service to place your order or request custom lengths.
