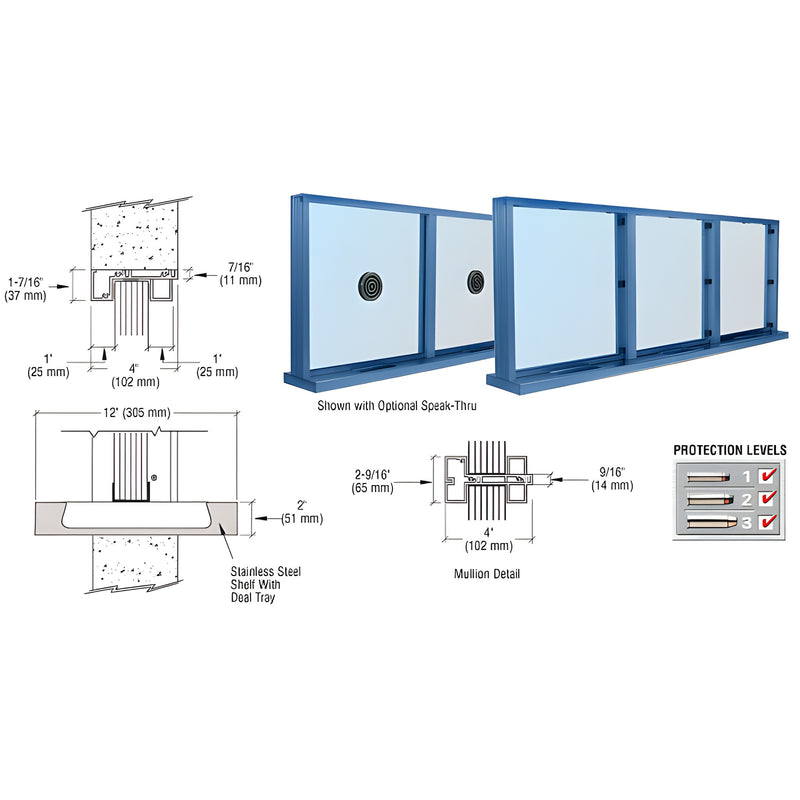

- Narrow inset Multi‑Lite frame with shelf and deal tray — designed for windows joined together to form multiple-position workstations (SKU: N1SWP)
- Drawings and specifications available online
- Powder coat painted finish — you specify RAL or custom KYNAR® color
CRL Multi‑Lite Narrow Inset Frame Windows are ideal for walk-up ticket offices and service counters in arenas, stadiums, movie theaters, museums, and other public venues requiring multiple-position workstations. Configurable window options include speak-thrus, deal trays, stainless-steel shelves, drop-downs, and returns. The Narrow Inset Frame installs into walls at least 4" (102 mm) thick. Contact CRL Technical Sales for detailed support and custom configurations.
SPECIFICATIONS:
Materials: Glazing options — 1/4" (6 mm) glass; 1-5/16" (33 mm) Level 1 glass; 1-1/4" (32 mm) Level 1 acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 glass; 1-3/16" (30 mm) Level 3 glass-clad polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf — stainless steel.
Finishes: Frame — satin anodized, Duranodic bronze, RAL powder paint colors, or custom KYNAR® paint; Shelf — brushed stainless steel #4 finish.
Deal Tray: Available with Level 1 or Level 3 protection.
Instructions Included
Most shipping weights are approximate and have not been verified. If exact shipping weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary with monitor settings.
Need drawings, pricing, or a custom finish for your ticket counter or service window project? Contact CRL Technical Sales or Customer Service to get started.
